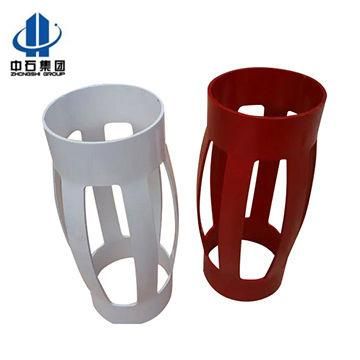

Fully Integrated Slip on Single Piece Bow Spring Centralizer
Puyang Zhongshi Group Co., Ltd.- Certification：ISO 9001:2000, ISO 9001:2008
- Surface Treatment：Polishing
- Centralizer Type：Elastic
- Structure：Automatic Reversing
- Material：65mn Steel
- Type：Centralizer
Base Info
- Model NO.：4 1,2"-20"
- Sample：Available
- Spec：7 Inch & 9 5,8 Inch& 13 3,8 Inch
- Drawing：Available
- Color：Red,Orange,Black
- Height：Based on Request
- ODM：Available
- Bows：6PCS
- Length：360mm
- Standard：API 10d
- Thickness：4mm
- Transport Package：Wood Cases
- Specification：4 1,2"-20"
- Trademark：zhongshi
- Origin：Henan, China
- HS Code：843143100
- Production Capacity：10000PCS,Month
Description
Specifications
In-Dia(mm)
Wall
Thickness
(mm)
Height(mm)
Total height(mm)
Largest Dia(mm)
Spring Number
5-1/2"*8-1/2"
142-148
3-5
55
650
225
5
7"*9-5/8"
181-186
3-5
55
650
255
6
7"*8-1/2"
181-186
3-5
55
650
235
6
8-5/8"*12-1/4"
223-228
3-5
55
650
330
8
9-5/8"*12-1/4"
250-255
3-5
55
650
330
8
10-3/4"*12-1/4"
274-276
3-5
55
650
330
9
13-3/8"*17-1/2"
342-347
3-5
55
650
450
11
18-5/8"*24
476
3-5
55
600
610
12
20"*26
510
3-5
55
600
660
12
These are generally shipped in assembled condition only . This Centralizers undergos a special process of rust prevention before powder coating.
