• Specifications：60 to 300mm
• Advantage：Durable
• Name：Pump Piston Ruber
• Package：Standard
• MOQ：20
• Port：Tianjin
• Model：F Series,3nb Series,etc
• Theory：Centrifugal Pump
• Transport Package：Wooden Box and Sea Shipment
• Specification：standard
• Trademark：xinhuafa
• Origin：Cn
• HS Code：841391000
• Production Capacity：50000sets,Per Year

-40~100 °C

5000PSI(35Mpa)

Not Bad

Water base

-40~210 °F

polyurethane

-40~85 °C

5000PSI(35Mpa)

Excellent

Water base & Oil base

-40~185 °F

HNBR

-50~150 °C

7500PSI(52Mpa)

Good

Water base & Oil base

-58~300 °F

Viton

-15~250 °C

7500PSI(52Mpa)

Not Bad

Oil base

The piston rubber is made from specially formulated compounds which are resistant to the effects of heat,oil and water.
The multi-ply fabric reinforced backings used in the production of the piston rubbers provide positive, wear resistant seals. High tensile strength, resistance to chemicals, hydrocarbic.

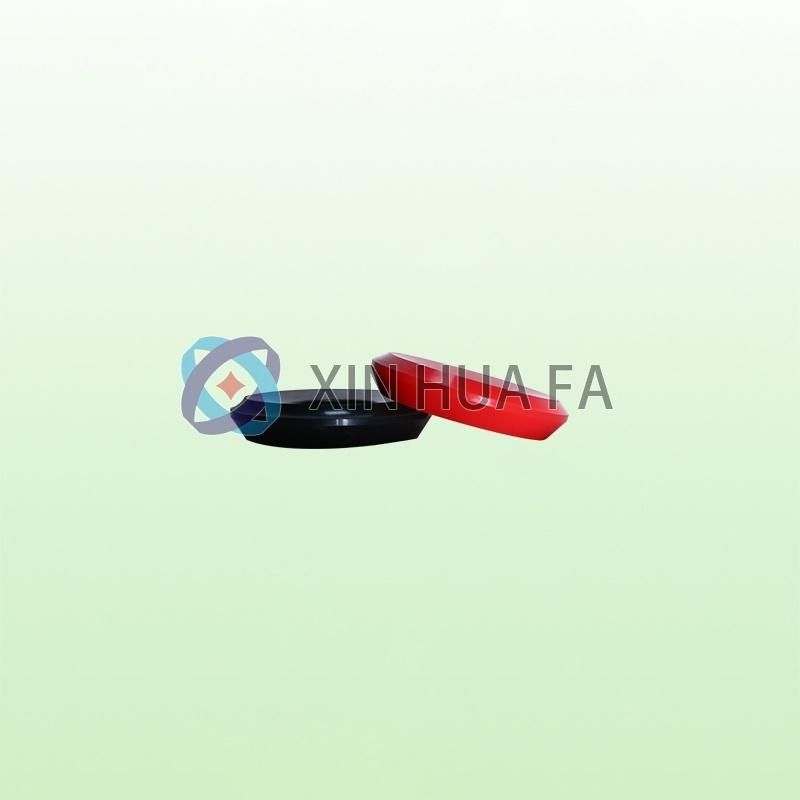

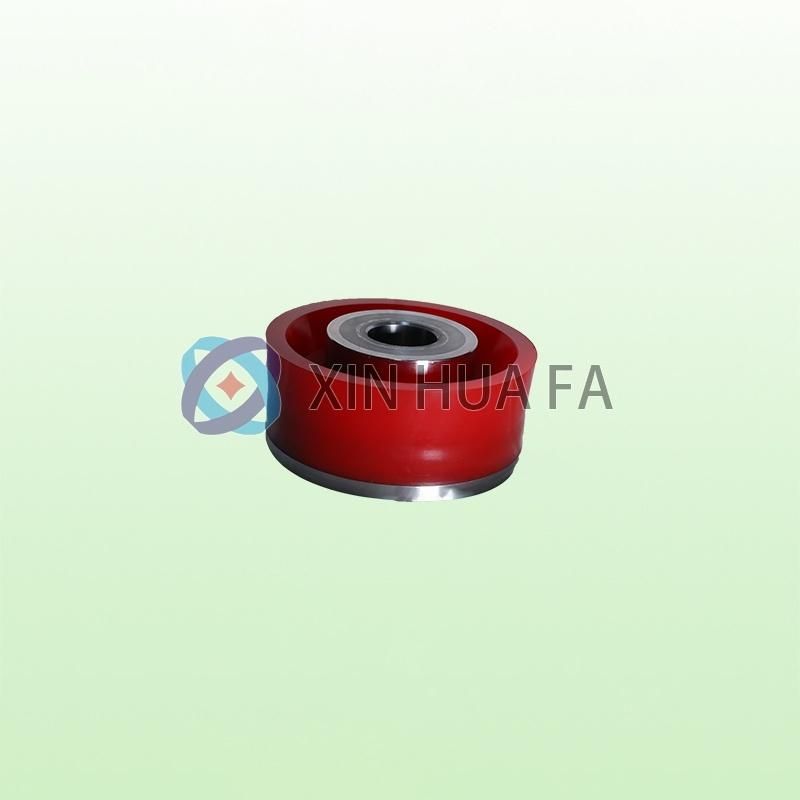

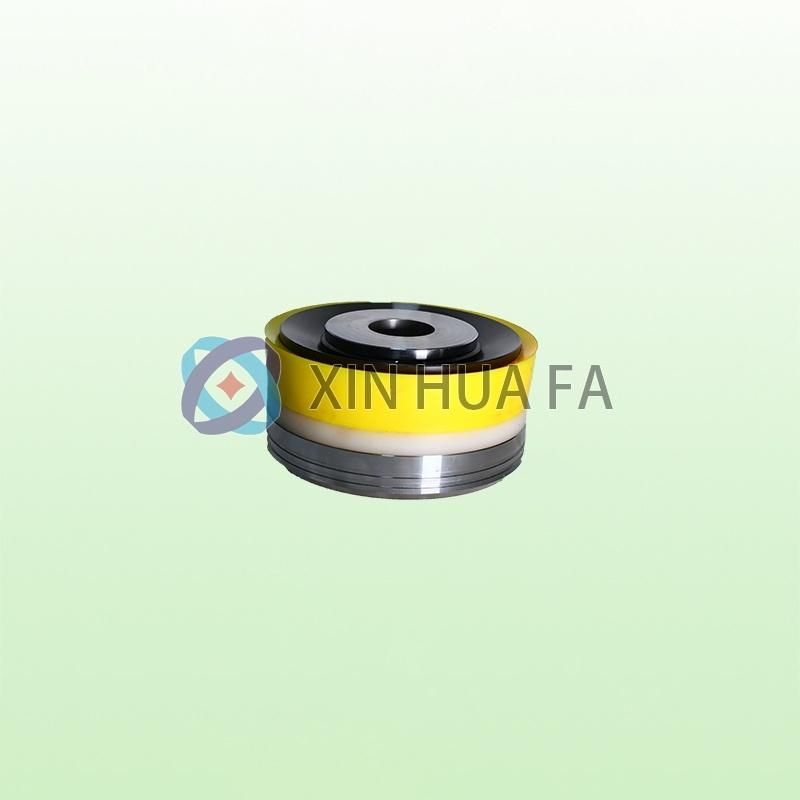

1. Integrated Type Vulcanized Rubber Piston Cup
The integrated type vulcanized rubber piston cup is produced by vulcanizing the nitrile butadiene rubber or the PU to the made-up core, without troublesome fixation with pressing plate and circlip. Apart from high pressure jet drilling, this mud pump element can be used on ceramic cylinder sleeve.

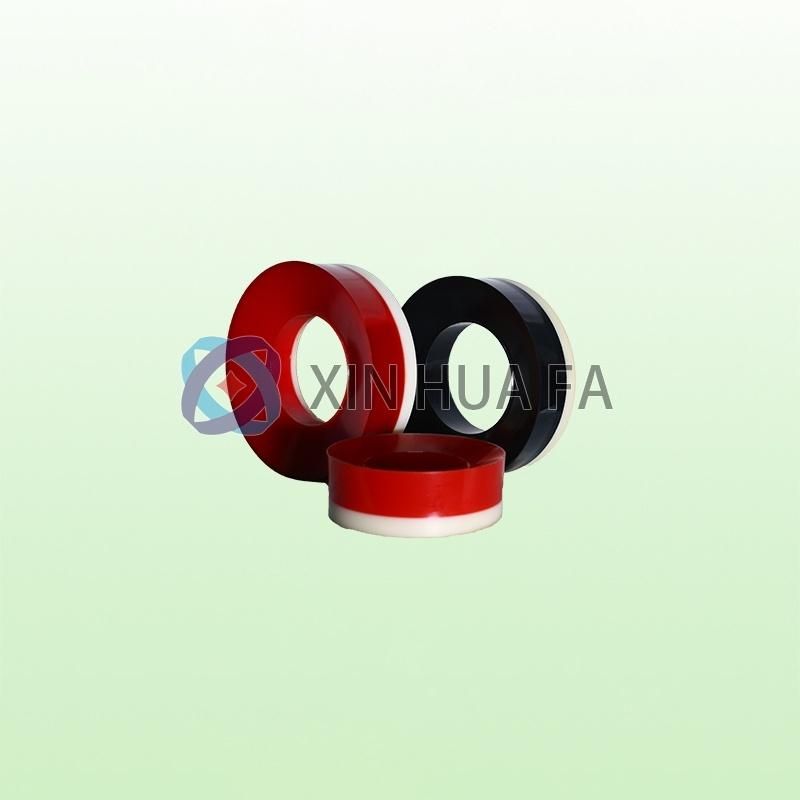

2. Black Rubber Piston Cup
The black rubber piston cup is manufactured with special processing technology. Installed with our product, the mud pump can afford the maximum rated pressure. Employing superior alloy steel as raw material, the rubber piston cup is processed with heat treatment technology for good sturdiness and durability. The operating pressure can be from 1500 to 2500lb per square inch.

3. Blue Rubber Piston Cup
Particularly suitable for the application in severe environment, the blue rubber piston cup has good resistance to abrasion and high tensile strength. The operating pressure is up to 7500lb per square inch.

                                  The service life of main wearing parts

No.

Name of main wearing parts

Service Life (hours)

1

  Liner

Single metal

>300

Bi-metal

>800

Ceramic

>4000

2

  Piston

cup

>200

core

>600

clamp

>1200

Live SaiKa spring

>600

3

  Piston rod nut

>1000

4

  Pressure valve device

Valve

>600

Valve Seats

>600

Valve Nut

>1800

Valve Rubber

>300

5

  Seal ring

>300

6

  Seal gum mat

>2000

Features, Advantages and Benefits:

• The forged, solid valve body construction, of this valve, with thick, rigid seat, provides durability at high pressures.
• The single piece, solid body construction of this valve provides the strength and rigidity needed for high pressure drilling operations in the 5,000 to 7,500 psi (34.5 to 51.7MPa) range
• The snap on, polyurethane insert on standard replaceable. A non-replaceable bonded insert upgrade is available. Various insert styles and materials are available to suit any drilling condition.
• Standard polyurethane inserts are good for 170° to 180°F (77° to 82°C) drilling temperatures. The high temperature is specified for all drilling operations up to and exceeding 300°F/7500psi, suitable for water or oil-based muds. Shelf life of polyurethane insert is 5 years.

Company profile

Hebel Xinhuafa Petroleum Machinery Co. LTD was established in 2006,with 5000m2 plant.The company focuses on R&D of mud pump fittings and several R&D results were horned with awards as well as patented for invention. The company is engaged in product design, manufacturing and service on all the quality oilfield replacement parts, including mud pump fluid end parts including Fluid end modules, liners, pistons, valves,&seats, extension rods, piston rods, valve covers etc.

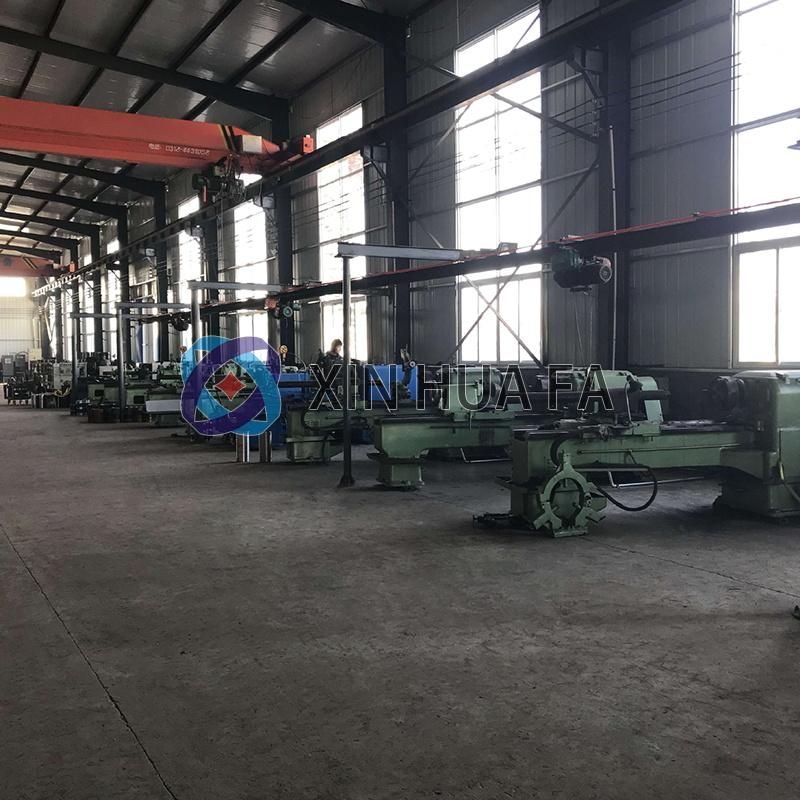

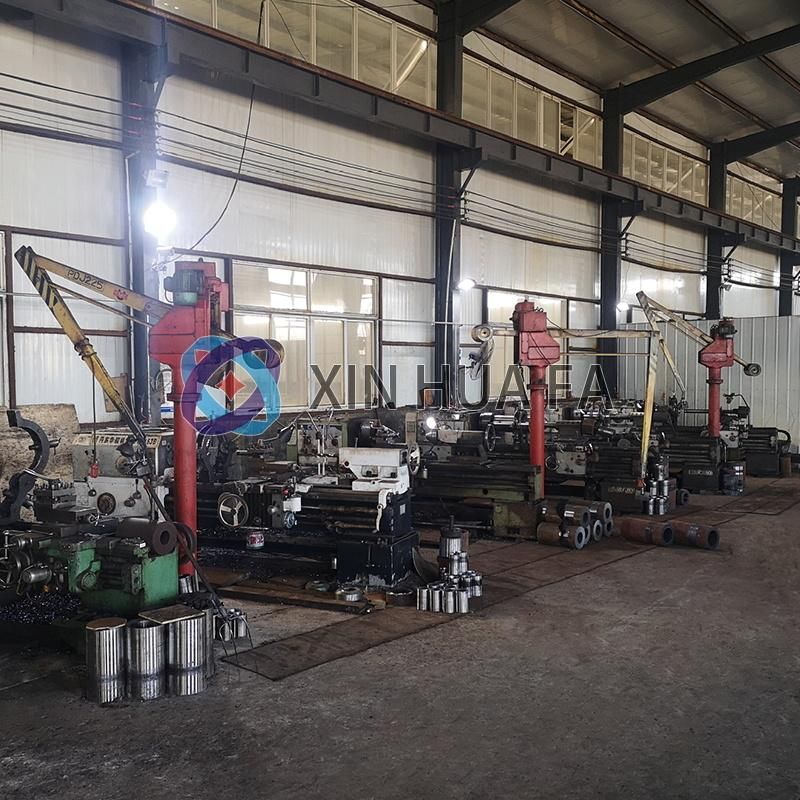

The company holds a professional technical team and is equipped with advanced machineries,improving the technical skills and updating product quality,
Our products are certified by ISO9001 quality control. We supply products not only our oilfields company of domestic, but also dozens of countries all over the world, such as USA, Canada, Indonesia and Iran. With several years' persistence, we are widely accepted as a professional supplier of high quality mud pump cylinder liners and other parts in fluid end modules.





If interested,please contact me:
