Jyq Series Liquid -Gas Separator Solid Control System
Shandong Beyond Petroleum Equipment Co., Ltd.- After-sales Service：1year
- Warranty：1year
- Certification：ISO 9001:2000
- Power Source：Hydraulic
- Operation Pressure：Atmospheric Pressure
- Material：Stainless Steel
Base Info
- Model NO.：JYQ Series
- Type：Liquid Gas Separator
- Model：Jyq-800-1
- Main Body Diameter(mm)：800
- Discharge Capacity(M3/H)：260
- Inlet Diameter(mm)：125,150
- Outlet Diameter (mm)：200,250
- Exhaust Diameter(mm)：200
- Working Pressure(MPa)：1
- Overall Dimension(mm)：1600*1600*5762
- Transport Package：Export Packing
- Specification：2100kg
- Trademark：BEYOND
- Origin：China
Description

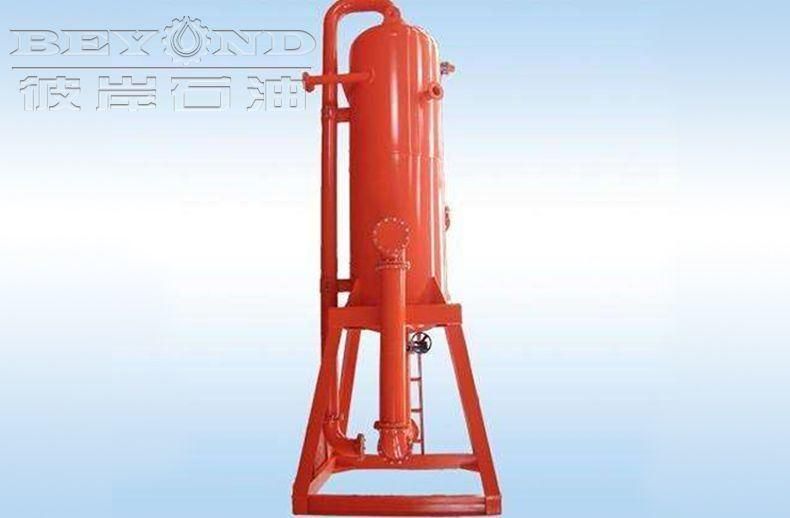

Liquid-gas separator of drilling liquid is solids control equipment used to provide pre-degassing to gas cut drilling liquid. It is mainly used to clear away big bubbles of 3- 25mm. The liquid gas separator adopts bottom-sealing structure. It features simple structure, reasonable flow, big disposal capacity, high degassing efficiency, convenient transportation, installation and service, etc.
