API 8c Type Cdz 18 Degree Drill Pipe Elevator for Oil Drilling

Dongying Oilman Machinery Equipment Co., Ltd.
  • After-sales Service：Online Technical Support
  • Warranty：One Year After Delivery
  • Manufacturing Process：Forging
  • Surface Treatment：Anti-Corrosion Painting
  • Operation Pressure：Atmospheric Pressure
  • Material：Alloy

Base Info

  • Model NO.：CDZ Type Drill Pipe Elevator
  • Product Name：API 8c Type Cdz 18 Degree Drill Pipe Elevator
  • Keywords：Drill Pipe Elevator
  • Capacity：150-500 Tons
  • Drill Pipe Size：2 3,8"-5-1,2"
  • Standard：API 8c
  • Transport Package：Export Wooden Case
  • Specification：CDZ Type Drill Pipe Elevator
  • Trademark：OilMan
  • Origin：China
  • HS Code：84314310
  • Production Capacity：300 PCS Per Month

Description

Basic Info.

Model NO. CDZ Type Drill Pipe Elevator Product Name API 8c Type Cdz 18 Degree Drill Pipe Elevator Keywords Drill Pipe Elevator Capacity 150-500 Tons Drill Pipe Size 2 3/8"-5-1/2" Standard API 8c Transport Package Export Wooden Case Specification CDZ Type Drill Pipe Elevator Trademark OilMan Origin China HS Code 84314310 Production Capacity 300 PCS Per Month

Product Description

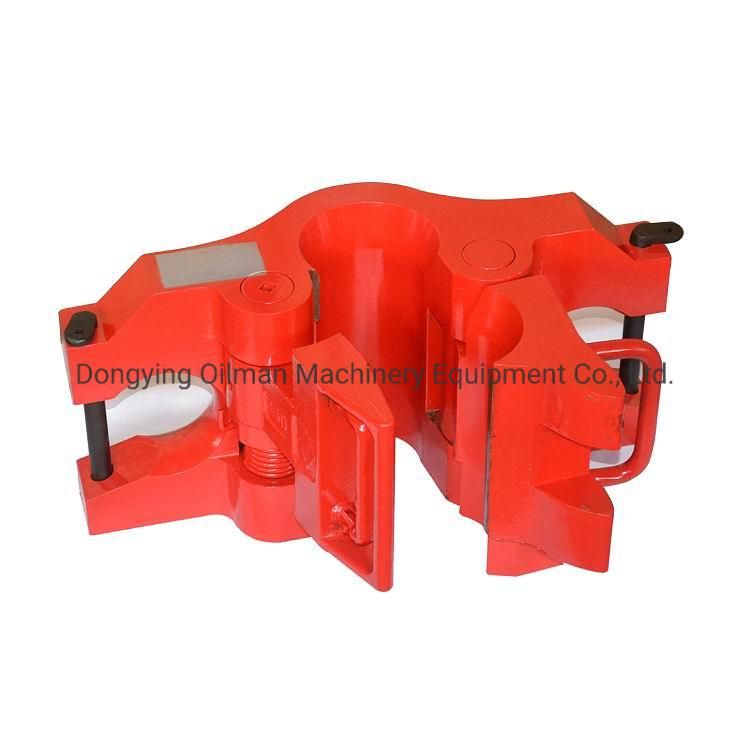

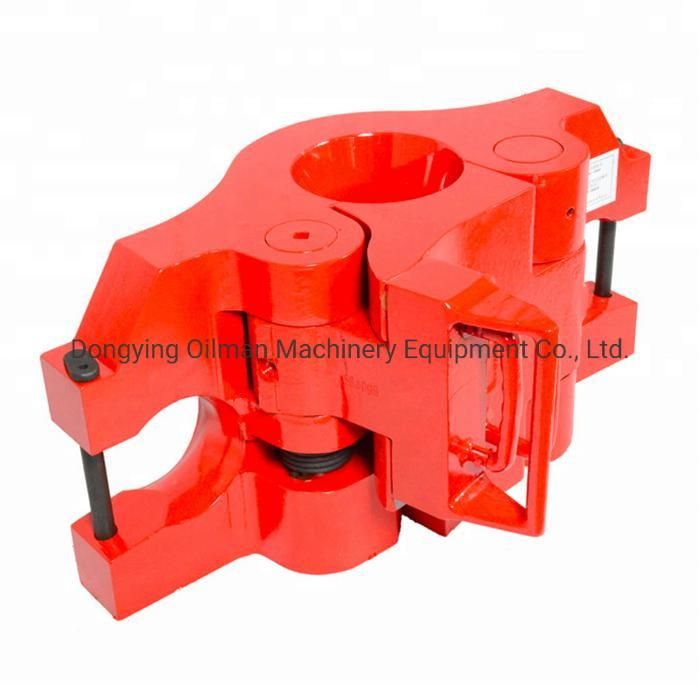

API 8C Type CDZ 18 Degree Drill Pipe Elevator for Oil Drilling


CDZ drilling pipe elevator is mainly used in the holding and hoisting of drilling pipe with 18 degree taper and tools in oil and natural gas drilling, well construction.CDZ drill pipe elevators are forged from high quality alloy steel, heat-treated, and NDT tested. The rated loads range from 150t (1350kN) to 500t (4500kN) and cover pipe sizes from 2.3/8" to 5.1/2" O.D .

 Model Number CDZ drill pipe elevator
 Machine Type Drilling Tool
 Certification API
 Material Carbon Steel
 Processing Type Forging
 Use Well Drilling
 Load 150~500t
 Color Red

ModelSize(in)Rated Cap.(short tons)
CDZ -1502.3/8-5.1/2150
CDZ -2502.3/8-5.1/2250
CDZ -3502.7/8-5.1/2350
CDZ -50031/2-51/2500

We also can supply all petroleum handling tools including : B  ,SB , DB  ,SDD , LF , TC, Workover , WWC , WWB  ,AAX type manual tong ,Q13 3/8-8 casing , Extended casing tong , manual tong , Elevator Type DD, Elevator Type DDZ,Elevators Type CDZ, Elevator Type TA . Elevators Type CD , Elevator Type SX ,Elevators Type SLX. Y Series Slip Type Elevators elevator, slip, Spider, Bushing, manual tong, Elevator links products.

API 8c Type Cdz 18 Degree Drill Pipe Elevator for Oil DrillingAPI 8c Type Cdz 18 Degree Drill Pipe Elevator for Oil Drilling

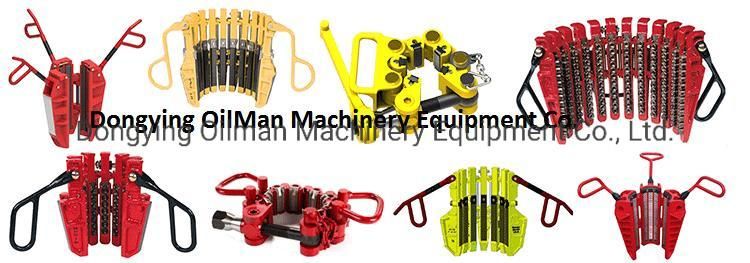

Our Handling Tool Products:

API 8c Type Cdz 18 Degree Drill Pipe Elevator for Oil Drilling
Handling tools play a major part in modern drilling operation. They are used for suspending, moving and rotating tubulars in and round the center on the drill floor. The tools ranges from slips, elevators, manual tongs, power tongs, safety clamps, elevator links& bails, spinners, wrenches, etc. Handling tools in our factory are all manufactured to API 7K, API 8A and API 8C standard, with strict quality control and inspection.

Company Information:

About us

Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.



Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
