2ton Piston-Type Air Winch Remote Control Boat Lift Winch
Yantai Petroleum Machinery Co., Ltd.- Certification:CE, ISO 9001:2000, ISO 9001:2008, API ABS Dnv CCS
- Power Source:Pneumatic
- Operation Pressure:Atmospheric Pressure
- Applicable Medium:Air
- Structure:Horizontal
- Material:Cast Steel
Base Info
- Model NO.:JQHS
- Application:Mine, Oilfield, Construction, Engineer
- Capacity:20kn
- Certicifications:API,BV,CCS,ISO9001-2008
- Direction:Right and Left
- Colour:Follow Customers′ Need
- Model Number:Jqhs20*12

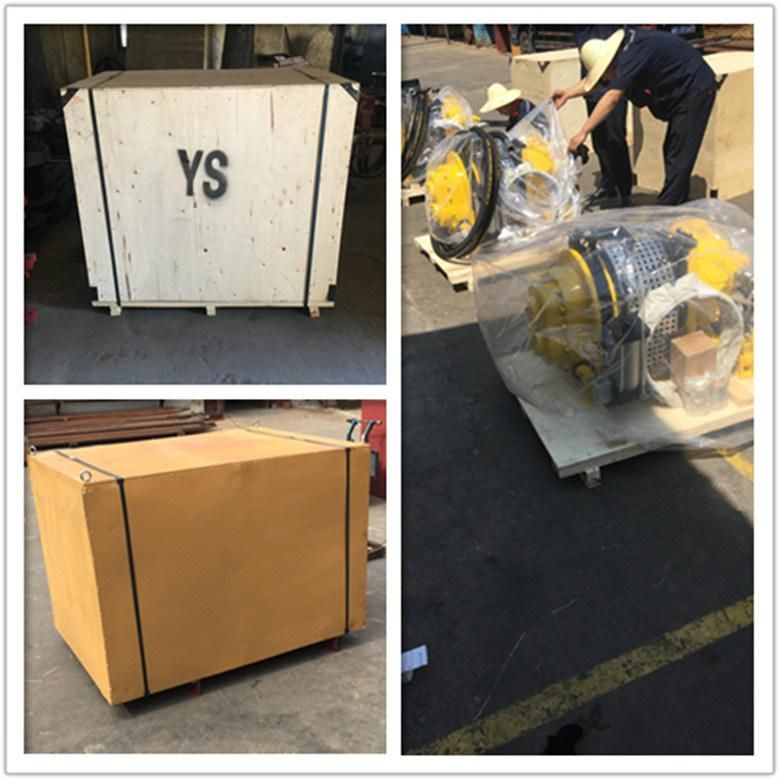

- Transport Package:Iron Boxes or Hard Wooden Cases
- Specification:API,CCS,ISO,CE certifications
- Trademark:YS Safe Power
- Origin:Yantai City, Shandong Province, China
- HS Code:842539
- Production Capacity:1000sets Per Month
Description
ItemsParameters Messurement Unit Rated Working Pressure 0.6-0.7 MPa Rated Full Force 10 KN Rated Cable Speed 24 m/min
Piston Air Motor Model TMH4A -- Rated Power 4 KW Air Consumption 130 L/s
Drum Diameter 175 mm Width 198 mm Wheel Rim Diameter 290 mm Cable Diameter 8 mm Cable Storage 120 m Air Inlet Diameter 3/4 inch Brake Type Auto-brake Configuration ( Length* Width* Height) ) 857mm*342mm*440mm Weight 175 KG Remote- control Distance 6-15m
Security:
Considering security, this air winch is specially designed with hand brake air brake.
Application Places:
This winch is widely used for drilling platform, marines, mingings, engineering sites, etc. To pull heavy cargo.
Why choose us:
1. Equipped with cylinder air brake, which enables the winch automatically in brake when stops.
2. Variable speed control, flexible to perform clockwise and anti-clockwise rotation.
3. Compact in size, light weight, portable to move and easy to install.
4. High practicability with anti-explosive function, especially stable and reliable in inflammable, explosive, wet, damp, and other extremely working environments.
5. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily.
6. Reliable operation with little noise with muffler.
7. Low maintenance relieves your anxiety and assures you to use it freely.
8. Especially fit for hauling and lifting drilling pipes on the second platform of oilfields.
9. This is a kind of Air winches are available from 0.5ton to 10 ton capacities. Pull Force can be tailor-made to your requirements.
Piston Air Motor
Drum
