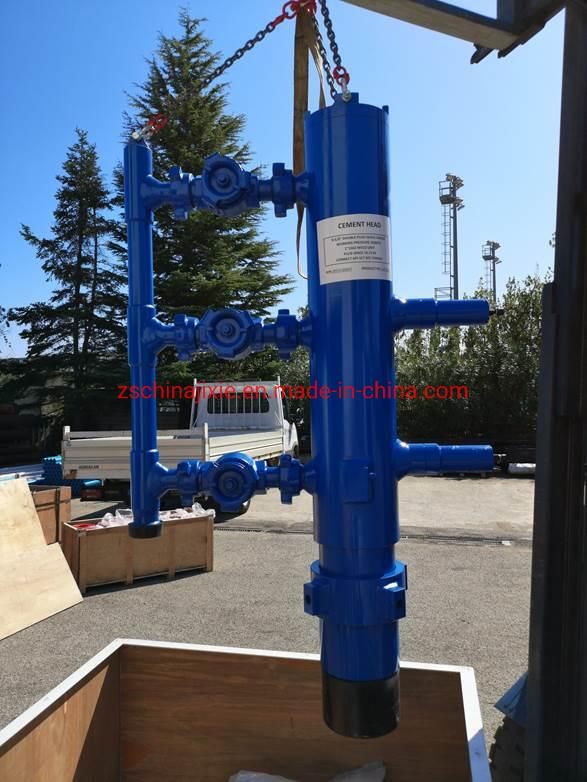

API Certificated Single Plug Cement Head, 9 5/8" Cement Head
Puyang Zhongshi Group Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Certification：API
- Surface Treatment：Spray-Paint
- Centralizer Type：Cementing Head
- Structure：Weld
Base Info
- Model NO.：ch
- Material：Cast Steel
- Type：Cementing Head
- Transport Package：Wooden Case
- Specification：as requested
- Trademark：zhongshi
- Origin：Henan, China
- Production Capacity：300
Description
Specification (in)
13-3/8
10-3/4
9-5/8
7-5/8
7
5-1/2
Overall length (mm)
1,959
1,973
1,895
1,605
1,605
1,523
Rated pressure (MPa)
35
50
Manifold connection
2" Union
I.D. of plug container (mm)
320
250
225
176
160
125
Length of plug container (mm)
685
625
550
480
480
430
Technical Specifications of Double-plug Cementing Head
Specification (in)
13-3/8
10-3/4
9-5/8
7-5/8
7
5-1/2
Overall Length (mm)
2,770
2,290*
2,723
2,283*
2,606
2,165*
2,257*
2,177*
2,045*
Rated pressure (MPa)
35
50
Manifold connection
2" Union
I.D. of plug container (mm)
320
250
225
176
160
125
