Jzcq Series 360-180 Vacuum Degasser

Shandong Beyond Petroleum Equipment Co., Ltd.

After-sales Service：Video Technical Support, Online Support, Spare PAR
Warranty：1 Year
Certification：CE, ISO 9001:2000, ISO 9001:2008
Mesh Shape：Circular
Layer：Single Layer
Material：Steel

Base Info

Model NO.：JZCQ 360-180
Type：Linear
Discharge Capacity：300~360m3,H
Vacuum Degree：400~550mmhg
Efficiency：95%
Main Motor Power：22kw
Vacuum Pump Motor Power：4 Kw,5.5 Kw(60Hz)
Inlet Diameter：6"
Outlet Diameter：8"
Transport Package：Wood Box
Specification：2310*1136*2085
Trademark：Beyond
Origin：China
Production Capacity：100PCS,Month

Description

JZCQ Series Vacuum DegasserModelJZCQ-240JZCQ360-180JZCQ-300Discharge capacity200~260m³/h300~360m³/h280~320m³/h Vacuum degree280~400mmHg400~550mmHg380~500mmHgEfficiency≥95%≥95%≥95%Main motor power15kW22kW Vacuum pump motor power
2.2 kW/3 kW(60Hz)
4 kW/5.5 kW(60Hz)
3 kW/4 kW(60Hz)Inlet diameter5"6"8"Outlet diameter6"8"8" Jzcq Series 360-180 Vacuum Degasser

Jzcq Series 360-180 Vacuum Degasser

Jzcq Series 360-180 Vacuum Degasser

Jzcq Series 360-180 Vacuum Degasser

Jzcq Series 360-180 Vacuum Degasser

Category

Mud Circulating System

Oilfield Shale Shaker

Other Petroleum Equipments & Machinery

Petroleum Equipment & Machinery

Petroleum Machinery Parts

Recommended

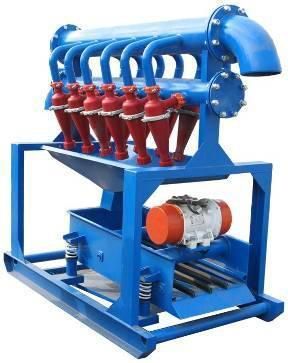

Jzqj Series 100*12 Desilter for Oilfield Control System
ModelJZQJ100×10JZQJ100×12JZQJ100×14JZQJ100×16Hydrocyclone diameter100mm100mm100mm100mmWorking pressure0.2~0.45MPa0.2~0.45MPa0.2~0.45MPa0.2~0.45MPaCapacity120-160 m3/h160-200 m3/h200-220 m3/h200-240 m3/hScreen size1240×585 mm1240×585 mm1240×585 mm1240×5
Jzqj Series 100*10 Desilter for Oilfield Control System
ModelJZQJ100×10JZQJ100×12JZQJ100×14JZQJ100×16Hydrocyclone diameter100mm100mm100mm100mmWorking pressure0.2~0.45MPa0.2~0.45MPa0.2~0.45MPa0.2~0.45MPaCapacity120-160 m3/h160-200 m3/h200-220 m3/h200-240 m3/hScreen size1240×585 mm1240×585 mm1240×585 mm1240×5

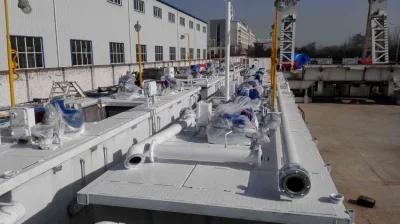

API Standard Solid Control System Drilling Mud Fluid Container Tank
With the zinc-coated steel grating,the tank level isfine-looking, portable,corrosion-resistant,and so on. The tank bodiesare connected by pneumatic tyre unions and glass steeltubes,so they have the advantages of fine-looking,installation easily,reliable seel,and so on.

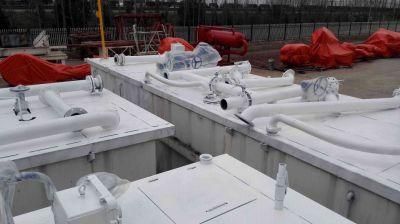

API Standard Drilling Mud Storage Pit Mixing Tank
With the zinc-coated steel grating,the tank level isfine-looking, portable,corrosion-resistant,and so on. The tank bodiesare connected by pneumatic tyre unions and glass steeltubes,so they have the advantages of fine-looking,installation easily,reliable seel,and so on.

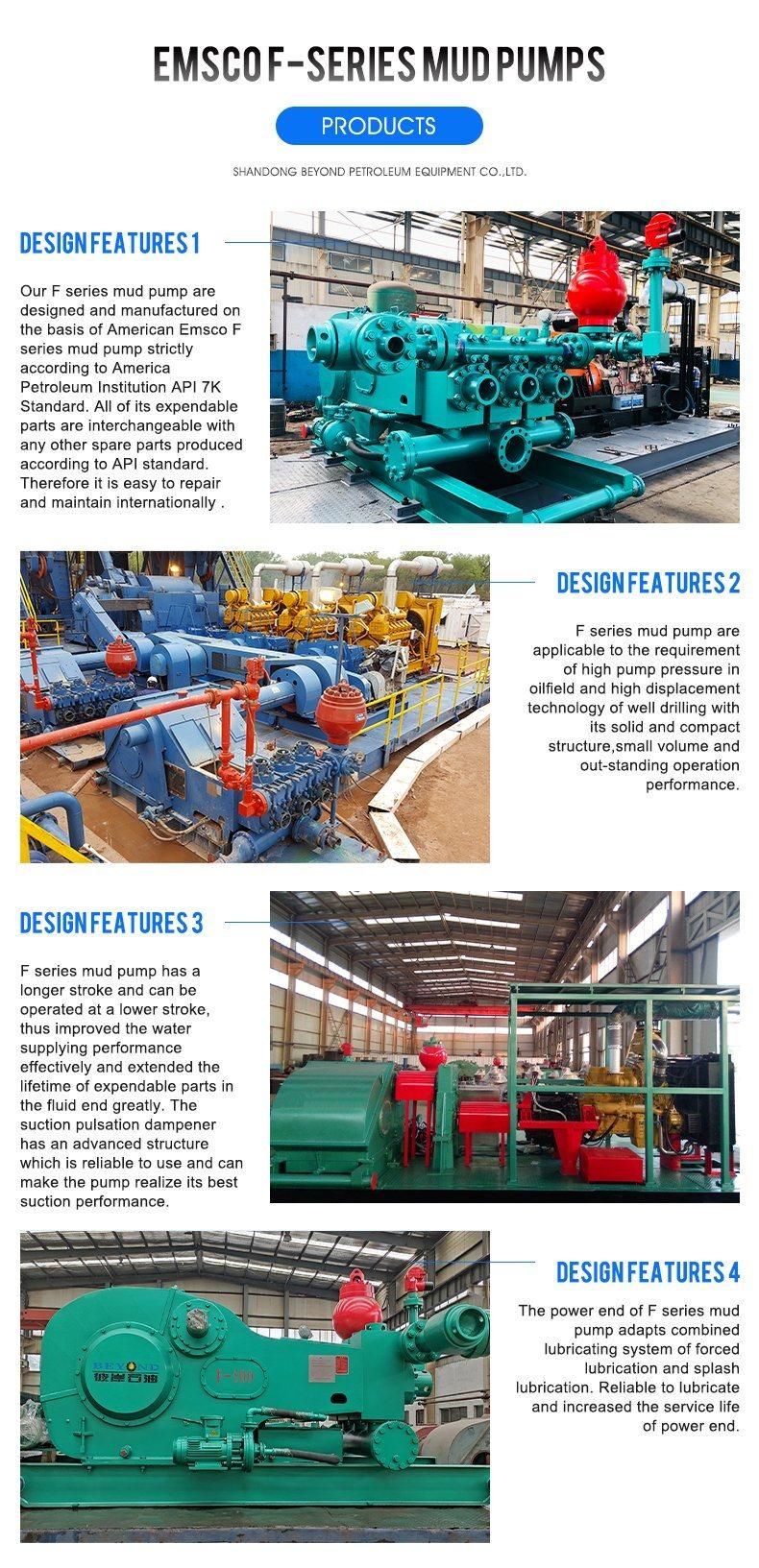

3nb Mud Pump Hydraulic Piston Mud Pump for Well Drilling
Overview Product DescriptionCertificationsOur AdvantagesCompany ProfileShandong Beyond Petroleum Equipment Co., Ltd, hereinafter referred to as "Beyond", was established in year 2016 and certified by ISO9001. One of its main business scope is to supply reciprocating type

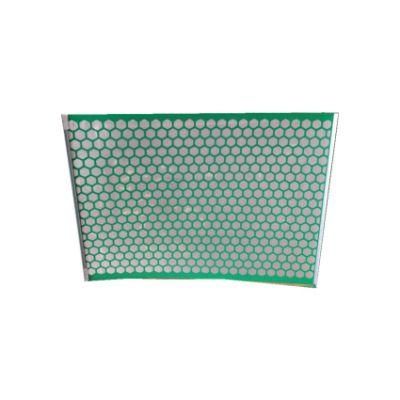

High Quality Vibration Screen Mesh for Shale Shaker
Plate type vibration screen is one of the most frequent vibrationscreen,and be used in all kind of drilling operation.The screen is made of tow or three stainless steelmeshes and metal backing with holes.We have a wealth of experience and mature technology in production,can also makecreens according

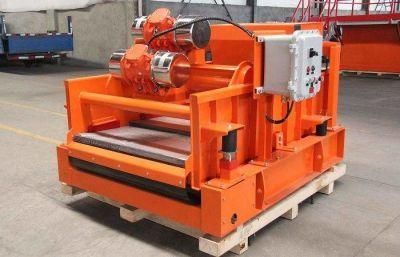

Jzs 270-4p Elliptical Motion Shale Shaker
1200 kg

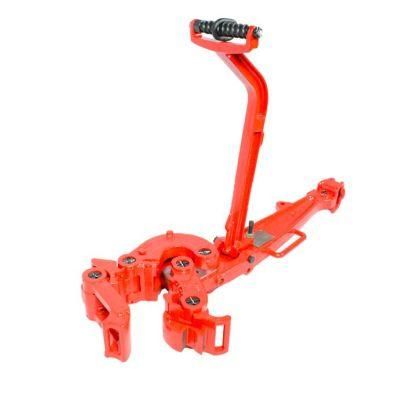

Q2-3/8"~ 10-3/4" API Workover Rig Tongs From China Factory
