Br600 Triplex Plunger Pump for Oilfield Use, Well Service Oil and Gas Plunger Pump

Shandong Baorun Precision Machinery Manufacturing Co., Ltd.
  • Manufacturing Process：Forging
  • Surface Treatment：Spray-Paint
  • Operation Pressure：Atmospheric Pressure
  • Material：Alloy
  • Rated Brake Horsepower：600HP (447kw)
  • Maximum Rod Load：100, 000lbf (445kn)

Base Info

  • Model NO.：BR600S
  • Stroke Length：6"(152.4 mm)
  • Gear Ratio：4.61:1
  • Overhall Dimensions：51.14X55.83X26.89 in.(1, 299X1, 418X683mm)
  • Weight：4, 674lbs (2, 120kg)
  • Application：Cementing
  • OEM：Accept
  • MOQ：1set
  • Delivery：2-3months Aganist Contract
  • Transport Package：Seaworthy Packing
  • Specification：BR600S
  • Trademark：Baorun
  • Origin：China
  • HS Code：841350
  • Production Capacity：100 Sets Per Year

Description






2070Based on 90% ME and 100% VE - Intermittent service only.

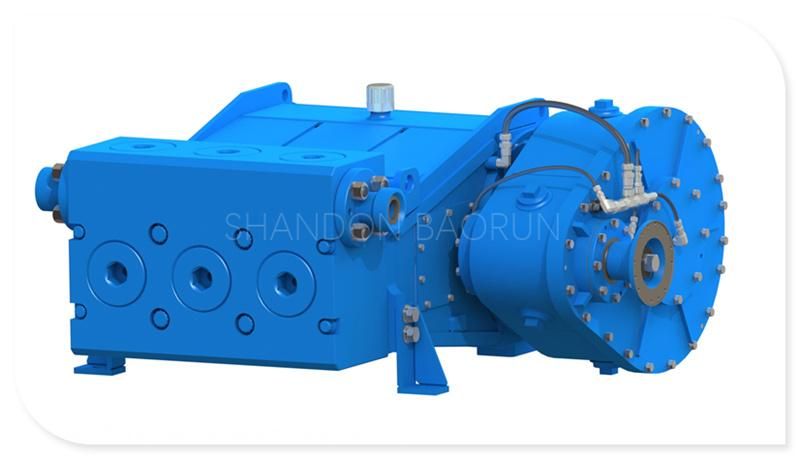

600S is a widely used triplex plunger pump available in the market. The unique offset design greatly reduces the load on the crosshead, slide and crankshaft bearing. The reducer can be installed at either the left of right side of the pump with optional installation angles which can meet different drive requirements. Featuring no pony rod and anti-backflow deflector, the compact structure enables back-to-back mounting, suitable for twin pump layout on one equipment. The pump is suitable for acidizing, cementing and well servicing applications.

Br600 Triplex Plunger Pump for Oilfield Use, Well Service Oil and Gas Plunger Pump
Br600 Triplex Plunger Pump for Oilfield Use, Well Service Oil and Gas Plunger Pump
Br600 Triplex Plunger Pump for Oilfield Use, Well Service Oil and Gas Plunger Pump

Br600 Triplex Plunger Pump for Oilfield Use, Well Service Oil and Gas Plunger PumpBr600 Triplex Plunger Pump for Oilfield Use, Well Service Oil and Gas Plunger Pump1.Excellent design ability (R&D)10 years experiences in design, production and field application;Two large national labs (materials, transmission) as our backup force;8 skilled senior R&D engineers keep innovating on material, structure and transmission system.2.Strict quality control (QC)Quality control plan, incoming inspection, process inspection, outgoing inspection, quality file and tracing.3.Fast response24 x 7 x365 fast response, providing technical support and feedback to customers.Br600 Triplex Plunger Pump for Oilfield Use, Well Service Oil and Gas Plunger Pump
Br600 Triplex Plunger Pump for Oilfield Use, Well Service Oil and Gas Plunger Pump
Shandong Baorun Precision Machinery Manufacturing Co.,Ltd is mainly engaged in high pressure pump design and manufacture, including acidizing & cementing & frac pump and parts, hydraulic piston pump, motor, hydraulic multi-way valves as the key components in hydraulic system. Our frac pump horsepower can reach up to 6600HP, which is the most powerful in this oilfield industry now. Spare parts mainly include fluid ends, valve and seat, valve insert, plunger, packing set, junk ring, valve spring and seal. Besides, good interchangeability of spare parts with SPM, GD, FMC and so on can meet customer's unique requirements.

Br600 Triplex Plunger Pump for Oilfield Use, Well Service Oil and Gas Plunger Pump
Br600 Triplex Plunger Pump for Oilfield Use, Well Service Oil and Gas Plunger PumpBr600 Triplex Plunger Pump for Oilfield Use, Well Service Oil and Gas Plunger Pump
