• Model NO.：1-1,4" SUCKER ROD
• Transport Package：by Bundle
• Specification：5,8" 3,4" 7,8" 1" 1-1,8"
• Trademark：ZX
• Origin：China
• HS Code：8431431000
• Production Capacity：3000 PCS Per Month

Basic Info.

Model NO. 1-1/4" SUCKER ROD Transport Package by Bundle Specification 5/8" 3/4" 7/8" 1" 1-1/8" Trademark ZX Origin China HS Code 8431431000 Production Capacity 3000 PCS Per Month

Product Description



SUCKER ROD

About sucker rod:



Sucker rod is an important part of a sucker rod pumping equipment. Sucker Rod connect with coupling to be a rod string, and up through polished rod connection on the pumping unit or PCP motor, down connection on the pump piston or PCP, its role is to ground the reciprocating movement of the pumping unit horsehead suspension point is passed to the downhole pump or pass the rotation of the PCP motor torque to downhole PCP.

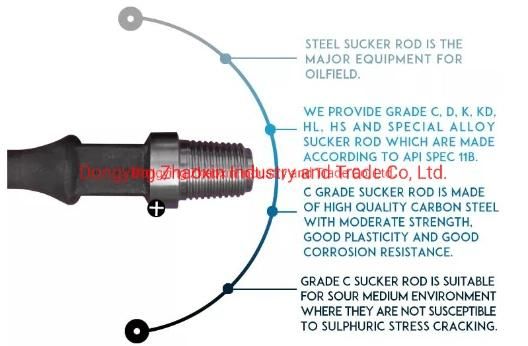

Ordinary sucker rod is manufactured according to API Spec 11B which mainly includes grade C and D. Grade H sucker rod is developed to suit for deep well and larger pumps.

Sucker rod

A string or solid or hollow tubular that is moved by a pump jack at the surface to operate a rod pump at the bottom of the well.

Pony rod

A short rod for spacing out a rod string.

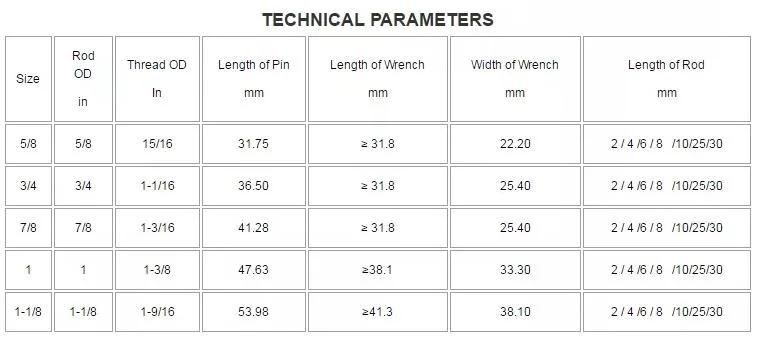

Technical performances:

   Adopting the advanced production line crack detecting, quenching, the continuous overall tempering and sand blasting processes to achieve higher mechanical strength ability with overall good performance.The thread is cut by the special-purpose numerical control lathe which keeps the rod body still when cutting the threads. The special process could ensure the high precision of the thread with better reliability and life-span.
