• Model NO.：ALL
• Specifications：60 to 300mm
• Yield Strength：>450MPa
• Tensile Strength：>610MPa
• Outer Sleeve：Forged Steel 45#
• Inner Sleeve：High Chromium Casting Iron
• Name：Petroleum Machinery Parts Mud Pump Liner Parts
• Package：Standard
• MOQ：3
• Port：Tianjin
• Model：F Series, 3nb Series, etc
• Theory：Centrifugal Pump
• Transport Package：Wooden Box and Sea Shipment
• Specification：standard
• Trademark：xinhuafa
• Origin：Cn
• HS Code：841391000
• Production Capacity：50000sets,Per Year

Basic Info.

Model NO. ALL Specifications 60 to 300mm Yield Strength >450MPa Tensile Strength >610MPa Outer Sleeve Forged Steel 45# Inner Sleeve High Chromium Casting Iron Name Petroleum Machinery Parts Mud Pump Liner Parts Package Standard MOQ 3 Port Tianjin Model F Series, 3nb Series, etc Theory Centrifugal Pump Transport Package Wooden Box and Sea Shipment Specification standard Trademark xinhuafa Origin Cn HS Code 841391000 Production Capacity 50000sets/Per Year

Product Description

petroleum machinery parts mud pump liner parts

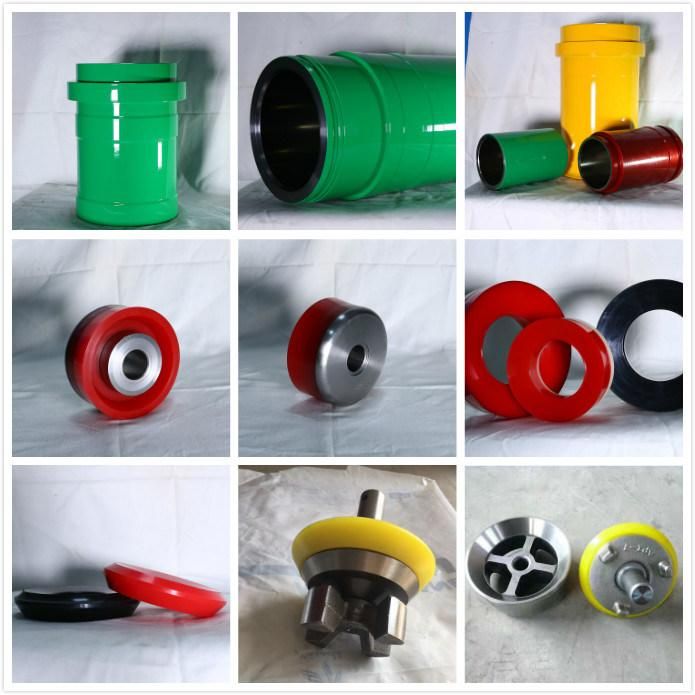

We supply mud pump spare parts like mud pump liner including zirconia ceramic liner and high chrome bimetallic liner, Mono-metal Liner, fluid end module, valve and seats, piston, piston rod, pony rod etc. parts for mud pump, we can also customize and machine as your drawing.

We are a large drilling tools, Drilling rig spares, Water well drilling and mining pump part, Drilling mud pumps and Fluid End Expendables and mud pump spare parts manufacturer in China.

We make W-446 MUD PUMP, F500 MUD PUMP, F800 MUD PUMP, F1000 MUD PUMP, F1300/1600 MUD PUMP.

We make all fluid end modules, Ceramic liners, Hy-chrome liners, rubber replaceable and bonded urethane pistons and all spares for popular brand mud pumps.

All our fluid end parts are manufactured to API 7K quality standards. Our API certificate number 7K-0261.

Parts are available and 100% complete interchangeable for these popular brands:

National Oilwell; Gardner Denver; Weatherford International /Ellis Williams,

Mud King; American Manufacturing; Baker SPD;

Southwest Overseas; Emsco;

BOMCO/Baoji; LS National; Ideco; Wirth;

Gaso; Skytop/Brewster; Drillmec

We are a large drilling tools, mud pump and Fluid End Expendables and mud pump spare parts manufacturer in China.

Brands:EMSCO/GARDNER DENVER/NATIONAL/OILWELL/IDECO/TSC/BOMCO/RONGLI/RG/RONGSHENG/HONGHUA etc
F series Mud Pump:F-350,F-500,F-800,F-1000,F-1300,F-1600,F-2200;
PZ series Mud Pump:PZ-7,PZ-8,PZ-9,PZ-10,PZ-11;
3NB series Mud Pump:3NB-350,3NB-500,3NB-600,3NB-800,3NB-1000,3NB-1300,3NB-1300C,3NB-1600,3NB-2200;
BW series Mud Pump:BW-100,BW-150,BW-250,BW-300 etc;
CWB Series Mud Pump:CWB-1000,CWB-1500,CWB-2000 etc
NATIONAL: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400
OILWELL:A-560/600-PT,A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
IDECO: T-500, T-800, T-1000, T-1300, T-1600
OTHERS: WIRTH, OPI, ELLIS WILLIAMS, WHITE STAR etc.

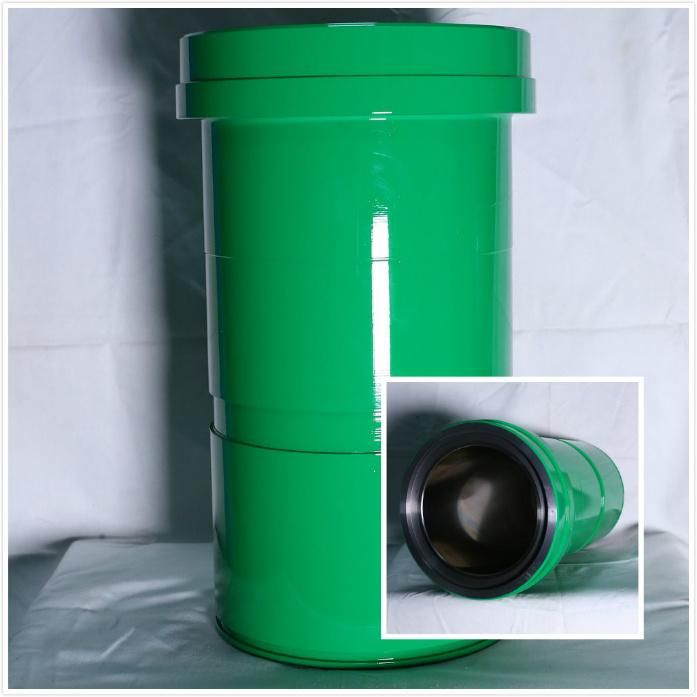

Bimetal Liners
The b-metal liner is composed of two layers and fixed tightly. The outer sleeve is forged steel with abrasion resistance, it adapts the technology of centrigugal forging;  the inner sleeve is high chromium iron with wear&corrosion resistance, after heat treatment, the hardness of it can reach to a lever of 62 RC.
The bimetal liners produced by us strictly control the tolerance, assure the easy installation, inner sleeve is highly polished with abrasion&corrosive resistance, can used in various bad working environment with longer service life.
Liner Outer Sleeve: 45#forged steel, tensile strength is σb>610MPa, yield strength is σs>450MPa, ,elongation hardness is §>17%,hardness is HRC180-200
Liner Inner Sleeve: high chromium cast iron (centrifugal forged). Annealing hardness is HRC≤40. Quenching hardness is HRC59-67
Chemical Composition:C 2.8%-3.1%  Cr 26%-28%  Si 0.6%-0.9%  Mn 0.5%-1% Mo 0.5%-0.8% S , P <0.05%;
