• Model NO.：All
• Specifications：60 to 300mm
• Outer Sleeve：Forged Steel 45#
• Inner Sleeve：Bimetal or Ceramic
• Name：Hi Chromed Double Metal Mud Pump Liner
• Package：Standard
• MOQ：3
• Port：Tianjin
• Model：F Series, 3nb Series, etc
• Theory：Centrifugal Pump
• Transport Package：Wooden Box and Sea Shipment
• Specification：standard
• Trademark：xinhuafa
• Origin：Cn
• HS Code：841391000
• Production Capacity：50000sets,Per Year

Basic Info.

Model NO. All Specifications 60 to 300mm Outer Sleeve Forged Steel 45# Inner Sleeve Bimetal or Ceramic Name Hi Chromed Double Metal Mud Pump Liner Package Standard MOQ 3 Port Tianjin Model F Series, 3nb Series, etc Theory Centrifugal Pump Transport Package Wooden Box and Sea Shipment Specification standard Trademark xinhuafa Origin Cn HS Code 841391000 Production Capacity 50000sets/Per Year

Product Description

Hi chromed double metal mud pump liner





We could provide you mud pump valve&seat with fine quality at positive price. Various sizes are available to fit all major mud pumps. An extensive range of valves and seats are offered, such as Premium Cross-Arms Valve and Seat, Three-arm Valve and Seat,Three-wing Valve, Four-wing Valve, Full-open Seat, Long-life Bonded Valve with Urethane.Wide choices are available for requirements not met by hardened or stainless steel valves and elastomer- valve seats.

Bi-metal liner for mud pumps:

1.Our mud pump liner is strictly manufactured according to API-7K Standard and passed the ISO9001-2000 international quality system authentication.

2.Our mud pump liner have reached the requirement of OEM products quality, and replace the OEM products in the same industry.

3.Through continuous development, we sincerely welcome new and old customers to visit and negotiate business with best product, low price and excellent services.

We are professional manufacturer and exporter of Mud Pump & Parts for 20 years. And we can supply you whole set on flat which suitable for oilfields in any worse environment outside. All are tested and can work well stable without monitoring. Parts also can be supplied to all pumps. All items are manufactured to API 7K quality standards.

Brands:EMSCO/GARDNER DENVER/NATIONAL/OILWELL/IDECO/TSC/BOMCO/RONGLI/RG/RONGSHENG/HONGHUA etc
F series Mud Pump:F-350,F-500,F-800,F-1000,F-1300,F-1600,F-2200;
PZ series Mud Pump:PZ-7,PZ-8,PZ-9,PZ-10,PZ-11;
3NB series Mud Pump:3NB-350,3NB-500,3NB-600,3NB-800,3NB-1000,3NB-1300,3NB-1300C,3NB-1600,3NB-2200;
BW series Mud Pump:BW-100,BW-150,BW-250,BW-300 etc;
CWB Series Mud Pump:CWB-1000,CWB-1500,CWB-2000 etc
NATIONAL: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400
OILWELL:A-560/600-PT,A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
IDECO: T-500, T-800, T-1000, T-1300, T-1600
OTHERS: WIRTH, OPI, ELLIS WILLIAMS, WHITE STAR etc.

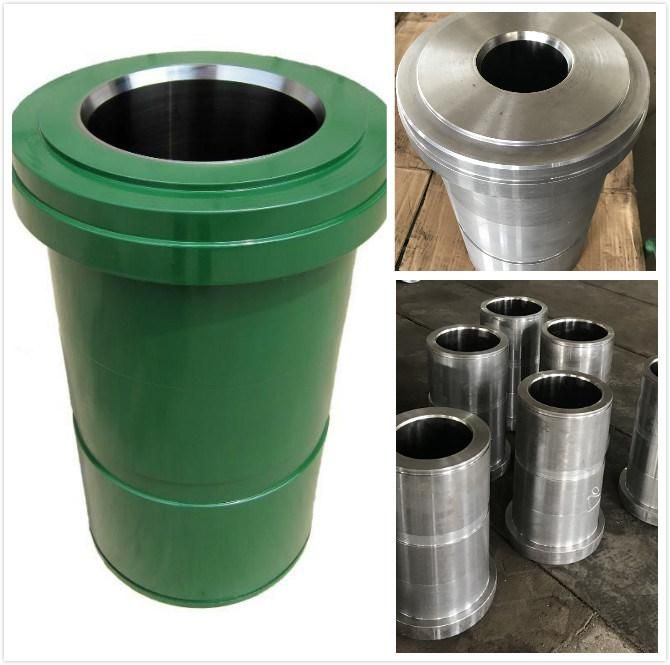

Bimetal Liners
The b-metal liner is composed of two layers and fixed tightly. The outer sleeve is forged steel with abrasion resistance, it adapts the technology of centrigugal forging;  the inner sleeve is high chromium iron with wear&corrosion resistance, after heat treatment, the hardness of it can reach to a lever of 62 RC.
The bimetal liners produced by us strictly control the tolerance, assure the easy installation, inner sleeve is highly polished with abrasion&corrosive resistance, can used in various bad working environment with longer service life.
Liner Outer Sleeve: 45#forged steel, tensile strength is σb>610MPa, yield strength is σs>450MPa, ,elongation hardness is §>17%,hardness is HRC180-200
Liner Inner Sleeve: high chromium cast iron (centrifugal forged). Annealing hardness is HRC≤40. Quenching hardness is HRC59-67
Chemical Composition:C 2.8%-3.1%  Cr 26%-28%  Si 0.6%-0.9%  Mn 0.5%-1% Mo 0.5%-0.8% S , P <0.05%;

Ceramic Liners
The ceramic liner is composed of two layers and fixed tightly. The outer sleeve is forged steel with abrasion resistance, the inner sleeve is ceramic.
We provide Zirconia(ZrO3) Sleeves as well as Alumina(Al2O3) sleeves., of which Ziconia exhibits better impact strength, higher hardness and be honed to finer surface finishes than alumina.Our ceramic liners are proved to serve for 4000 hours or so.

Features:

1. Using time more than 4000 hours
2. High density
3. High hardness
4. Using temperatures up to 2400ºC
5. Wear resistant , acid resistant and alkali resistant
6. Low down the cost of freight , worker,maintaining  and storage
7. Save water and reduce piston wearing

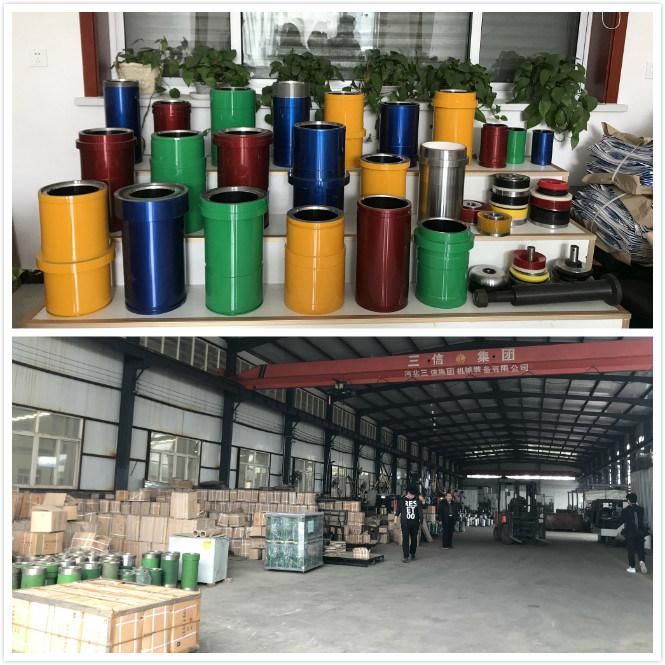

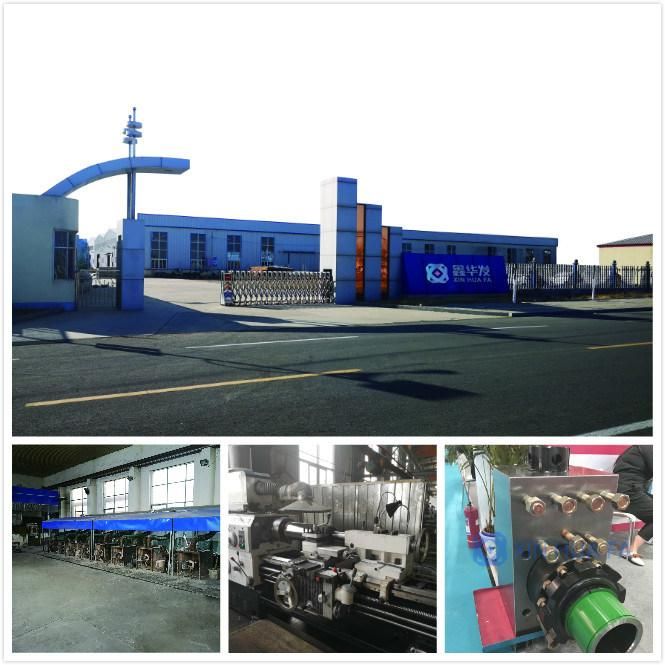

OUR FACTORY

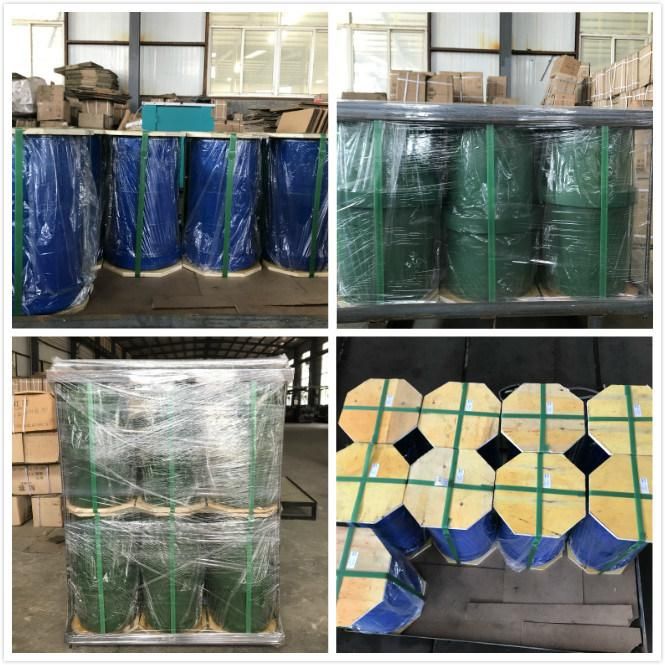

PACKAGE

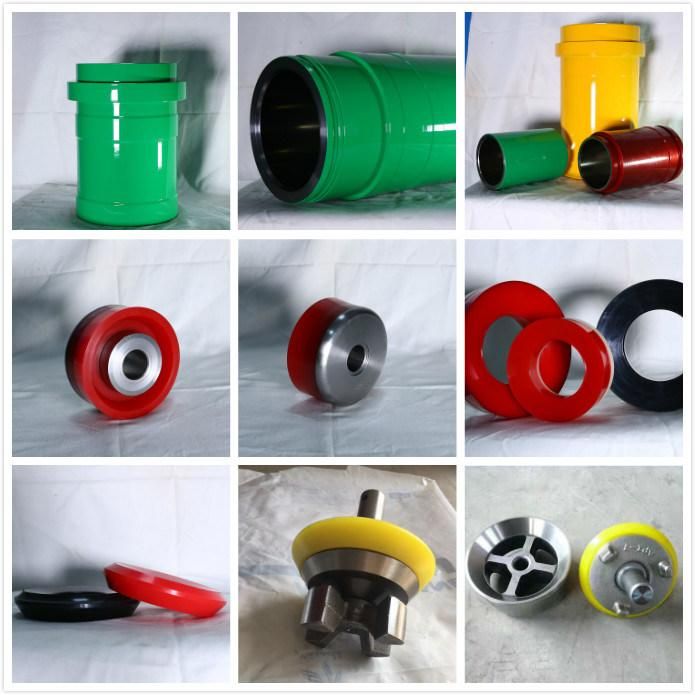

RELATED PRODUCTS
