• Model NO.：TMH8
• Warranty：12months
• Standards：National Standards

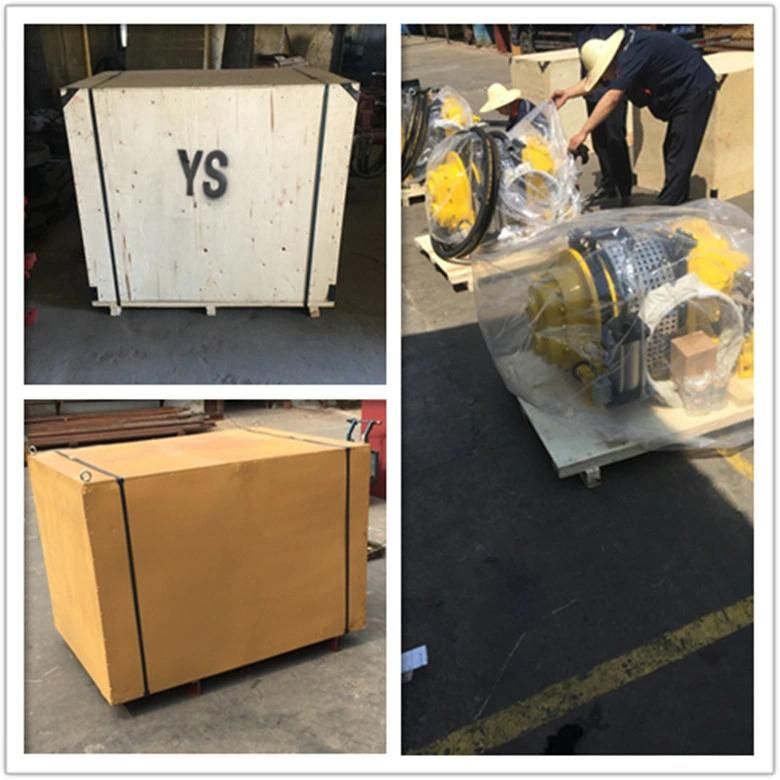

• Transport Package：Iron Boxes or Hard Wooden Cases
• Specification：API,CCS,ISO,CE certifications
• Trademark：YS Safe Power
• Origin：Yantai City, Shandong Province, China
• Production Capacity：1000sets Per Month

Basic Info.

Model NO. TMH8 Warranty 12months Standards National Standards Transport Package Iron Boxes or Hard Wooden Cases Specification API/CCS/ISO/CE certifications Trademark YS Safe Power Origin Yantai City, Shandong Province, China Production Capacity 1000sets Per Month

Product Description

Working Principle:

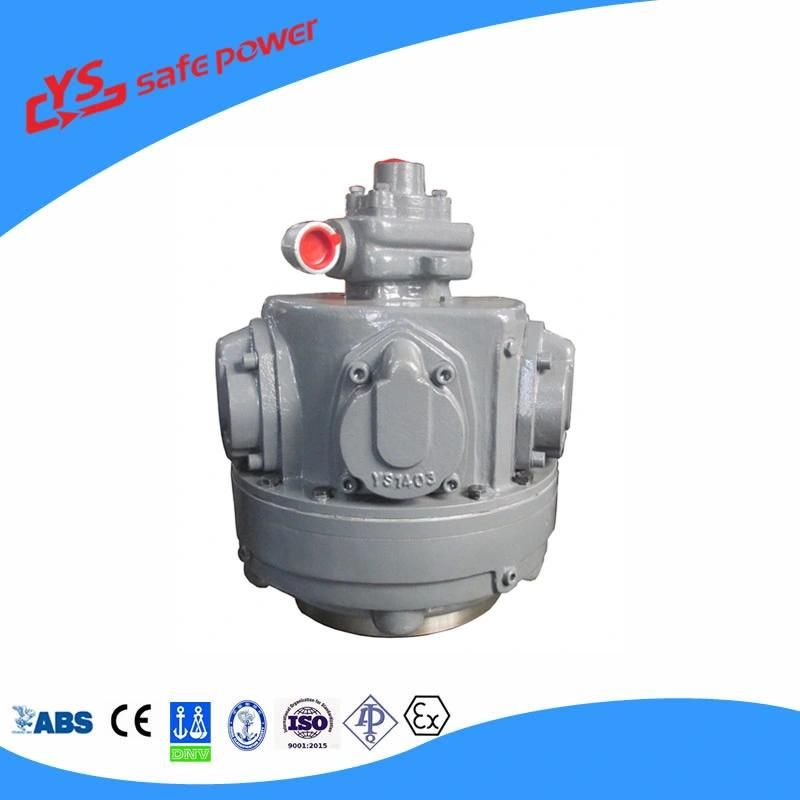

TMH8 piston air motor is operated on the basis of the following principles. After entering into the air distribution system(valve core and valve sleeve), the compressed air is accordingly delivered into cylinders, expanding to push the piston reciprocating; The pistons then drive the shaft and crank journal reciprocation and finally output driving power.


Parameters:

Working Pressure	No-load speed	Rated Speed	Rated Power	Air Consumption
MPa	r/min	r/min	kW	L/s
0.4	1500	690	5.8	130
0.5	1660	760	7.7	164
0.63	1750	800	10	200
0.7	1800	830	12.1	230

Application places:
Widely used in mining, oilfields, constructions, smelting, paper making, pharmacy, chemicals, etc, . This motor is ideal mated driving machine for large-scale drilling machines.

Main Features:
1. Step less in speed, adjusting air volume to change rotate speed and power.
2. Change air-inlet and air-outlet direction to rotate and counter-rotate the motor in short time, with no impact and even not need to relieve the load.
3. The equipped anti-load function enables the motor to rotate at low speed when overload, and regain high speed when overload relived.
4. Stable under inflammable, explosive, outdoor, wet, damp and other extremely conditions.
5. Concise structure, compact in size and light in weight, easy to operate and convenient to maintain.
6. High starting torque enables starting with load, fast and reliable to start and stall.
