• Specifications：60 to 300mm
• Outer Sleeve：Forged Steel 45#
• Inner Sleeve：Ceramic
• Name：Mud Pump Ceramic Liner Price
• Package：Standard
• MOQ：3
• Port：Tianjin
• Model：F Series, 3nb Sereies, Pz Series
• Theory：Mud Pump
• Transport Package：Wooden Box and Sea Shipment
• Specification：standard
• Trademark：xinhuafa
• Origin：Cn
• HS Code：841391000
• Production Capacity：50000sets,Per Year

Basic Info.

Specifications 60 to 300mm Outer Sleeve Forged Steel 45# Inner Sleeve Ceramic Name Mud Pump Ceramic Liner Price Package Standard MOQ 3 Port Tianjin Model F Series, 3nb Sereies, Pz Series Theory Mud Pump Transport Package Wooden Box and Sea Shipment Specification standard Trademark xinhuafa Origin Cn HS Code 841391000 Production Capacity 50000sets/Per Year

Product Description

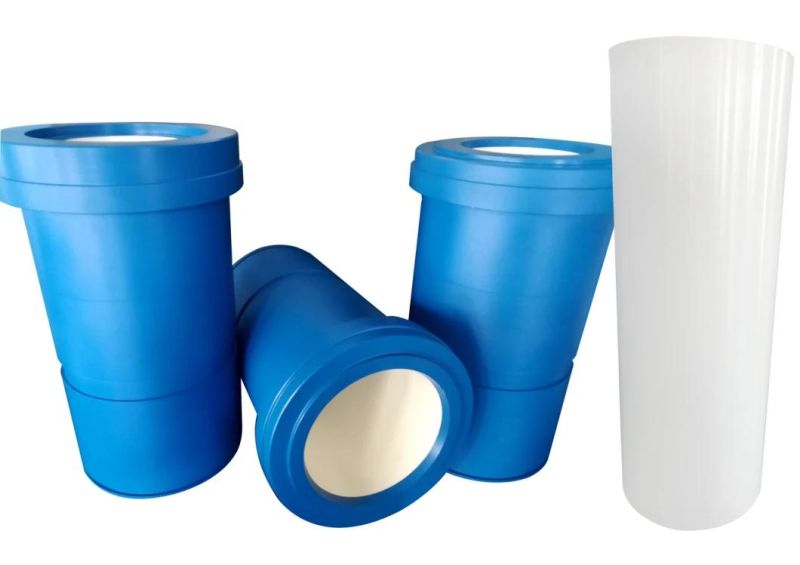

Zirconia ceramic Liner for EMSCO Mud Pump



We offers high quality zirconia liners for most popular used mud pump models such as:

Bomco: F-500, F-800, F-1000,F-1300, F-1600,F-1600HL, F-2200HL
Emsco: F-500, F-800, F-1000, FB-1300, FB-1600, FA-1600,FA-1300, FC-1600, FD-1600 D-300/500, D-375, D-700
National: 7-P-50, 8-P-80, 9-P-100, 10-P-130,12-P-160, 14-P-220, JWS-340, JWS-400
Oilwell: A-850-PT, A-1100-PT, A-1400-PT,A-1700-PT
Ideco:  T-500, T-800,T-1000, T-1300, T-1600
Gardner Denver: PZ-7, PZ-8,PZ-9,PZ-10, PZ-11, FK-FXK,FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP
LS National:Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C,3NB1600
Wirth :Mud Pump: TPK1000, TPK1600, TPK 2000
Russian:Pumps:UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
WEATHERFORD/Ellis Williams: W446, W440
Drillmec: 9T1000, 12T1600, 7TS600,10D2C, 8D1S
Romania: 3PN-1000, 3PN-1600, 3PN-1300, 3PN-2000
OPI: 700-HDL | 1000-HDL


Whatis zirconia liner?
Zirconia liner ismade of zirconia(ZrO2) material inner sleeve and steel material outshell.
Zirconia liner canoffer life time cost savings, significantly longer service, better performanceand safer operation than sleeves made of more commonly used chrome iron oralumina ceramic.


What'sthe advantages of zirconia liner?

A.  PistonWear
The special hardnessand exceptional wear resistance of zirconia translates into longer service fromthe urethane and rubber pistons that move at high speeds and under tremendouspressure inside the mud pump liners. With true bores and zirconia liners honedto a fine 4 RMS finish, piston wear/consumption can be reduced by as much as75%.
B.  Labor andRig Downtime
Eastland's zirconialiners ave service lifetime over 4000 hours which can reduce the labor costduring the fluid end expendables replacement and rig downtime. The costs cannotbe forecast in event of breakdowns, emergencies or that are mud pumpliner-related.
C.  OtherConsiderations

All drillingoperations require a plentiful and continuous flow of water to minimize heatbuild up that could burn up pistons and/or cause bore wear. Use of a zirconialiner does not require any alteration of the driller's existing lubricationsystem, unlike an alumina liner that requires a larger water supply.

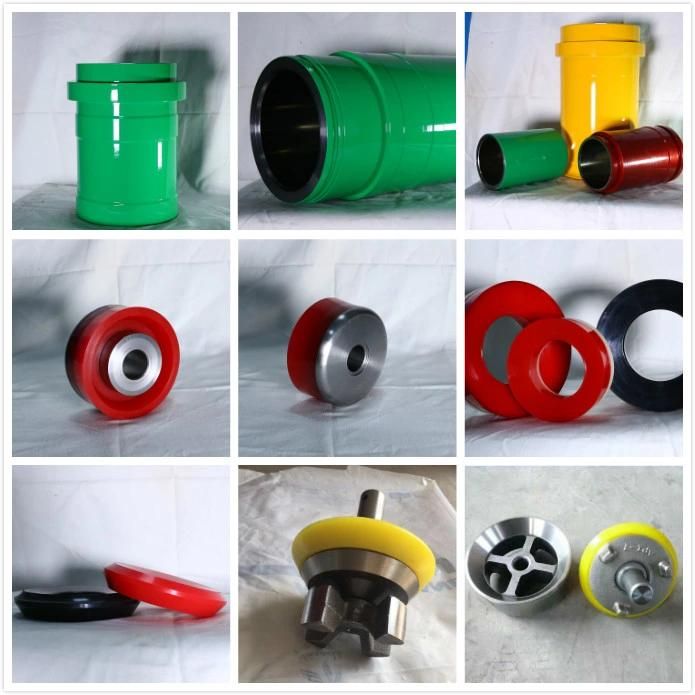

We supply mud pump spare parts like mud pump liner including zirconia ceramic liner and high chrome bimetallic liner, fluid end module, valve and seats, piston, piston rod, pony rod etc. parts for mud pump, we can also customize and machine as your drawing.
