• Model NO.：TRLW450
• Type：Centrifuges
• Bowl Diameter：355-600
• Bowl Speed：3200
• Bowl Length：1000-1500
• Capacity：40-90
• G-Force：2035
• Separation Point：2-5um
• Transport Package：Wooden
• Specification：2650X1800X1700
• Trademark：TR Solids Control
• Origin：China
• Production Capacity：15 Sets, Month

Basic Info.

Model NO. TRLW450 Type Centrifuges Bowl Diameter 355-600 Bowl Speed 3200 Bowl Length 1000-1500 Capacity 40-90 G-Force 2035 Separation Point 2-5um Transport Package Wooden Specification 2650X1800X1700 Trademark TR Solids Control Origin China Production Capacity 15 Sets/ Month

Product Description

Drilling Mud decanter Centrifuge is widely used in oil and gas drilling, Waste Decanter Centrifuge used in vertical cuttings dryer, remove all the soids in the drilling fluids.
Drilling Mud decanter centrifuge adopts centrifugal force to separate solid particles out of drilling fluid. Different solid or particle have different density and flow speed, drilling mud decanter centrifuges also can separate particles as different size and density. Mud Centrifuges is widely used in oil and gas drilling, chemical, foodstuff, pharmacy, mineral beneficiation, water treatment, etc. industries.Waste Decanter Centrifuge used in drilling waste management(DWM).
The feed enters the bowl through a stationary inlet tube and is accelerated smoothly by an inlet rotor. The resulting Drilling Mud Centrifuge forces make the solids collect on the wall of the bowl. The conveyor and the bowl rotate in the same direction, but at different speeds, which has the effect of moving the solids towards the conical end of the bowl for removal.

Mud Centrifuges Technical Parameters

Model	TRGLW355N-1	TRGLW450N-2	TRGLW450N-3	TRGLW550N-1
Bowl Diameter	355mm (14inch)	450mm (17.7inch)	450mm (17.7inch)	550mm (22inch)
Bowl Length	1250mm(49.2inch)	1250mm(49.2inch)	1600(64inch)	1800mm(49.2inch)
Max Capacity	40m3/h	60m3/h	70m3/h	90m3/h
Max Speed	3800r/min	3200r/min	3200r/min	3000r/min
Rotary Speed	3200r/min	3000r/min	2800r/min	2600r/min
G-Force	3018	2578	2578	2711
Separation	2~5μm	2~5μm	2~5μm	2~5μm
Main Drive	30kW-4p	30kW-4p	45kW-4p	55kW-4p
Back Drive	7.5kW-4p	7.5kW-4p	15kW-4p	22kW-4p
Weight	2950kg	3200kg	4500kg	5800kg
Dimension	2850X1860X1250	2600X1860X1250	2950X1860X1250	3250X1960X1350

Variable Speed Decanting Centrifuge Technical Parameters

Model	TRGLW355N-1V	TRGLW450N-2V	TRGLW450N-3V	TRGLW550N-1V
Bowl Diameter	355mm (14inch)	450mm (17.7inch)	450mm (17.7inch)	550mm (22inch)
Bowl Length	1250mm(49.2inch)	1250mm(49.2inch)	1600(64inch)	1800mm(49.2inch)
Max Capacity	40m3/h	60m3/h	70m3/h	90m3/h
Max Speed	3800r/min	3200r/min	3200r/min	3000r/min
Rotary Speed	0~3200r/min	0~3000r/min	0~2800r/min	0~2600r/min
G-Force	3018	2578	2578	2711
Separation	2~5μm	2~5μm	2~5μm	2~5μm
Main Drive	30kW-4p	30kW-4p	45kW-4p	55kW-4p
Back Drive	7.5kW-4p	7.5kW-4p	15kW-4p	22kW-4p
Weight	2950kg	3200kg	4500kg	5800kg
Dimension	2850X1860X1250	2600X1860X1250	2950X1860X1250	3250X1960X1350

Waster Decanter Centrifuges for drilling fluids solids control
Waste Decanter Centrifuges used in vertical cuttings dryer, remove all the soids in the drilling fluids. We are an exporter of Drilling Mud Centrifuges.Our factory approval the API Q1,Mud Centrifuges have the API certification.TR solids control is the designed,selling,production,service and delivery of China Drilling Centrifuges manufacturer. We will provide the high quality Mud Dewatering Centrifuge and best service.Your best Drilling Waste Decanter Centrifuge start from TR solids control.

TR Waste Decanter Centrifuge Features:
High G Force up to max 3000. Big Volume Design.
Bowl Material Duplex Stainless Steel 2205 made from centrifugal casting.
Conveyor Wear Surface: Tungsten carbide tiles .The life is much longer than hard surface. And all tiles is interchangeable for easy maintenance.
Preasurized Explosiong Proof with PLC and HMI control for automatical operation.
All the bearings for the centrifuge are SKF brand premium bearings.

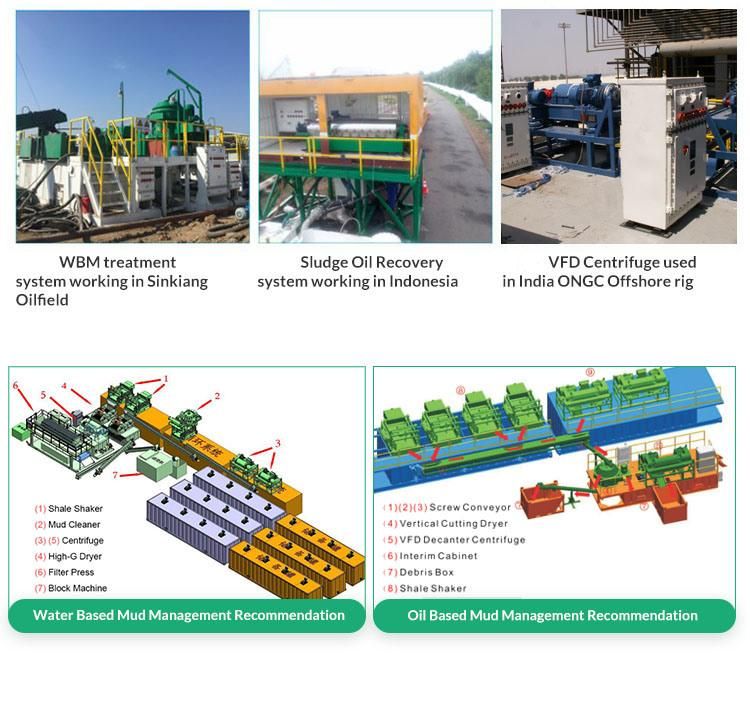

TR Centrifuge for Drilling Waste Management
The drilling fluids recovered by the drilling cuttings dryer should go through the TRLW355 decanter centrifuge to reduce the solids content before returning to the active mud system. The TRLW355 decanter centrifuge can be used in WBM, SBM or OBM.
Dewatering Centrifuge for water based drilling waste
The result is a polymer enhanced flocculation of colloidal and ultra-fine drilled solids that can be efficiently removed with TR decanter dewatering centrifuge. Without such a system, operators,would be left with the accumulation of colloidal and ultrafine drilled solids in the mud system. Ultimately leading to excessive mud densities, pipe torque/drag, mud loss, disposal fees, and overall well cost.

TR Centrifuge for Oil Sludge Treatment
The design of the centrifuge on the telescopic skid is popular for oil sludge separation, and waste management rental business. The telescopic skid height is adjustable, It allows the liquid discharged from the centrifuge goes to storage tank by gravity without a transfer pump.
