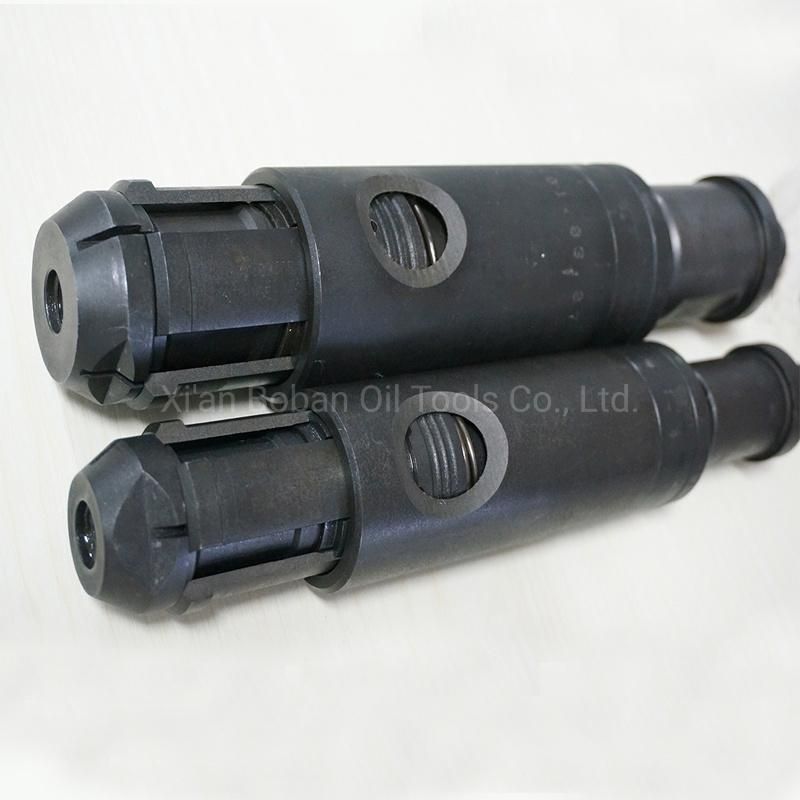

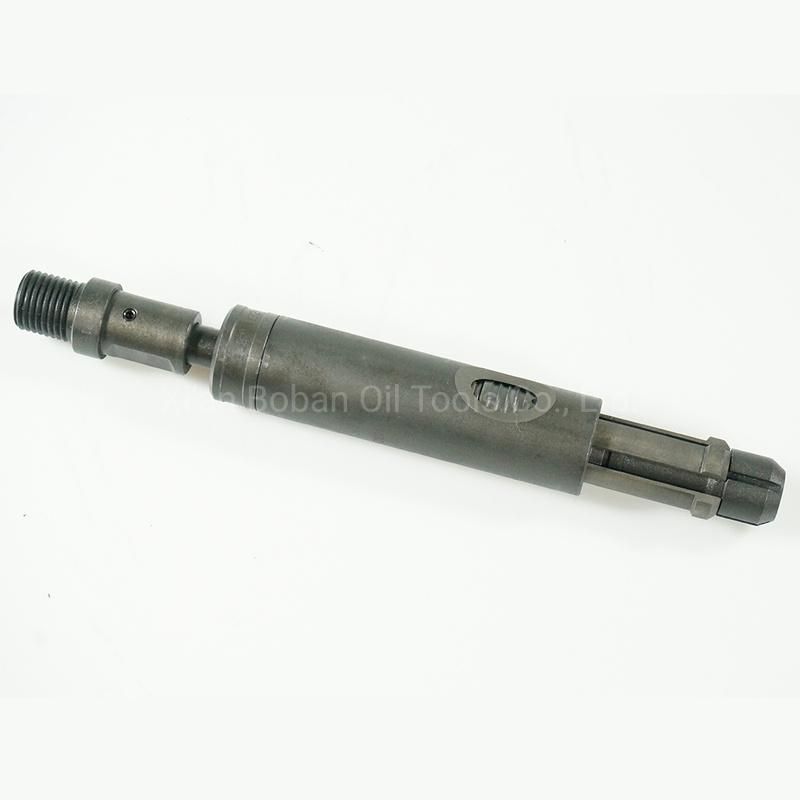

Oilfield Downhole Tools Wireline Slickline GS Pulling Tool
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：N,a
- Material：Cast Steel
Base Info
- Model NO.：Boban
- for Wire Size：0.108", 0.125"
- Connection：Un,Qls,Hdqrj
- Size：1.25"~4"
- Transport Package：Wooden Case
- Specification：1.25"~2.5"
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：30 PCS Per Month
Description
Basic Info.
Model NO. Boban for Wire Size 0.108", 0.125" Connection Un,Qls,Hdqrj Size 1.25"~4" Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per MonthProduct Description
Oilfield Downhole Tools Wireline Slickline GS Pulling ToolI. IntroductionGS type pulling tool is used to pull inner fishing necks, which can cut off and release an object downward and is usually is used to throw and fishing the lock cylinder, packer, bridge plug and others with inner fishing necks. After connecting the GU joint (upward shear joint), it can be converted to be an upward shear and releasing tool.
III. General Technical Parameters
| Size | Actual O.D. | Fishing Neck | Fishing Diameter | Connection |
| 1-1/2" | 1.47" | 1.187" | 1.06" | 15/16"-10UN |
| 2" | 1.81" | 1.375" | 1.38" | 15/16"-10UN |
| 2-1/2" | 2.25" | 1.375" | 1.81" | 15/16"-10UN |
| 3" | 2.72" | 2.313" | 2.31" | 1-1/16"-10UN |
| 3-1/2" | 3.11" | 2.313" | 2.62" | 1-1/16"-10UN |
| 4" | 3.62" | 2.313" | 3.12" | 1-1/16"-10UN |
| 5" | 4.5" | 3.125" | 4" | 1-1/16"-10UN |
| 6" | 5.56" | 3.125" | 4.75" | 1-1/16"-10UN |
| 7" | 5.83" | 3.125" | 5.38" | 1-1/16"-10UN |
Note. Other sizes are available upon request.
