Spiral Glider Rigid Casing Centralizers
Dongying Lake Petroleum Technology Co., Ltd.- After-sales Service：1 Year
- Warranty：3 Months
- Manufacturing Process：Casting
- Surface Treatment：Spray-Paint
- Operation Pressure：Atmospheric Pressure
- Material：Cast Steel
Base Info
- Transport Package：Wooden Case
- Specification：standard
- Trademark：Lake Petro
- Origin：Shangdong, China
- HS Code：73079900
- Production Capacity：500 PCS, Month
Description
314212 212 215 215
Features:
The Rigid Centralizer with Rollers consisits of a rigid body, on which machined five spiral blades and streamlined diversion trenches between blades. On every spiral blades, there are three or four rollers made from modified alloy steel fully heat treated. The assembly is shown as following fig.
Because of the rigid body and rolling friction betwwen the rollers and inside wall of well or casing, the capacity of the RCR centralizer is better than others of all. Recommend to use the tool in cementation of deviated holes and horizontal holes.
Technical specification:
TypeCasing Size Minimum Hole I.D. O.D. OAL (mm/inch) (mm/inch) (mm/inch) (mm/inch) (mm/inch) RCR5 139.7(5-1/2) 215.9(8-1/2) 143(5-5/8) 211(8-5/16) 260(10-1/4) RCR7 177.8(7) 215.9(8-1/2) 181(7-1/8) 213.4(8-13/32) 260(10-1/4) RCR9 244. (9-5/8)5 311.15(12-1/4) 247.5(9-11/16) 305.4(12-1/64) 260(10-1/4) RCR13A 339.7(13-3/8) 406.4(16) 344(13-35/64) 402(15-53/64) 260(10-1/4)

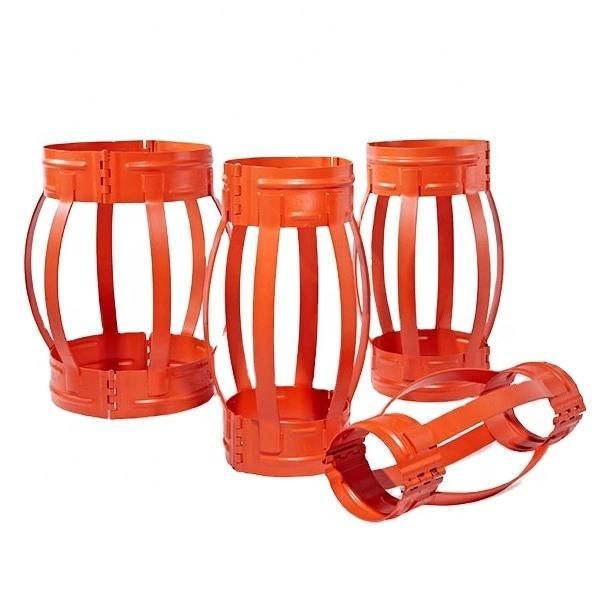

The bow springs of this centralizer have two types as follow: non-welded single bow spring centralizer and non-welded double bow spring centralizer. The centralizer are attached to the end rings without welding. The bow spring casing centralizer bow end is connected to the end rings with a locking tab that bears the load force on the centralizer. The centralizers are supplied in hinged segments joined by hinge pins in each segment. All non-welded centralizers meet or exceed the requirements of API Specification 10D, which dictates the minimum restoring and maximum starting forces for centralizers for various casing/hole size combinations.
Advantages:
1) Designed for high restoring force and low running force.
2) End collars are designed with self-locking action, which are easy to assemble.
3) Undergo special coating process to prevent from rust.
4) Can be shipped in half assembled condition for economy in shipping and storage costs.
Uses:
Features:
Technical Specifications:
Also, we can do customizing if the drawing is provided.
Also, we can do customizing if the drawing is provided.
Also, we can do customizing if the drawing is provided.
FAQ
How to order?
Please send us your inquiry with detail item description or with Model number.
If there is no packing demand we take it as our regular exported standard packing.
We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
You send us your detail requirement, we provide quotation to you.
Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
The information you may like to know before Payment:
1. Methods of Payment:
T/T (Telegraphic Transfer) or L/C at sight
2. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
3. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
Contact Information
Features:
The Rigid Centralizer with Rollers consisits of a rigid body, on which machined five spiral blades and streamlined diversion trenches between blades. On every spiral blades, there are three or four rollers made from modified alloy steel fully heat treated. The assembly is shown as following fig.
Because of the rigid body and rolling friction betwwen the rollers and inside wall of well or casing, the capacity of the RCR centralizer is better than others of all. Recommend to use the tool in cementation of deviated holes and horizontal holes.
Technical specification:
Type
The bow springs of this centralizer have two types as follow: non-welded single bow spring centralizer and non-welded double bow spring centralizer. The centralizer are attached to the end rings without welding. The bow spring casing centralizer bow end is connected to the end rings with a locking tab that bears the load force on the centralizer. The centralizers are supplied in hinged segments joined by hinge pins in each segment. All non-welded centralizers meet or exceed the requirements of API Specification 10D, which dictates the minimum restoring and maximum starting forces for centralizers for various casing/hole size combinations.Advantages:
1) Designed for high restoring force and low running force.
2) End collars are designed with self-locking action, which are easy to assemble.
3) Undergo special coating process to prevent from rust.
4) Can be shipped in half assembled condition for economy in shipping and storage costs.
Uses:
| The Non-Welded Bow Spring Centralizers are made under the state of art Engineering Techniques and rugged |
| quality system. They are developed to exceed API 10D specification to be used under most demanding condition. |
| These Centralizers are designed for High Restoring Forse and Low Starting Force for centralizing the casing pipe |
| in a Vertical,Horizontal and Deviated well. |
Features:
| They are available in 4 1/2"-20" sizes. |
| Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment |
| plant to achieve the uniform hardness all over and good spring action. |
| End Collars are designed with self-locking action,which are easy to assemble,time saver and are having strong grip. |
| The five standard size Bows can configure to any hole Dia. |
| These Bows with extended profile prevent them from hitting against casing collars. |
| These Centralizers undergo a special iron phosphate coating process to prevent them from rust. |
| These can be shipped in half assembled condition for economical in shipping and storage cost. |
Technical Specifications:
| Model (in) | Hooping In-Dia. (mm) | Hooping thickness (mm) | Hooping Height (mm) | Total Length (mm) | Max. Out-Dia. (mm) | Spring Pieces |
| 5-1/2*8-1/2 | 142-148 | 3-5 | 90-120 | 650±50 | 225±5 | 5 |
| 7*9-5/8 | 181-186 | 3-5 | 90-120 | 650±50 | 255±5 | 6 |
| 7*8-1/2 | 181-186 | 3-5 | 90-120 | 650±50 | 235±5 | 6 |
| 8-5/8*12-1/4 | 223-228 | 3-5 | 90-120 | 650±50 | 330±5 | 8 |
| 9-5/8*12-1/4 | 250-255 | 3-5 | 90-120 | 650±50 | 330±5 | 8 |
| 10-3/4*12-1/4 | 274-276 | 3-5 | 90-120 | 650±50 | 330±5 | 9 |
| 13-3/8*17-1/2 | 342-347 | 3-5 | 90-120 | 650±50 | 450±5 | 11 |
| 18-5/8*24 | 476±1 | 3-5 | 90-120 | 600±50 | 610±5 | 12 |
| 20*26 | 510±1 | 3-5 | 90-120 | 600±50 | 660±5 | 12 |
Also, we can do customizing if the drawing is provided.
Also, we can do customizing if the drawing is provided.
Also, we can do customizing if the drawing is provided.
