• Model NO.：casing centralizer
• Process：Welded, Casting or Injection Molding
• Size Range：4 1,2′′--20′′
• Standard：API 10d
• Usage：Centering for Casing
• Transport Package：Plywood Case
• Specification：API, ISO
• Trademark：Zhongshi
• Origin：Henan, China
• HS Code：73079900
• Production Capacity：10000piece,Month

Basic Info.

Model NO. casing centralizer Process Welded, Casting or Injection Molding Size Range 4 1/2′′--20′′ Standard API 10d Usage Centering for Casing Transport Package Plywood Case Specification API, ISO Trademark Zhongshi Origin Henan, China HS Code 73079900 Production Capacity 10000piece/Month

Product Description

API Standard High Quality Casing Pipe Spring Centralizer Price

1) Material: Carbon Steel or 65Mn

2) Type: Casing Pipe Spring Centralizer

3) Standard: API 10D

4) API and ISO certified

5) Specifications: 4 1/2''---20''. More special sizes or combination are available as requested.

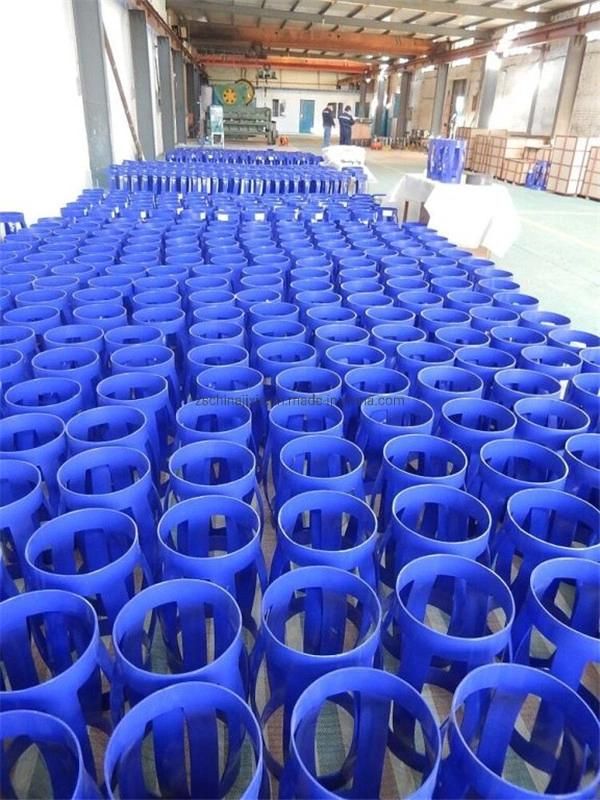

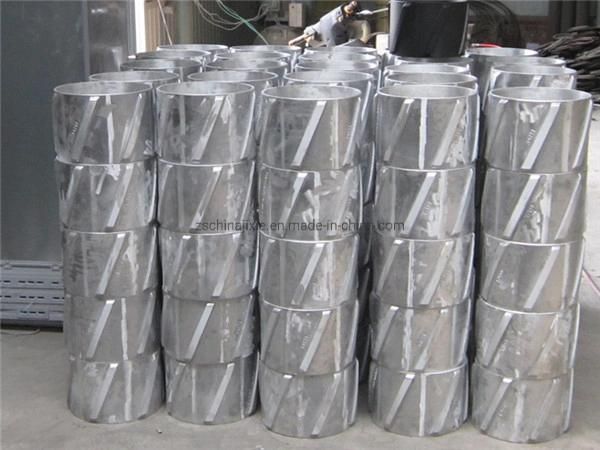

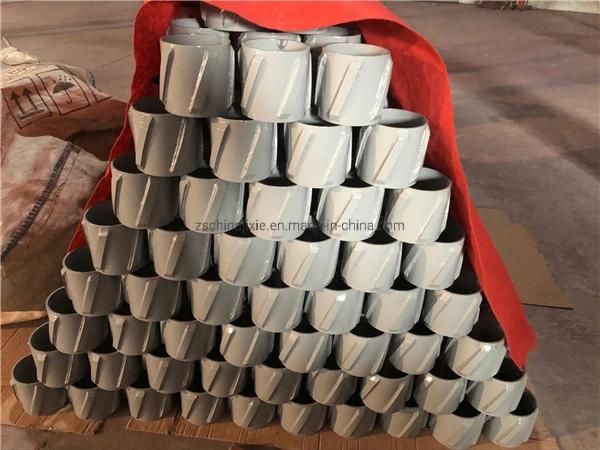

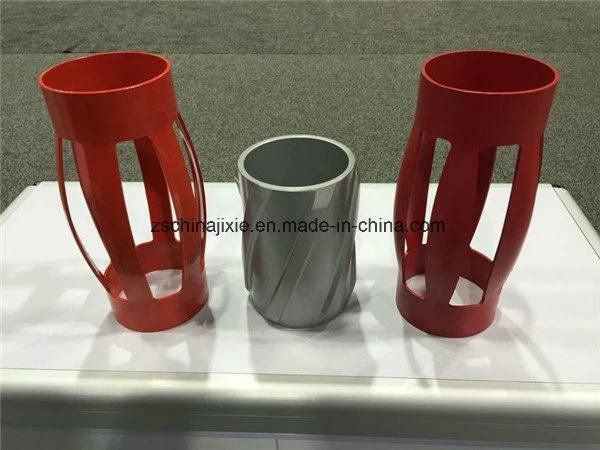

6) Photos:





7) Application

Casing centralizer is to help center the casing in the wellbore, allowing even distribution of the cement around the casing during cementing operations.

8) Function of Casing Pipe Spring Centralizer

a. Take casing to designed position by reducing sticking while casing going down.
b. Centralize casing in well.
c. Balance liquid pressure in annular space by reducing adhesion phenomenon.
d. Improving replacing ratio of mud and boosting cementing quality by reducing channeling effect.
e. Restoring force of double-bow casing centralizer is higher than single-bow casing centralizer's, and centralization performance is stronger.

9) Features of Casing Pipe Spring Centralizer:

a. Designed for high restoring force and low starting&running force
b. Undergo special coating process to prevent from rust

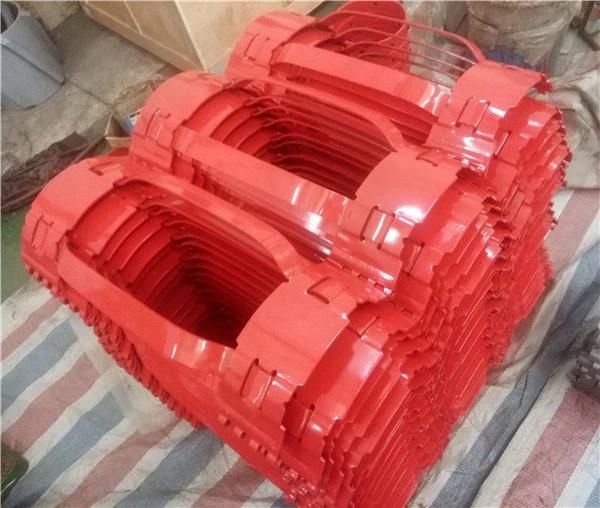

c. For hinged bow spring casing centralizers, end collars are designed with self-locking action, which are easy to assemble and can be shipped in half assembled condition for less shipping and storage costs.

11) Parameter of Casing Pipe Spring Centralizer

Model (in)	Hooping In-Dia. (mm)	Hooping thickness(mm	Total length (mm)	Max.Out-Di (mm)	Amount of spring(mm)
5-1/2" x 8-1/2"	142-148	3-5	650±50	225±5	5
7" x 9-5/8"	181-186	3-5	650±50	255±5	6
7" x 8-1/2"	181-186	3-5	650±50	235±5	6
8-5/8 x 12-1/4"	223-228	3-5	650±50	330±5	8
9-5/8 x 12-1/4"	250-255	3-5	650±50	330±5	8
10-3/4 x 12-1/4"	274-276	3-5	650±50	330±5	9
13-3/8"x17-1/2"	342-347	3-5	650±50	450±5	11
18-5/8"x24"	475-477	3-5	600±50	610±5	12
20"x26"	509-511	3-5	600±50	660±5	12

Certificate:



Company Information

Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC.

We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001, etc..

Our  products mainly include:

1. Casing Centralizer
2.  Float Collar & Float Shoe
3. Cementing Plug
4.  Cementing Head
5.  Cement Basket
6.  Tubing Pump / Rod Pump
7.  Valve Ball & seat
8. Casing / Tubing Pipe and Coupling
9. Stage Collar
10. Pumping Unit
11. Sucker Rod

Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.  Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
