Top Quality Wellhead and Christmas Tree
Shanghai WS Energy& Technology Group Co. Ltd.- Drilling Program：Single Stage
- Applicable Medium：Mud, Water, Natural Gas, Crude Oil
- Connection Form：Flange
- Well Type：Chassis Well
- Installation Position：Overwater
- Structure：Vertical
Base Info
- Model NO.：API 6A
- Type：Composite
- Transport Package：Wooden Case
- Specification：API 6A
- Trademark：WS
- Origin：China
- HS Code：843143
- Production Capacity：1000sets,1 Years
Description
Basic Info.
Model NO. API 6A Type Composite Transport Package Wooden Case Specification API 6A Trademark WS Origin China HS Code 843143 Production Capacity 1000sets/1 YearsProduct Description

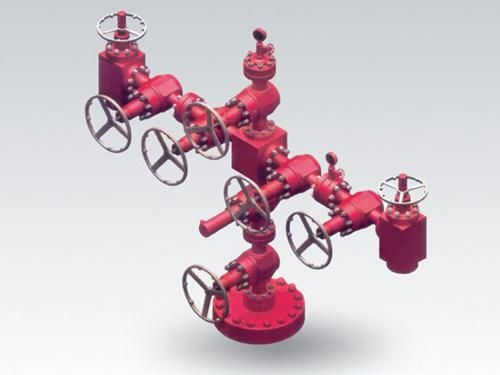

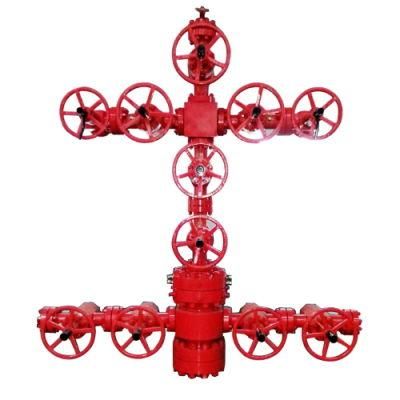

Wellhead Assemblies and Christmas TreeWellhead equipment and Christmas tree are essential for oil and gas exploitation,WS Energy & Technology's wellhead and X-mas tree equipment can be used in self- flow oil wells, pumping unit oil wells, electric submersible pump oil wells, progressive cavity pump oil wells, thermalrecovery oil wells, H2S oil wells, water injection oil wells, fracture oil wells, onshore and offshore oil wells and etc.
Detailed Specifications:
Product Name: Wellhead Assembly and Xmas Tree
Nominal Bore Size: 2-1/16" - 4-1/16"
Main Components: Casing Head Assembly, Tubing Head Assembly, FC Gate Valves, Adapter Flange, Cross, Choke Valve, Casing Hangers, Tubing Hangers, Pressure Gauges,etc.
Rated Working Pressure: 2000PSI - 20000PSI
Material Class: AA, BB, CC, DD, EE, FF
Material: AISI4130 (Integral Forged) or as per customers' request.
Temperature Class: L, P, R, S, T, U, V
Performance Requirement: PR1, PR2
Specification Level: PSL-1, PSL-2, PSL-3, PSL-3G
Standard: API-6A, NACE MR0175
| Item | Description |
| Working pressure | 2000Psi - 20000Psi |
| Material class | AA BB CC DD EE FF HH |
| Temp. class | LU |
| PSL | PSL1 PSL2 PSL3 PSL3G PSL4 |
| PR | PR1 PR2 |
| Medium | Oil, water, gas, mud |
