API 11e Oilwell B Serise Crank Balance Beam Pump Jack
Puyang Zhongshi Group Co., Ltd.- Certification：API 11e
- Place of Origin：Henan, China
- Voltage：220V,380V
- Power(W)：5.5kv
- Dimension(L*W*H)：188X47X120
- Rated Suspension Point Load：6700
Base Info
- Model NO.：B25D-67-36
- Stroke：36, 30, 24
- Frequency of Stroke：5, 7, 9
- Type of Equilibrium：Beam Balance Pump Jack
- Gear Reducer：Double Circular-Arc Gear
- Total Gear Ratio：32.85
- Usage：Oil (Gas) Production Machinery
- Power Type：Electric
- Transmission System：Mechanical
- Transport Package：Nude Pacling
- Specification：API 11E
- Trademark：zs
- Origin：Puyang
- HS Code：8413
- Production Capacity：50
Description
Basic Info.
Model NO. B25D-67-36 Stroke 36, 30, 24 Frequency of Stroke 5, 7, 9 Type of Equilibrium Beam Balance Pump Jack Gear Reducer Double Circular-Arc Gear Total Gear Ratio 32.85 Usage Oil (Gas) Production Machinery Power Type Electric Transmission System Mechanical Transport Package Nude Pacling Specification API 11E Trademark zs Origin Puyang HS Code 8413 Production Capacity 50Product Description

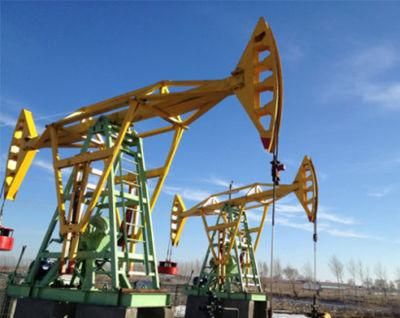

Brief Introduction of the B-serise walking beam crank balance pumping unit/pump jack
In order to adapt to the development of petroleum industry, our company developed an pumping unit of beam-balanced serial in combination with the factual situation of our domestic oil field, aiming at the development direction of pumping units of deep pumping, long stroke and energy-saving, which are needed by such oil fields as not being able to perform flowing based on their oil layer energy.
Technical Performances of the pump jack
1)Walking Beam Balance/Crank balance
2)25 Retarder Rating Torque 25000lbs.in
3)Retarder Adopting Double-circular-arc Helical Gearing System
4)6700lbs Rating Polished Rod Load
5) Stroke 36in
NO | Model | rod capacity (lb) | stroke (in) | Rated torque (in.lb) |
1 | B-80D-119-64 | 11,900 | 64,54 | 80,000 |
2 | B-80D-76-64 | 7,600 | 64,54 | 80,000 |
3 | B-80D-133-54 | 13,300 | 54,41 | 80,000 |
4 | B-80-119-54 | 11,900 | 54,41 | 80,000 |
5 | B-80D-76-54 | 7,600 | 54,41 | 80,000 |
6 | B-80D-133-48 | 13,300 | 48,35 | 80,000 |
7 | B-80D-109-48 | 10,900 | 48,35 | 80,000 |
8 | B-57D-109-54 | 10,900 | 54,41 | 57,000 |
9 | B-57D-89-54 | 8,900 | 54,41 | 57,000 |
10 | B-57D-76-54 | 7,600 | 54,41 | 57,000 |
11 | B-57D-109-48 | 10,900 | 48,35 | 57,000 |
12 | B-57D-95-48 | 9,500 | 48,35 | 57,000 |
13 | B-57D-89-48 | 8,900 | 48,35 | 57,000 |
14 | B-57D-89-42 | 8,900 | 42,32 | 57,000 |
15 | B-40D-89-48 | 8,900 | 48,35 | 40,000 |
16 | B-57D-76-42 | 7,600 | 42/32 | 57,000 |
17 | B-40D-76-42 | 7,600 | 42,29 | 40,000 |
18 | B-25D-67-36 | 6,700 | 36,27 | 25,000 |
19 | B-25D-53-30 | 5,300 | 30/23 | 25,000 |
20 | B-16D-53-30 | 5,300 | 30,23 | 16,000 |
