Manriding Winch High Quality Made in China
Shandong Beyond Petroleum Equipment Co., Ltd.- After-sales Service：1year
- Warranty：1year
- Manufacturing Process：Casting
- Operation Pressure：Atmospheric Pressure
- Material：Stainless Steel
- Rated Lifting Force：5kn
Base Info
- Model NO.：ZJQH-5*24B
- Lifting Speed：0~24m,Min
- Steel Rope Diameter(mm)：10-11mm
- Wire Capacity (D=10mm)：150m
- Overall Dimensions(Length *Width *Height：930*810*910
- Pneumatic Motor Rated Power(Kw)：2.6kw
- Pressure of Compress Air (MPa)：0.25-0.8MPa
- Ax. Air Consumption：5m3 ,Min
- Break Type：Built-in Entire Disc Caab + Band Hand Break
- Transport Package：Export Packing
- Specification：100kg
- Trademark：BEYOND
- Origin：China
- Production Capacity：10sets,Week
Description
Its main features are as follows:Compact structure, easy installation;
To achieve positive and reverse stepless speed regulation, simple operation;
Suitable for flammable and explosive gas;
Starting torque is large, can load start;
Operation, easy maintenance, smooth operation;

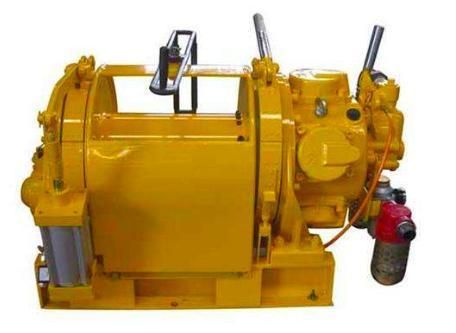

Man rider pneumatic winch is a pneumatic motor as the driving force, through the planetary reducer drive roller, realize lifting device or traction. It is mainly used for land or offshore petroleum operations, can be used for lifting and carrying two manned lifting purposes.
