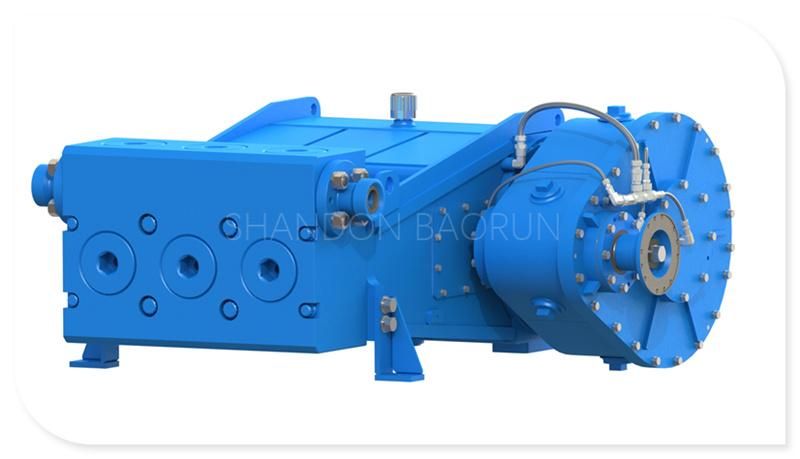

600s Well Service Pumps Used in Acidizing, Cementing, Coiled Tubing Support, and Gravel Packing.

Shandong Baorun Precision Machinery Manufacturing Co., Ltd.
  • Manufacturing Process：Forging
  • Surface Treatment：Spray-Paint
  • Operation Pressure：Atmospheric Pressure
  • Material：Alloy
  • Rated Brake Horsepower：600HP (447kw)
  • Maximum Rod Load：100, 000lbf (445kn)

Base Info

  • Model NO.：BR600S
  • Stroke Length：6"(152.4 mm)
  • Gear Ratio：4.61:1
  • Overhall Dimensions：57.48X53.23X27.24in(1, 460X1, 352X692mm)
  • Weight：4, 740lbs (2, 150kg)
  • Application：Cementing
  • OEM：Accept
  • MOQ：1set
  • Delivery：2-3months Aganist Contract
  • Transport Package：Seaworthy Packing
  • Specification：BR600
  • Trademark：Baorun
  • Origin：China
  • HS Code：841350
  • Production Capacity：100 Sets Per Year

Description

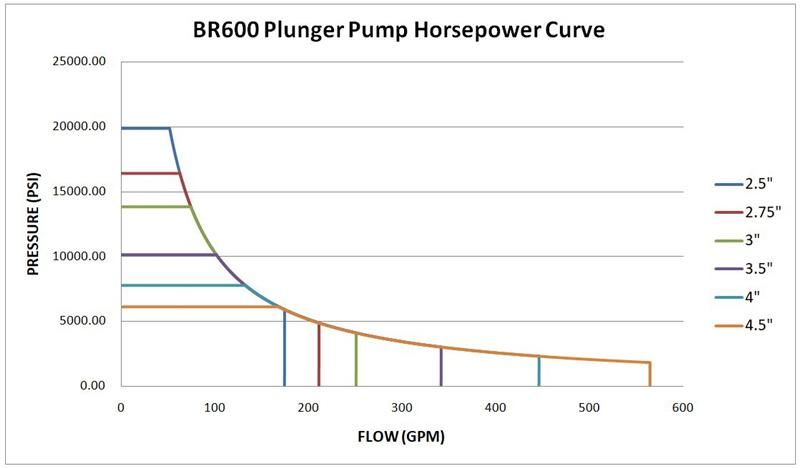

2160Based on 90% ME and 100% VE - Intermittent service only.

600s Well Service Pumps Used in Acidizing, Cementing, Coiled Tubing Support, and Gravel Packing.
600s Well Service Pumps Used in Acidizing, Cementing, Coiled Tubing Support, and Gravel Packing.
600s Well Service Pumps Used in Acidizing, Cementing, Coiled Tubing Support, and Gravel Packing.600s Well Service Pumps Used in Acidizing, Cementing, Coiled Tubing Support, and Gravel Packing.1.Excellent design ability (R&D)10 years experiences in design, production and field application;Two large national labs (materials, transmission) as our backup force;8 skilled senior R&D engineers keep innovating on material, structure and transmission system.2.Strict quality control (QC)Quality control plan, incoming inspection, process inspection, outgoing inspection, quality file and tracing.3.Fast response24 x 7 x365 fast response, providing technical support and feedback to customers.600s Well Service Pumps Used in Acidizing, Cementing, Coiled Tubing Support, and Gravel Packing.
600s Well Service Pumps Used in Acidizing, Cementing, Coiled Tubing Support, and Gravel Packing.

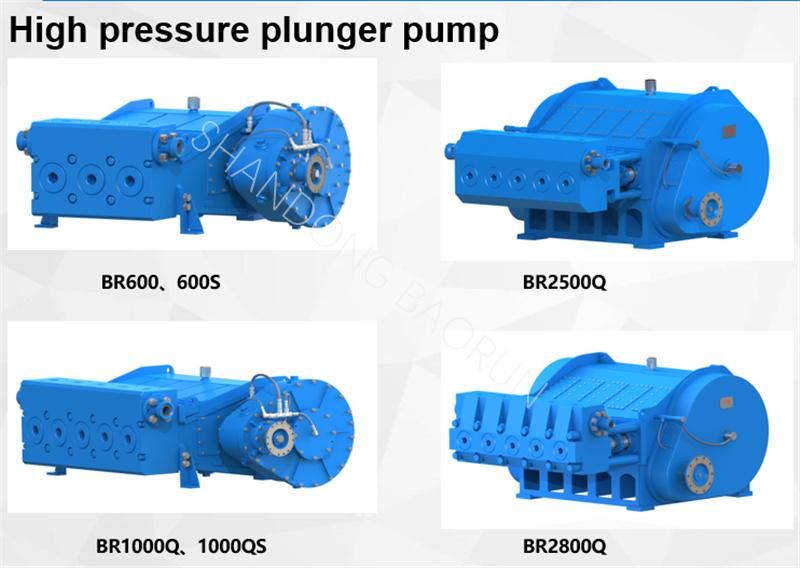

Shandong Baorun Precision Machinery Manufacturing Co.,Ltd is mainly engaged in high pressure pump design and manufacture, including acidizing & cementing & frac pump and parts, hydraulic piston pump, motor, hydraulic multi-way valves as the key components in hydraulic system. Our frac pump horsepower can reach up to 6600HP, which is the most powerful in this oilfield industry now. Spare parts mainly include fluid ends, valve and seat, valve insert, plunger, packing set, junk ring, valve spring and seal. Besides, good interchangeability of spare parts with SPM, GD, FMC and so on can meet customer's unique requirements.

600s Well Service Pumps Used in Acidizing, Cementing, Coiled Tubing Support, and Gravel Packing.
600s Well Service Pumps Used in Acidizing, Cementing, Coiled Tubing Support, and Gravel Packing.600s Well Service Pumps Used in Acidizing, Cementing, Coiled Tubing Support, and Gravel Packing.

Welcome to visit our company at any time!
