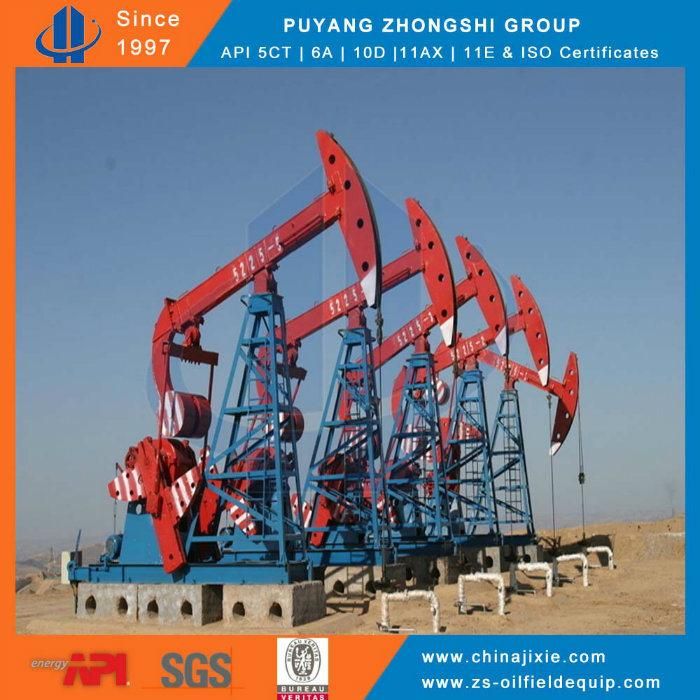

API 11e Oilfield Drilling Equipment Pumping Unit Pump Jack
Puyang Zhongshi Group Co., Ltd.- Certification：ISO, API
- Condition：New
- Transmission：Mechanical
- Pumping Way：With Rod
- Type：Petroleum Drilling Machine
- Application：Oil Drilling
Base Info
- Model NO.：ZS12113
- Pumping Unit Type：API Standard
- Stroke Length (in：240
- Usage：Well Drilling Machinery
- Power Type：Electric
- Transmission System：Mechanical
- Transport Package：Wooden Case
- Specification：C53~C270
- Trademark：ZS
- Origin：Henan
- HS Code：8431
Description
Basic Info.
Model NO. ZS12113 Pumping Unit Type API Standard Stroke Length (in 240 Usage Well Drilling Machinery Power Type Electric Transmission System Mechanical Transport Package Wooden Case Specification C53~C270 Trademark ZS Origin Henan HS Code 8431Product Description
Pumping UnitConventional light API B pump units, balanced by walking beams, are among the most common and most widely used power units in rod production on oil fields.Products comply with Specifications of Pumping Units (API Spec 11E) and other related standards, and have acquired the authorization to use Official API Monogram.
1. Compact structure, easy operation and maintenance, and extended service life.
2. Reducers are driven by involute or double-arc herringbone wheels and thus can operate stably and reliably.
3. The entire machine is very light and thus can be installed and transported conveniently.
4. It is applicable in shallow oil production with small stroke and light loads.
Conventional API C pump units with walking beams, balanced by cranks, are among the most common and most widely used power units in rod production on oil fields.
1.Modular and virtual manufacturing technologies are adopted in design, so that the structure of products is optimized and components are highly standardized, generalized and seriated.
2.Key structural elements are subject to finite element analysis to ensure stable performance and high reliability.
3.Reducers are driven by double-arc symmetrical split or involute herringbone wheels that are properly sealed and distinguished with low noise, smooth operation, reliable and durable service.
4.The entire machine features simple operation and maintenance and extended service life.
| Model | Rated polished rod load (lbs) | Stroke (in) | Rated torque of reducers (in.lbs) |
| C-1824D-427-240 | 42,700 | 240,212,196,160 | 1824,000 |
| C-1280D-365-240 | 36,500 | 240,212,196,160 | 1280,000 |
| C-1280D-305-240 | 30,500 | 240,212,196,160 | 1280,000 |
| C-912D-470-240 | 47,000 | 240,212,196,160 | 912,000 |
| C-912D-427-216 | 42,700 | 216,185,155 | 912,000 |
| C-912D-427-192 | 42,700 | 192,165,138 | 912,000 |
| C-912D-305-192 | 30,500 | 192,165,138 | 912,000 |
| C-912D-365-168 | 36,500 | 168,144,121 | 912,000 |
| C-912D-305-168 | 30,500 | 168,144,121 | 912,000 |
| C-912D-427-144 | 42,700 | 144,123,102 | 912,000 |
| C-640D-305-192 | 30,500 | 192,165,138 | 640,000 |
| C-640D-305-168 | 30,500 | 168,144,121 | 640,000 |
| C-640D-365-144 | 36,500 | 144,123,102 | 640,000 |
| C-640D-305-144 | 30,500 | 144,123,102 | 640,000 |
| C-640D-256-144 | 25,600 | 144,123,102 | 640,000 |
| C-640D-305-120 | 30,500 | 120,102,84 | 640,000 |
| C-456D-305-168 | 30,500 | 168,144,121 | 57,000 |
| C-456D-305-144 | 30,500 | 144,123,102 | 40,000 |
| C-456D-256-144 | 25,600 | 144,123,102 | 57,000 |
| C-456D-365-120 | 36,500 | 120,102,84 | 40,000 |
| C-456D-305-120 | 30,500 | 120,102,84 | 25,000 |
| C-456D-256-120 | 25,600 | 120,102,84 | 25,000 |
| C-320D-256-144 | 25,600 | 144,123,102 | 320,000 |
| C-320D-256-120 | 25,600 | 120,102,84 | 320,000 |
| C-320D-213-120 | 21,300 | 120,102,84 | 320,000 |
| C-320D-305-100 | 30,500 | 100,85,70 | 320,000 |
| C-320D-256-100 | 25,600 | 100,85,70 | 320,000 |
| C-320D-213-86 | 21,300 | 86,71,56 | 320,000 |
| C-228D-213-120 | 21,300 | 120,102,84 | 228,000 |
| C-228D-173-100 | 17,300 | 100,86,72 | 228,000 |
| C-228D-246-86 | 24,600 | 86,71,56 | 228,000 |
| C-228D-213-86 | 21,300 | 86,71,56 | 228,000 |
| C-228D-200-74 | 20,000 | 74,64,54 | 228,000 |
| C-228D-173-74 | 17,300 | 74,64,54 | 228,000 |
| C-160D-173-86 | 17,300 | 86,74,62 | 160,000 |
| C-160D-200-74 | 20,000 | 74,64,54 | 160,000 |
| C-160D-173-74 | 17,300 | 74,64,54 | 160,000 |
| C-160D-143-74 | 14,300 | 74,64,54 | 160,000 |
| C-160D-173-64 | 17,300 | 64,54,44 | 160,000 |
| C-114D-119-86 | 11,900 | 86,72,59 | 114,000 |
| C-114D-143-74 | 14,300 | 74,62,51 | 114,000 |
| C-114D-173-64 | 17,300 | 64,54,44 | 114,000 |
| C-114D-143-64 | 14,300 | 64,52,40 | 114,000 |
| C-114D-133-54 | 13,300 | 54,45,36 | 114,000 |
| C-80D-119-64 | 11,900 | 64,53,42 | 80,000 |
| C-80D-133-54 | 13,300 | 54,45,36 | 80,000 |
| C-80D-119-54 | 11,900 | 54,45,36 | 80,000 |
| C-80D-133-48 | 13,300 | 48,40,32 | 80,000 |
| C-80D-109-48 | 10,900 | 48,37,25 | 80,000 |
| C-57D-76-54 | 7,600 | 54,41,28 | 57,000 |
| C-57D-109-48 | 10,900 | 48,37,25 | 57,000 |
| C-57D-95-48 | 9,500 | 48,37,25 | 57,000 |
| C-57D-89-42 | 8,900 | 42,33,23 | 57,000 |
| C-57D-76-42 | 7,600 | 42,33,23 | 57,000 |
| C-40D-76-48 | 7,600 | 48,37,27 | 40,000 |
| C-40D-89-42 | 8,900 | 42,33,23 | 40,000 |
| C-40D-76-42 | 7,600 | 42,33,23 | 40,000 |
| C-40D-89-36 | 8,900 | 36,28,20 | 40,000 |
| C-25D-67-36 | 6,700 | 36,28,20 | 25,000 |
| C-25D-56-36 | 5,600 | 36,28,20 | 25,000 |
| C-25D-53-30 | 5,300 | 30,20 | 25,000 |
Send us an email if you have the need!
