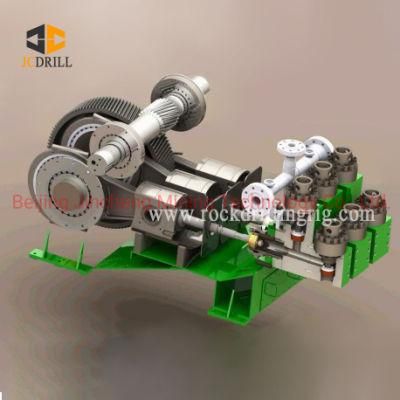

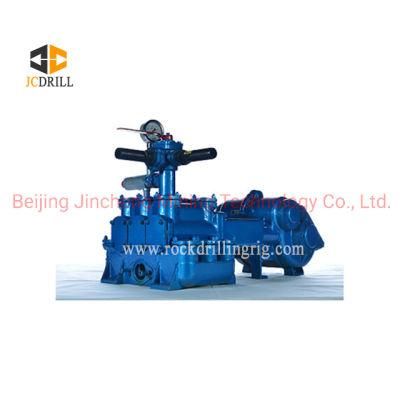

Bw450 Triplex Piston Mud Pump for 400m Deep Borehole Drilling Rig

Beijing Jincheng Mining Technology Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Power Source：Engine,Hydraulic,Elcetric Motor
  • Operation Pressure：Atmospheric Pressure
  • Material：Cast Steel
  • Type：Drilling Fluid Shale Shaker
  • Flow Rate：170-450 L,Min

Base Info

  • Model NO.：BW450
  • Pressure：2-5 MPa
  • Cylinder：Three
  • Piston：Single
  • Transport Package：Wooden Box
  • Specification：1100X995X650 mm
  • Trademark：JCDRILL
  • Origin：China
  • HS Code：8430419000
  • Production Capacity：2000 Sets,Year

Description

No.ModelUnitBW4501Type Horizontal, Triplex, Single Acting Reciprocating pump2Cylinder quantity 33Cylinder diametermm954Travel (mm)mm1005Pump SpeedTime/min86-2206Rate of flowL/min4501727PressureMpa258Speedr/min22009Pitch of belt pulleymm38510Belt pulleymmB type,five solts11Power Diesel engine12Egnine Brand Changchai13Engine Model L2814Engine Powerhp2815Suction pipe dia.(mm)mmφ76 mm16Scupper pipe dia.mmφ51 mm17Dimensions(L×W×H)mm1100×995×65018WeightKg520




Bw450 Triplex Piston Mud Pump for 400m Deep Borehole Drilling Rig

Service

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
