• Model NO.：F series
• Specifications：60 to 300mm
• Yield Strength：>450MPa
• Tensile Strength：>610MPa
• Outer Sleeve：Forged Steel 45#
• Inner Sleeve：High Chromium Casting Iron
• Name：Hy-Chrome Mud Pump Liner, Chrome-Plated Liner
• Package：Standard
• MOQ：3
• Port：Tianjin
• Model：F Series, 3nb Series, etc
• Theory：Centrifugal Pump
• Transport Package：Wooden Box and Sea Shipment
• Specification：standard
• Trademark：xinhuafa
• Origin：Cn
• HS Code：841391000
• Production Capacity：50000sets,Per Year

Other branner:WIRTH,OPI,Ellis Williams,Wilson,Gaso,Skyto,Brewster,Wetherford

Bimetal Liners
The b-metal liner is composed of two layers and fixed tightly. The outer sleeve is forged steel with abrasion resistance, it adapts the technology of centrigugal forging;  the inner sleeve is high chromium iron with wear&corrosion resistance, after heat treatment, the hardness of it can reach to a lever of 62 RC.
The bimetal liners produced by us strictly control the tolerance, assure the easy installation, inner sleeve is highly polished with abrasion&corrosive resistance, can used in various bad working environment with longer service life.
Liner Outer Sleeve: 45#forged steel, tensile strength is σb>610MPa, yield strength is σs>450MPa, ,elongation hardness is §>17%,hardness is HRC180-200
Liner Inner Sleeve: high chromium cast iron (centrifugal forged). Annealing hardness is HRC≤40. Quenching hardness is HRC59-67
Chemical Composition:C 2.8%-3.1%  Cr 26%-28%  Si 0.6%-0.9%  Mn 0.5%-1% Mo 0.5%-0.8% S , P <0.05%;

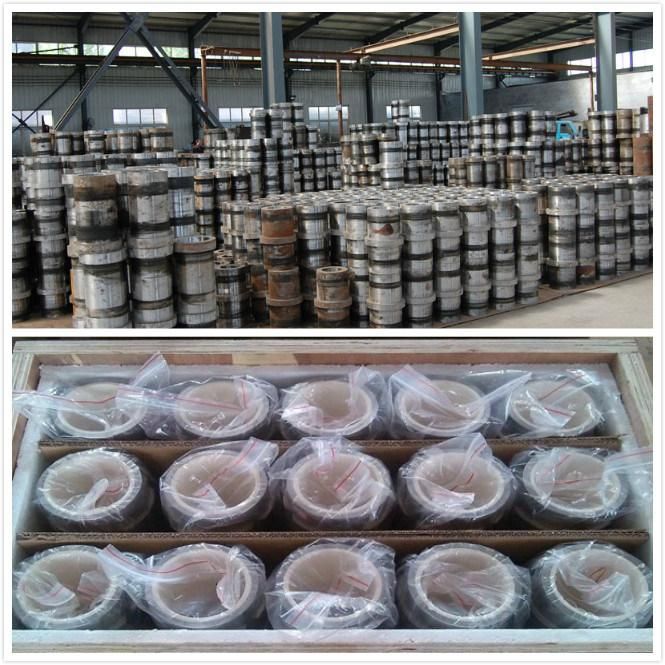

OUR FACTORY


PACKAGE

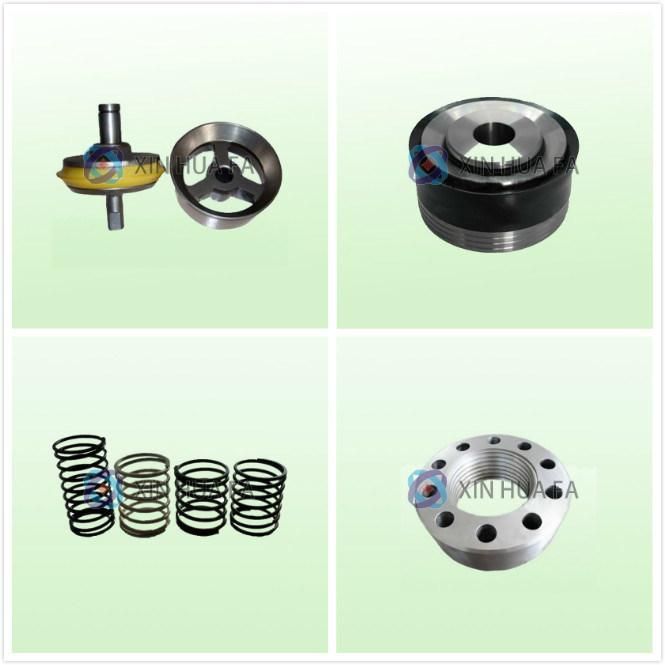

RELATED PRODUCTS
