• Model NO.：F-500,F-800,F-1000,FB-1300,F-1600,PZ-7,PZ-8,PZ-9,
• Liners：for Mud Pump
• Application：Oilfield
• Colour：Customer Requirement
• Transport Package：Container
• Specification：90mm-180mm, 3′′-7 1,2′′
• Trademark：UPET
• Origin：China
• HS Code：8413910000
• Production Capacity：20000 PCS,Year

Basic Info.

Model NO. F-500,F-800,F-1000,FB-1300,F-1600,PZ-7,PZ-8,PZ-9, Liners for Mud Pump Application Oilfield Colour Customer Requirement Transport Package Container Specification 90mm-180mm, 3′′-7 1/2′′ Trademark UPET Origin China HS Code 8413910000 Production Capacity 20000 PCS/Year

Product Description

Quick Details
Warranty:1 YEAR
After-sales Service Provided:Free spare parts, Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support
Condition:New
Applicable Industries:Manufacturing Plant, Machinery Repair Shops, Energy & Mining
Type:F series
Model Number:F1600
product name:cyliner liner
Key words:Diesel
Pressure:35MPA
Standard or Nonstandard:Standard
Theory:Reciprocating Pump
Material:bimetallic
Color:Request
Place of Origin:Shandong, China
Application:mud pump
Work hours:600~800hr

Packaging & Delivery

Selling Units:Single item
Single package size: 60X60X50 cm
Single gross weight:60.000 kg
Package Type:Inside is foam packaging, outside is carton packaging, carton marked with weight, size, name in different languages

Lead Time :

Quantity(Pieces)	1 - 1	>1
Est. Time(days)	1	To be negotiated





F1600 F1300 F1000 F8000 F500 Mud Pump cyliner liner

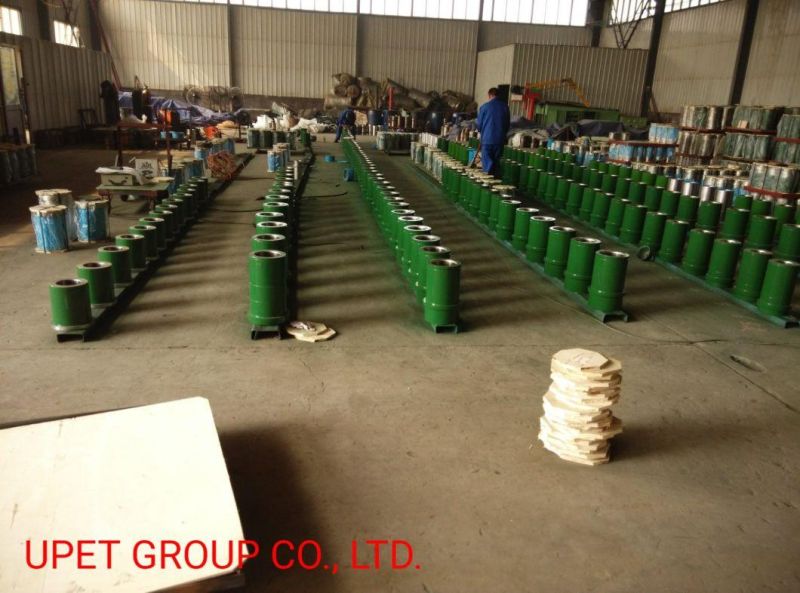

We are a professional supplier of mud pump liners that used on all kinds of mud pumps incluing: China F series Mud Pumps(made by BOMCO, RG, RONGLI, RONGSHENG, HONGHUA), China 3NB series Mud Pumps(made by Lanzhou, Qingzhou),  EMSCO, GARDNER DENVER, NATIONAL, OILWELL, IDECO etc.

China F series Mud Pump: F-500, F-800/1000, F-1300/1600
China 3NB series Mud Pump: 3NB-350, 3NB-500, 3NB-600, 3NB-800, 3NB-1000, 3NB-1300, 3NB-1600
EMSCO:F-350, F-500, F-650, F-800, F-1000, FA-1300, FB-1300, FA-1600, FB-1600
GARDNER DENVER: PZ-7, PZ-8/9, PZ-10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP
NATIONAL: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400
OILWELL:A-560/600-PT,A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
IDECO: T-500, T-800, T-1000, T-1300, T-1600
And other brand liners for WIRTH, OPI, ELLIS WILLIAMS, WHITE STAR etc.

Bi-metal Liners
The bi-metal liner is composed of two layers and fixed tightly. The outer sleeve is forged steel with abrasion resistance, it adapts the technology of centrigugal forging;  the inner sleeve is high chromium iron with wear&corrosion resistance, after heat treatment, the hardness of it can reach to a lever of 62 RC.
The bi-metal liners produced by us strictly control the tolerance, assure the easy installation, inner sleeve is highly polished with abrasion&corrosive resistance, can used in various bad working environment with longer service life.
Liner Outer Sleeve: 45#forged steel, tensile strength is σb>610MPa, yield strength is σs>450MPa, ,elongation hardness is §>17%,hardness is HRC180-200
Liner Inner Sleeve: high chromium cast iron (centrifugal forged). Annealing hardness is HRC≤40. Quenching hardness is HRC59-67
Chemical Composition:C 2.8%-3.1%   Cr 26%-28%  Si 0.6%-0.9%           Mn 0.5%-1%        Mo 0.5%-0.8%   S , P <0.05%;
Ceramic Liners
The ceramic liner is composed of two layers and fixed tightly. The outer sleeve is forged steel with abrasion resistance, the inner sleeve is ceramic.
The ceramic liner seems expensive but actually cut the cost of running mud pumps. Our ceramic liners are proved has a service life of 4000 hours.
Chromium-plated Liners
The chorme-plated liner is made from premium forged steel with the bore plated by chrome. the hardness is 58-62HRC.
Material is 45#forged steel, tensile strength is σb>610MPa, yield strength is σs>450MPa, ,elongation hardness is §>17%,hardness is HRC180-200.(the hardness of the casted outer sleeve is HRC160-200 )
High Frequency Quenching Liners
The high frequency quenching liner is suitable to use in the condition of mild corrosive mud.
The liners are hardened and heat treated under strict quality control, the hardness can reach to a level of 60HRC.
The inner sleeve is highly polished, abrasion&corrosion resistance, thus have a long service life.
Package:
We can do different packages to the liners according to the customer's requirement so as to take convenient for the customer.







Company Information

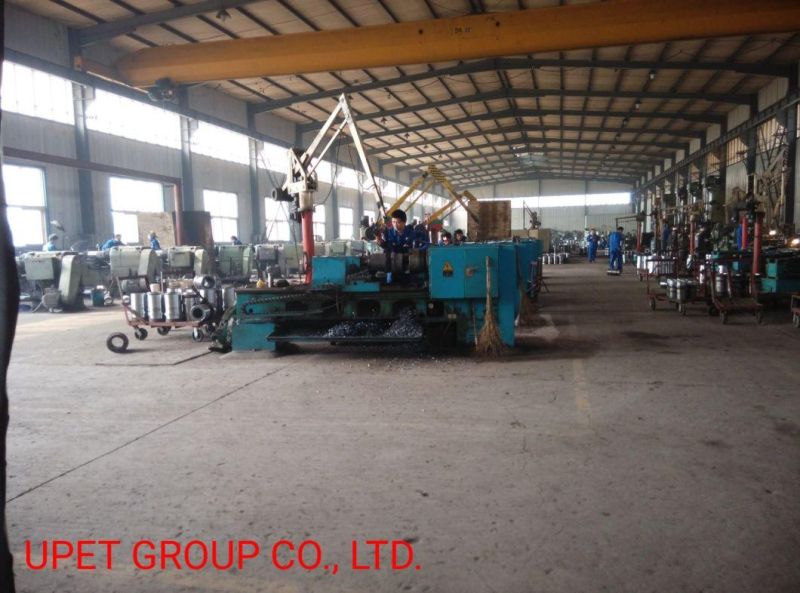

UPET OILFIELD EQUIPMENTS CO.,LTD is one of the most well-known suppliers for the oilfield equipments in China, was established in 2000, and now has grown up to a star company which is not big but very strong in this field with our persistant effort step by step in the past years.Our products refer to the whole areas of oilfields, from a very small spare part to a very big complete rig system. Our main products are: pump spare parts, mud pumps&packages, DC/AC Motors, solid control equipments, power units, truck-mounted rigs, workover rigs, land rigs, drilling pipes and drilling tools etc. All of our products are manufactured according to the API Standard, and we are authorized to use API monogram.
