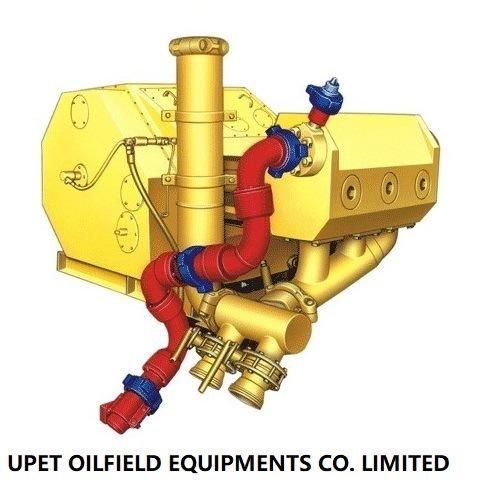

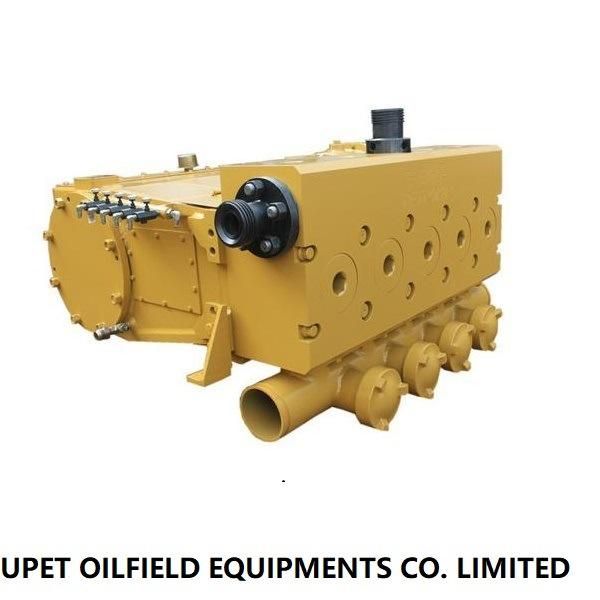

3zb-450 Triplex Plunger Pump for Oilfield
UPET GROUP CO., LTD.- Certification：CE, ISO 9001:2000, ISO 9001:2008, API
- Power Source：Electric&Engine
- Operation Pressure：3500psi-7500psi
- Material：Cast Steel&Forged Steel
- Type：Triplex Piston Drilling Mud Pump
- Mud Pump：Professional Supplier of Drilling Mud Pump
Base Info
- Model NO.：3ZB-450
- Warranty：1 Year
- Colour：Customer Requirement
- Appliaction：Oilfield
- Transport Package：Container
- Specification：8Ton-26Ton
- Trademark：UPET
- Origin：China
- HS Code：8413509090
- Production Capacity：120 Sets,Year
Description
Model3ZB-450Long pump 3ZB-450Short pump Maximum input power 447KW(600hp) Maximum link load 445000N(100000lbs) stroke 152.4mm(6″) Maximum strokes 450rpm Gearbox transmission ratio 4.61:1 shape size: 1626×1366×607mm 1292×1366×607mm L×M×H 64″×53.78″×32.28″ 50.87″×53.78″×32.28″ weight 2492Kg(5489lb) 2155Kg(4751lb) 120 200 300 450 Plunger diameter displacement GPM(L/min) Pressure psi(MPa) displacement GPM(L/min) Pressure psi(MPa) displacement GPM(L/min) Pressure psi(MPa) displacement GPM(L/min) pressure psi(MPa) In(mm) 3″ 66 14098 110 8456 165 5642 248 3756 -76.2 -250 -97.2 -417 -58.3 -625 -38.9 -938 -25.9 3-1/2″(88.9) 90 10341 150 6208 225 4148 337 2756 -341 -71.3 -568 -42.8 -851 -28.6 -1277 -19 4″ 118 7919 196 4757 294 3176 441 2118 -101.6 -445 -54.6 -741 -32.8 -1112 -21.9 -1668 -14.6 4-1/2″(114.3) 149 6266 248 3756 372 2509 558 1668 -563 -43.2 -938 -25.9 -1407 -17.3 -2111 -11.5
