Petroleum Equipment & Machinery

Home > Product > Cementing Tool

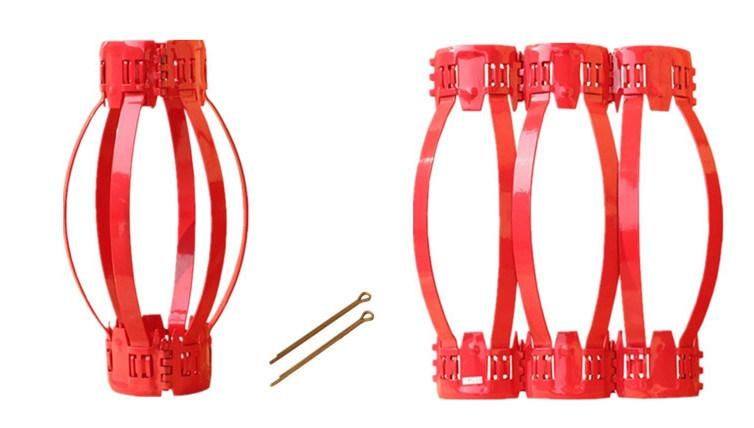

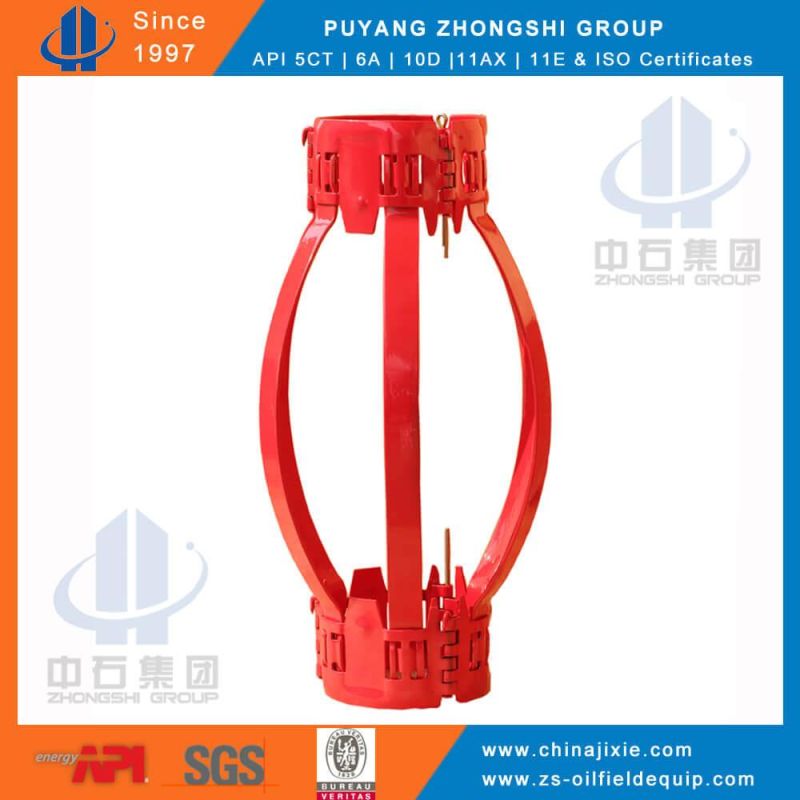

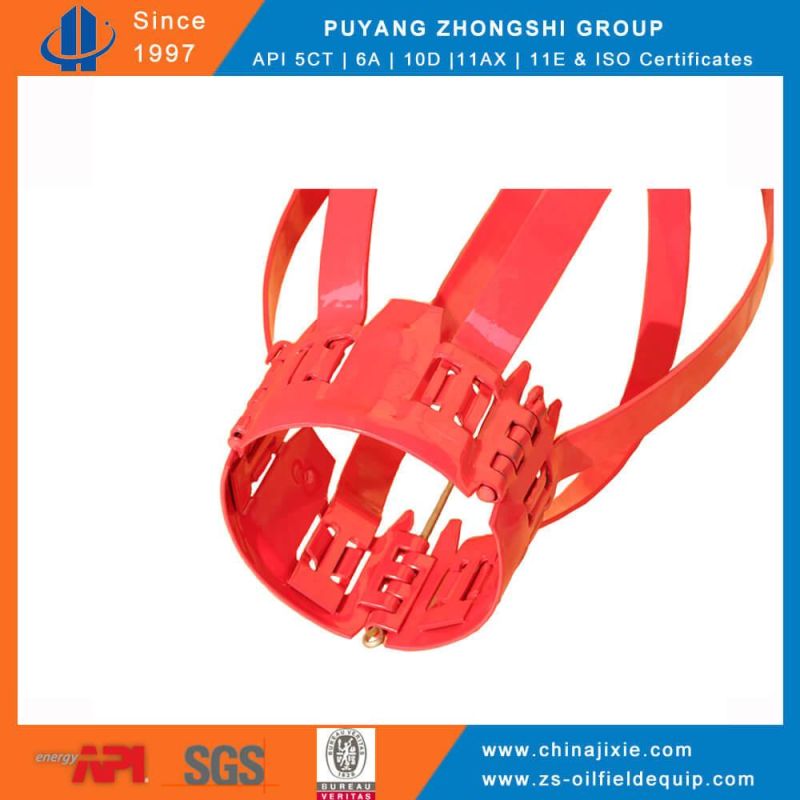

Slip on Welded Bow Spring Casing Centralizer

Puyang Zhongshi Group Co., Ltd.
  • Certification：ISO 9001:2000, ISO 9001:2008, API 10d
  • Surface Treatment：Spray-Paint
  • Centralizer Type：Elastic
  • Structure：Slider
  • Material：Cast Steel
  • Type：Centralizer

Base Info

  • Model NO.：5 1,2′′*8 1,2′′
  • Color：Red
  • Length：300mm
  • Bows：6PCS
  • Samples：Available
  • Markings：Available
  • ODM：Available
  • Transport Package：Wood Cases
  • Specification：5 1,2′′*8 1,2′′
  • Trademark：ZS
  • Origin：China
  • HS Code：843143100
  • Production Capacity：10000PCS,Month

Description

Model(in)

Hooping In-Dia

(mm)

Hooping

thickness(mm)

Hooping height(mm)

Total Length(mm)

Max. Out-Dia.(mm)

Spring

Pieces

5-1/2*8-1/2

142-148

3-5

90-120

650±50

225±5

5

7*9-5/8

181-186

3-5

90-120

650±50

255±5

6

7*8-1/2

181-186

3-5

90-120

650±50

235±5

6

8-5/8*12-1/4

223-228

3-5

90-120

650±50

330±5

8

9-5/8*12-1/4

250-255

3-5

90-120

650±50

330±5

8

10-3/4*12-1/4

274-276

3-5

90-120

650±50

330±5

9

13-3/8*17-1/2

342-347

3-5

90-120

650±50

450±5

11

18-5/8*24

476±1

3-5

90-120

600±50

610±5

12

20*26

510±1

3-5

90-120

600±50

660±5

12
