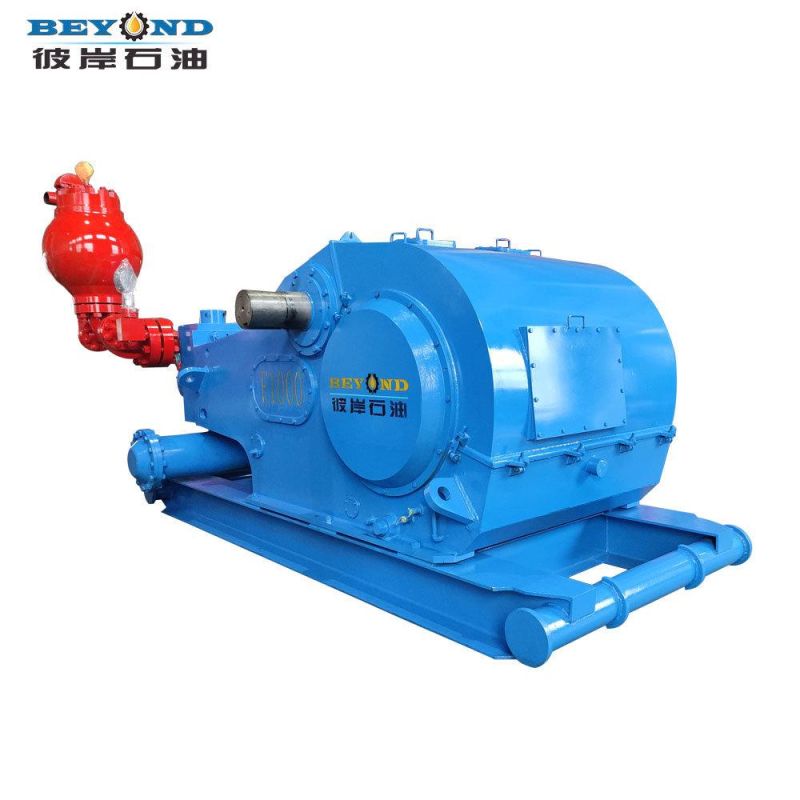

F1600 Mud Pump for Oil Drilling Rig API
Shandong Beyond Petroleum Equipment Co., Ltd.- After-sales Service：1year
- Warranty：1 Year
- Certification：API
- Power Source：Hydraulic
- Operation Pressure：5000psi
- Applicable Medium：Mud
Base Info
- Model NO.：F1600
- Structure：Horizontal
- Power Rating(Kw)：1600 (1193)
- Stroke Rating(Rpm)：120
- Stroke Length(in /mm)：12”,305
- Gear Ratio：4.206
- Valve Size：API7#
- Max. Liner Size(in/mm)：7",180
- Max. Liner Pressure："5000psi (34.5MPa)"
- Max. Displacement(L/S)：737gpm
- Transport Package：Export Packing
- Specification：24791kg
- Trademark：Beyond Petroleum
- Origin：China
- HS Code：8413810090
Description
C/W:
Pulsation dampener Model: KB -75/Capacity: 75.7 liter (20 Gallon), fully equipped with connection flange, gauge, nitrogen charging device, etc.
Relief valve Model: JA-3 shear relief valve with key
Pressure gauge: Yk-150 0-60MPA
Pinion belt driven liner wash pump ASSY C/W all required accessories (wash pump, belt guard, hoses, recirculation tank ….) for cooling the liners' pistons
Jib crane with hand hoist and trolley, to handle different weights
Quality Guaranteed for One Year
Pulsation dampener Model: KB -75/Capacity: 75.7 liter (20 Gallon), fully equipped with connection flange, gauge, nitrogen charging device, etc.
Relief valve Model: JA-3 shear relief valve with key
Pressure gauge: Yk-150 0-60MPA
Pinion belt driven liner wash pump ASSY C/W all required accessories (wash pump, belt guard, hoses, recirculation tank ….) for cooling the liners' pistons
Jib crane with hand hoist and trolley, to handle different weights
Quality Guaranteed for One Year
