• Model NO.：NJ360-35
• Applicable Medium：Hydraulic Oil
• Structure：Horizontal
• Material：Alloy
• Pipe Range：5"~14"
• Rated Torque at Low-Gear：14kn.M
• Rated Torque at High-Gearow Gear：35kn.M
• Rated Speed of High Gear：24r,Min
• Rated Speed of Low Speed：8r,Min
• Max Flow：160L,Min
• Weight：3200kg
• Dimension：950×1020×1160mm
• Transport Package：Plywood Box
• Specification：NJ360
• Origin：Jiangsu China
• HS Code：8413910000
• Production Capacity：1000units Per Year
• Package size per unit product：2000.00cm * 120.00cm * 100.00cm
• Gross weight per unit product：2000.000kg

Basic Info.

Model NO. NJ360-35 Applicable Medium Hydraulic Oil Structure Horizontal Material Alloy Pipe Range 5"~14" Rated Torque at Low-Gear 14kn.M Rated Torque at High-Gearow Gear 35kn.M Rated Speed of High Gear 24r/Min Rated Speed of Low Speed 8r/Min Max Flow 160L/Min Weight 3200kg Dimension 950×1020×1160mm Transport Package Plywood Box Specification NJ360 Origin Jiangsu China HS Code 8413910000 Production Capacity 1000units Per Year

Packaging & Delivery

Package size per unit product 2000.00cm * 120.00cm * 100.00cm Gross weight per unit product 2000.000kg

Product Description

NJ360-35 premium thread  tubing/ casing coupling bucking unit is the special equipment applied to the processing of premium thread oil pipe. It is also applied to the coupling screw of the premium thread such as FOX, RTR,NK3SB,VAM,BGT as well as the common thread .
With slight mark and the depth of being less than 0.05mm, the floating arm tong is able to inspect the make-up torque precisely and display the torque of inflection point clearly during the make-up process. It changes speed automatically during the make-up process and the low rotation speed is lower than  5r/min. It is thus applied to the processing demand of premium threads.

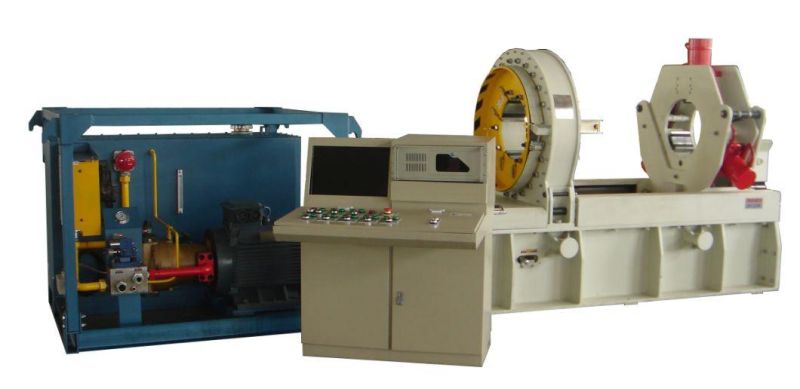

One unit contains  below  equipment:

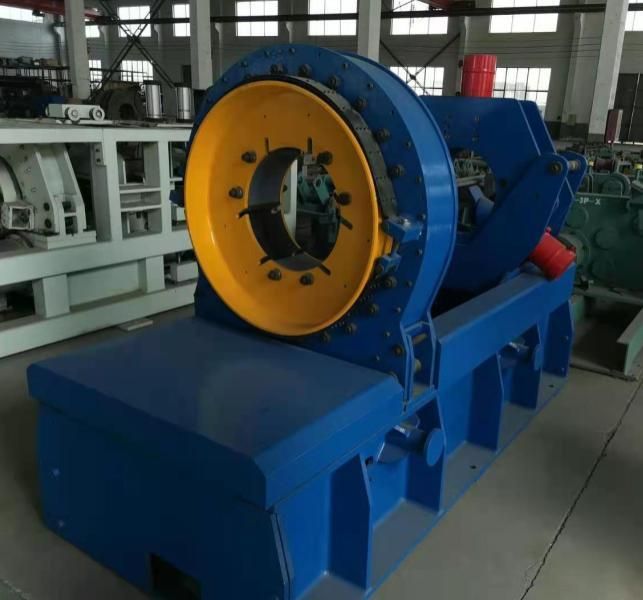

                Tubing/ casing  coupling  bucking machine

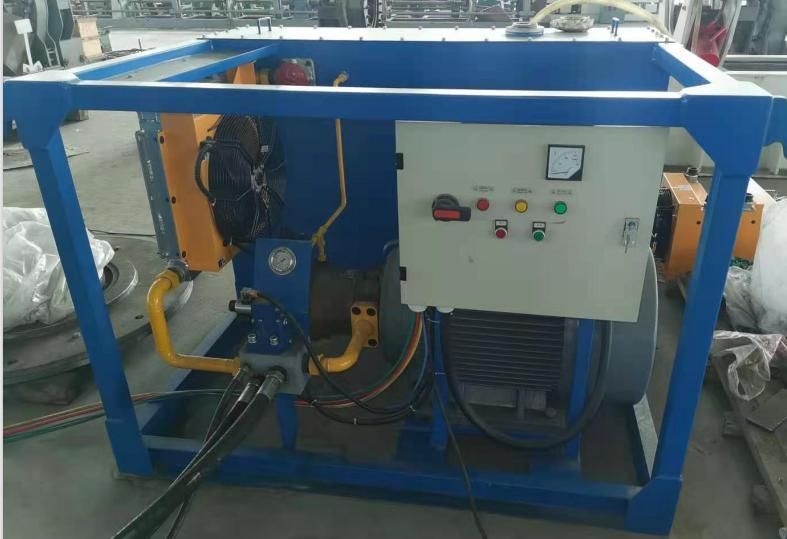

                                Hydraulic  power station

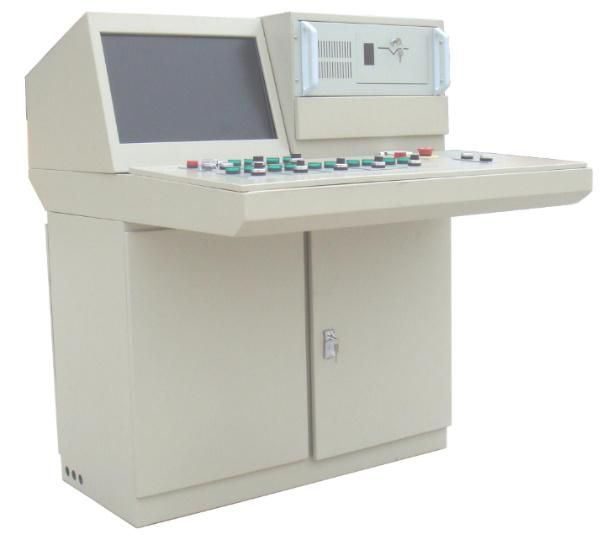

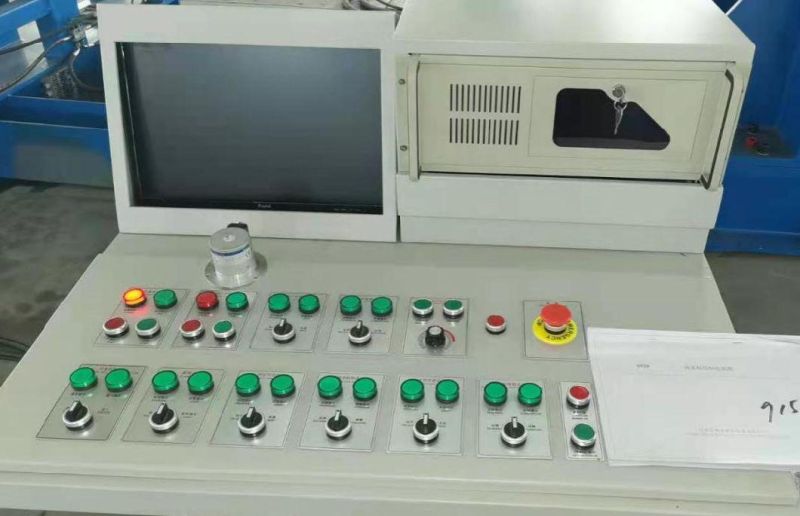

                                            Torque control system
