• Model NO.：2D80W-340,2.2~27.5
• Product Name：Natural Gas Compressor
• Model：2D80W-340,2.2~27.5
• Compressed Medium：Recycle Hydrogen Gas, Regenerated Hydrogen Gas
• Flow Rate：340nm3,Min
• Shaft Power (Kw)：241kw
• Inlet Pressure ( MPa)：2.2bar (G)
• Exhuast Pressure (MPa)：27.5bar (G)
• Cooling Method：Water Cooling Customized
• Speed：420rpm,Min
• Performance：Low Noise

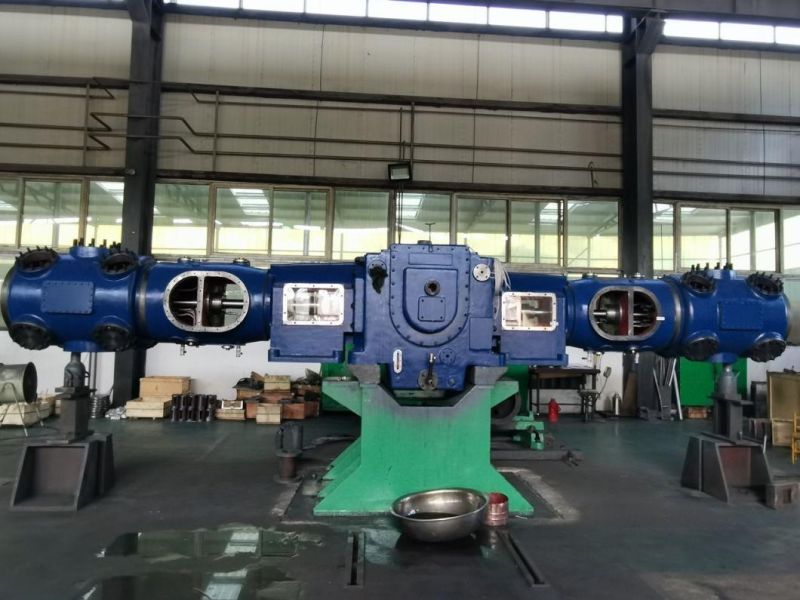

• Structural Style：D-Type, Water Cooling Industry Compressor
• Application：Petrochemicals Compressor
• Valve Brand：Hoerbiger Valve
• Performance 1：Explosion-Proof Motor
• Lubrication Type：Oil Free, Oil-Less
• Transport Package：Wooden Package, by Sea
• Specification：3200x1300x3150mm
• Trademark：2800kgs
• Origin：China
• HS Code：84148090
• Production Capacity：200sets,Month

D type Diaphragm Compressor Technical ParametersNo.Model Compressed mediumF.A.D (Nm3/min)Inlet Pressure
( Mpa)Exhuast Pressure
(Mpa g)Power
(KW)Speed
r/minDimension
(L×W×H)mmN.W
Weight (t)  Voltage
V12D3.5W-14/0.3~6Regenerated hydrogen gas14N0.030.6904855200*1800*2500838022D3.5W-5.7/6.5Regenerated gas5.7N0.020.65454855200*1800*25005.538032D3.5W-17/0.4~12.5Synthetic tail gas17N0.041.251324855200*1800*25005.538042D3.5W-20/5Feed gas20N0.0020.51324855030*2000*25504.538052D3.5W-25/9~49Replenish hydrogen25N0.94.91324855400*3500*2200838062D3.5W-79/26~49Recycle hydrogen79N2.64.91604855400*3500*2030838072D3.5W-20/0.1~6Feed hydrogen20N0.010.61324854750*2200*25504.538082D3.5W-54/0.02~0.5coal gas540.0020.051105854560*1800*25505.538092D3.5W-16.7/0.2~8Synthetic tail gas16.7N0.01~0.040.81324854600*1950*22004.5380102D3.5W-36.7/0.3~2.8Analytical gas36.7N0.030.281604854190*1800*24905380112D3.5W-82/12~22Recycle hydrogen82N1.22.21604854300*1300*17405.5380122D5.5W-30/8coal gas30NMicro positive pressure0.82205853857*1528*25056.5380132D5.5W-40/8Coke oven gas40Atmospheric pressure 0.82505853935*2020*25856.5380142D5.5W-40/8~111Coke oven gas40N0.002~0.0150.82805853935*2020*25856.5380152D5.5W-80/3.5~12.5Rich gas80N0.351.252804854502*1750*19657380162D5.5W-72/2.5~8.5Regenerated gas72N0.250.852504854040*1750*23806.510000172D5.5W-30/0.1~7Hydrogen30N0.010.72004854420*1750*27706.510000182D8W-44/10.2Reaction gas44Micro positive pressure1.023154964828*1924*27508.76000192D8W-65/8~25Nitrogen gas65N0.82.52504904900*3645*227011415 Test and inspection

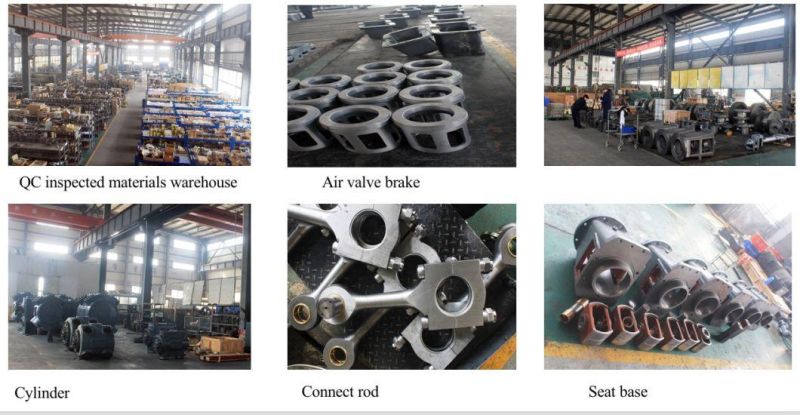

1. Part Material Inspection: Before shipment inspecting the mechanical properties and chemical composition of the following parts and provide inspection reports: cylinder, cylinder head, crankshaft, crankcase, main bearing, connecting rod, piston rod, piston rod, cross head, connecting rod bush connecting bolt, cross head pin, etc.
2. Nondestructive inspection: the supplier shall perform non-destructive inspection of the following parts.
Hydrostatic test and pressure test
The test pressure of cylinder block, cylinder head, piston and other compressed parts is at least 1.5 times of the maximum allowable working pressure, and lasts more than 30 minutes. The test pressure of the above parts of the water chamber is at least 1.5 times the maximum allowable working pressure, not less than 0.6MPa.





Our services:
Keepwin Provides Top-Rated, Efficient Reciprocating Compressors And Parts. Energy Efficient. Industry Leading Warranty. Low Maintenance. Gas Solution Engineer and Easy Install, promises to give a definite reply within 6 hours for the after-sales product service, can provide overseas Installation service. We can customize all kinds of standard air compressor, flammable gas compressor, toxin gas compressor of reciprocating compressor & diaphragm compressor.

What is advantages of our company?
Right Compressor Right Solution Gas Engineer Company
Whether centrifugal, screw or reciprocating, Keepwin is the sole multi-compressor provider for you.
The Best Quality, The Most Reliability
What is need to consider when purchase a correct compressor Upgrade Your Gas Compressor to Save Money & Energy Consumption Gas compressors are a vital part of many industry applications.
Save money and energy in your industrial workplace by upgrading your gas compressor today!






FAQ
Q1: What's your delivery time?
A: Generally for standard air compressor is 15 days if there are stocks with regular 380V/50Hz/3ph.
    Special customizing compressors with 30days production date for Screw Compressor, 90days for diaphragm compressor & reciprocating process gas compressor.

Q2: How long is your air compressor warranty?
A: Usually 1 year /12 Months for whole compressor machine, 2years/24months for air end (except maintenance spare parts.). And we can provide further warranty if necessary.

Q3: How long could your air compressor be used?
A: Generally, more than 10 years.

Q4: Can you do OEM for us?
A: Yes, of course. We have around two decades OEM experience.And also we can do ODM for you.

Q5: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, Trade Assurance and etc. Also we could accept USD, RMB, GBP, Euro and other currency.

Q6: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.

Q7: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas after-sales service.

Q8. Are you factory?
A4: Absolutely! You have touched the primary sources of Air /Gas Compressor. We are factory.

How to contact with us?
Send your Inquiry Details in the Below, or Click "Send inquiry to supplier" to check more other Gas Compressor machine equipment!
