• Model NO.：BBES703
• Type：Drilling Fluid Shale Shaker
• Ex Standard：Exdllbt4
• Vibration Motor：Bem Motion..
• Application：Oil&Gas Drilling, Trenches Drilling
• Transport Package：Pallet
• Specification：BBES703
• Trademark：BOBAN & OEM
• Origin：China
• HS Code：8474809090
• Production Capacity：30 PCS Per Month

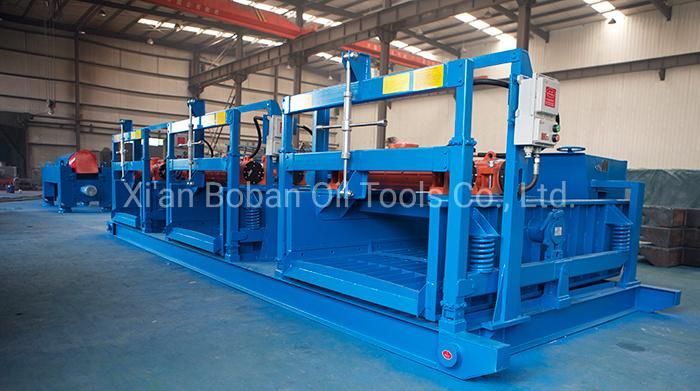

Shale shaker is an ideal and effective solid control equipment for high-capacity treating in the heavy loading and tough drilling conditions , its easy to maintain, the single side screens tension system make it easy to change the screens.

Balanced elliptical motion shale shaker is abbreviated as BEM shale shaker. Due to its strong excitation force and large amplitude, it can better handle large drilling mud and obtain ideal finished drilling fluids. Boban adopts a long tube excitation motor as the power source, with superior performance, reasonable structure, stable operation, long life, and low maintenance cost. Under the same conditions, compared with other types of vibrating screens, the drilling fluid processing capacity and the ability to transport sand and debris can be improved to a large extent, and can effectively overcome the phenomenon of "screening blockage" and "screening paste".

Boban series shale shakes are widely used in oil and gas drilling, CBM drilling, geothermal drilling, drilling waste management, river silt treatment, and the modern trenchless infrastructure construction, including tunneling, micro-tunneling, pipe-jacking, bored piles construction, piling construction and diaphragm wall construction., etc.

1. Rich experienced technical team, BOBAN balanced elliptical trajectory can effectively reduce the blocking of the screen holes and ensure the screen penetration rate.
2. Offerring high quality products at competitive price.
3. Shortest delivery time.
4. Flexible payment terms.
5. Timely after-sale service.
6. We are qualified vendor of many well-known O&G drilling companyies in different countries, include but not limited: Italy, Romania, Poland, Egypt, Nigeria, Kuwait, UAE, India, etc.

Balanced Elliptical Motion

Treatment Capacity

130m³/h(572GPM)

140m³/h(616GPM)

Motor Power

1.94+1.0kw

1.94+1.0kw

Screen Specs.

(700×1250mm)×3

(585×1165mm)×4

Screen Area

2.6m²

2.7m²

Vibration Strength

≤7.1G(adjustable)

≤7.1G(adjustable)

Double Amplitude

7mm

7mm

Deck Adjustment

-1°~+5°

-1°~+5°

Ex Standard

ExdII Bt4 / IECEX / ATEX

Weight

1630kg

1618kg

Dimension

2770×1785×1690mm

2966×1600×1280mm

Remark

Above data are tested from the drilling mud with viscosity 45s and specific gravity of 1.2g/cm3.
