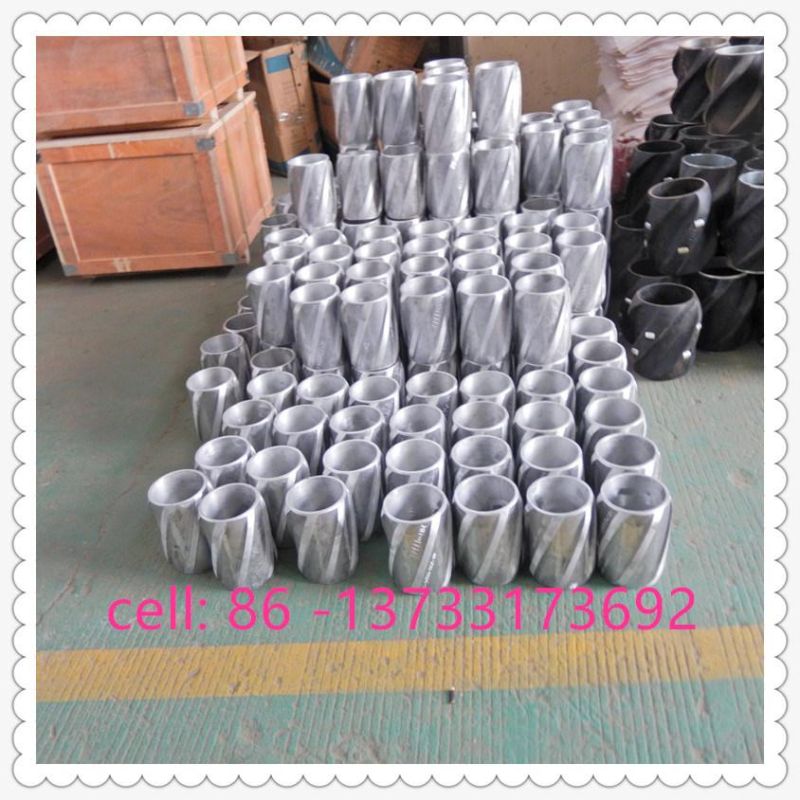

Oilfiedl Zinc Alloy Spiral Vane Solid Body Rigid Centralizer
Puyang Zhongshi Group Co., Ltd.- Certification：ISO 9001:2000, ISO 9001:2008
- Surface Treatment：Galvanized
- Centralizer Type：Rigid
- Structure：Slider
- Material：Aluminum ,Zinc Alloy
- Type：Centralizer
Base Info
- Model NO.：7"*8 1,2"
- Size：7"*8 1,2"
- Sample：Available
- Drawings：Available
- Height：200mm
- Markings：Available
- Color：Silver
- Blades：6PCS
- Coatings：Acceptable
- Transport Package：Wood Cases
- Specification：4 1,2"-20"
- Trademark：zs
- Origin：China, Henan
- HS Code：843143100
- Production Capacity：2000PCS,Month
Description

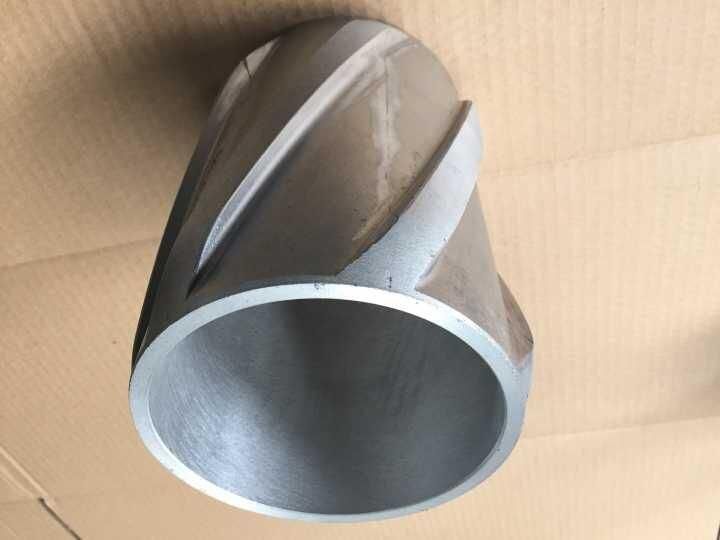

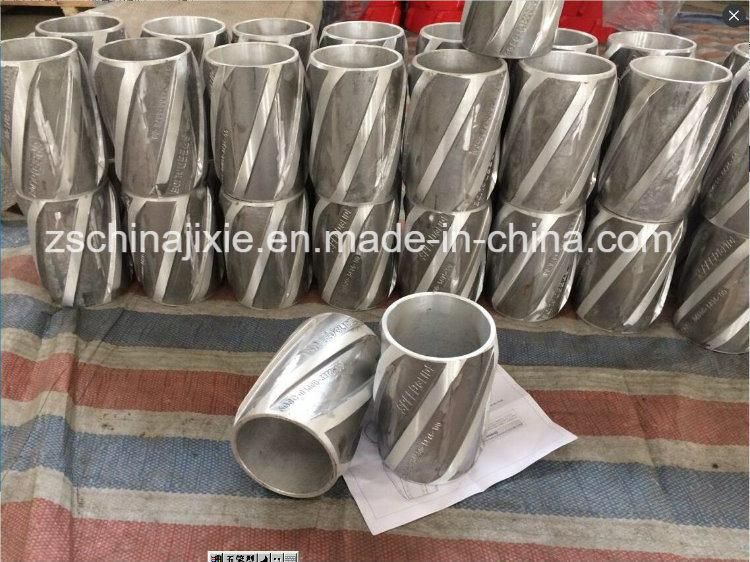

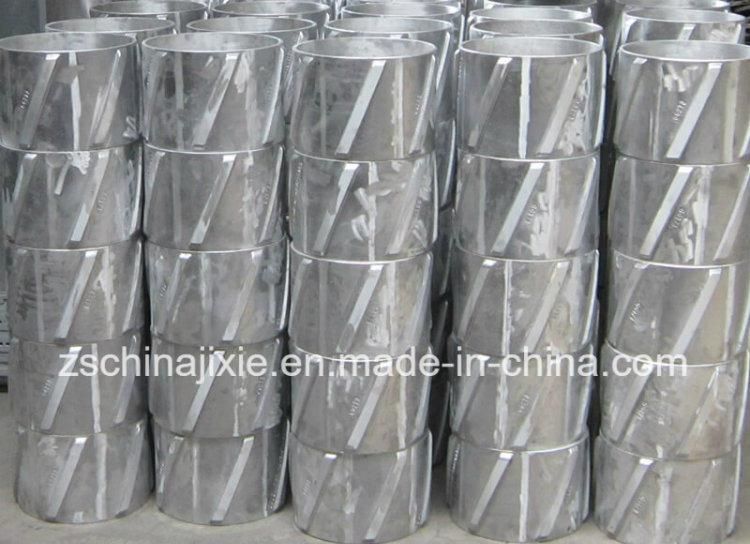

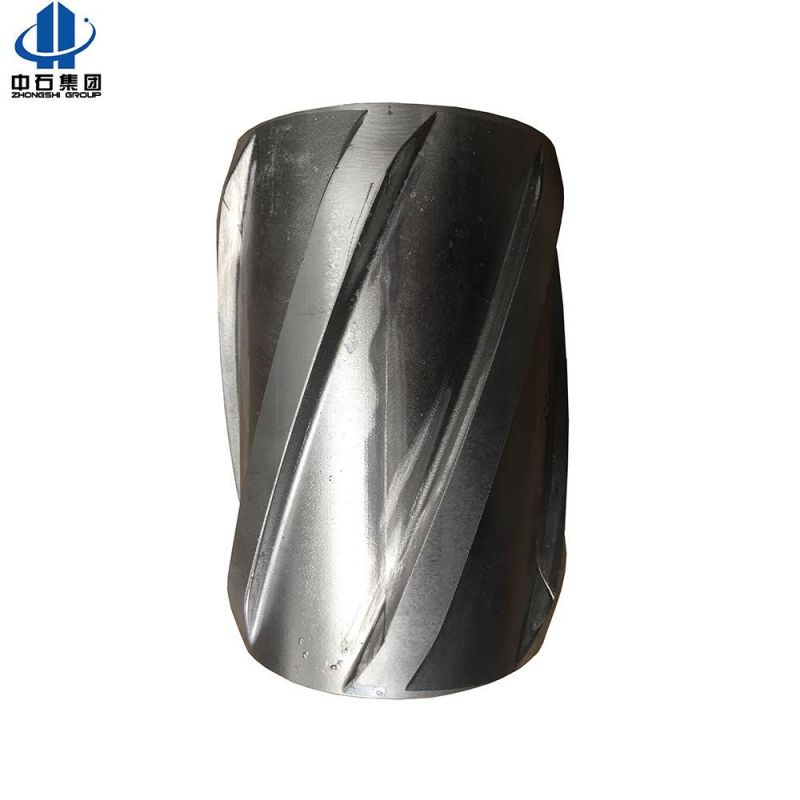

Spiral Vane Roller Casing Rigid Centralizer consists of rigid body, on which machined spiral blades.
There are thermoplastic, fully heat treated rollers fixed on every spiral blades.
Because of rigid body and rolling friction between the rollers and inside of well or casing.
The capability of the roller Centralizer is better than others of all. Roller/Wheeled centralizers are mainly used for big high Roller, high deviated wells and horizontal wells, to centre casings.
Features
1. Spiral blades increase annular turbulence.
2. With the shape of stream-lined, it enables casing run easily in wellbore.

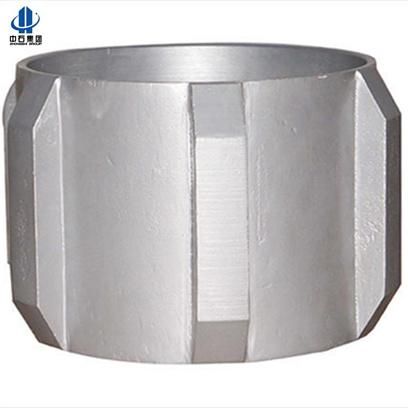

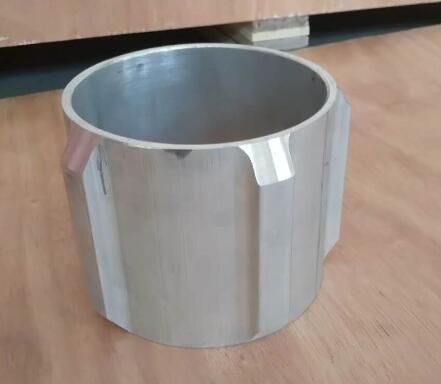

3. Both straight blade and spiral blade are available.
4. The material can be cast steel or cast aluminum.
This centralizer should be used in areas where a good primary cementing job is required, including deviated and horizontal wells, liner overlaps, and shoe joints. They are suitable for either cased or open hole. These are made of high tensile, solid, cast aluminum, for shock, impact, and corrosion resistance.
Vane ends are beveled 30 degrees relative to casing centerline to provide excellent lead into restrictions, and reduced drag when running into hole. Wide vanes distribute load from the casing string into the wellbore without gouging. It is made of softer material than wellhead equipment to avoid damage to the wellhead when running through. Has provided excellent results in extended reach and horizontal applications. The design of the vanes keeps running forces at a minimum. Any special sizes or combination can available on request.
