• Model NO.：9 5,8"
• Surface Treatment：Spray-Paint
• Centralizer Type：Elastic
• Structure：Integral
• Material：Alloy
• Type：Centralizer
• Transport Package：Export Wooden Box
• Specification：9 5,8"
• Trademark：ds
• Origin：China
• HS Code：8431431000
• Production Capacity：50000 PCS, Year
• Package size per unit product：12.00cm * 25.00cm * 65.00cm
• Gross weight per unit product：5.000kg

Basic Info.

Model NO. 9 5/8" Surface Treatment Spray-Paint Centralizer Type Elastic Structure Integral Material Alloy Type Centralizer Transport Package Export Wooden Box Specification 9 5/8" Trademark ds Origin China HS Code 8431431000 Production Capacity 50000 PCS/ Year

Packaging & Delivery

Package size per unit product 12.00cm * 25.00cm * 65.00cm Gross weight per unit product 5.000kg

Product Description

1. Description
Casing Centralizer is a device used to place the casing at the center of the hole so as to improve the efficiency of the cementing. Super-strength spring steel is applied to centralize casing in wellbore,and improve cementing quality. It is an important device because if the Casing Centralizer touches the formation at any part of the hole, then cement slurry does not pass through the area of the contact resulting in a poor cementing job.

2. Types of centralizer we can offer
There are various types of Casing Centralizers used in the oil & gas industry, mining industry, but there are two primary types of centralizers normally be used : bow spring centralizer and rigid centralizer.

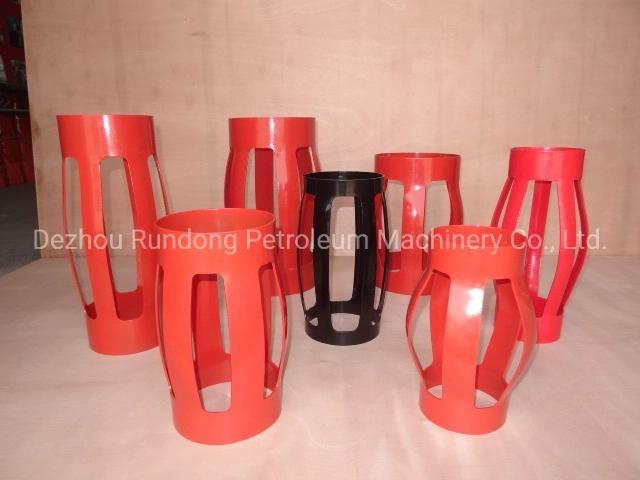

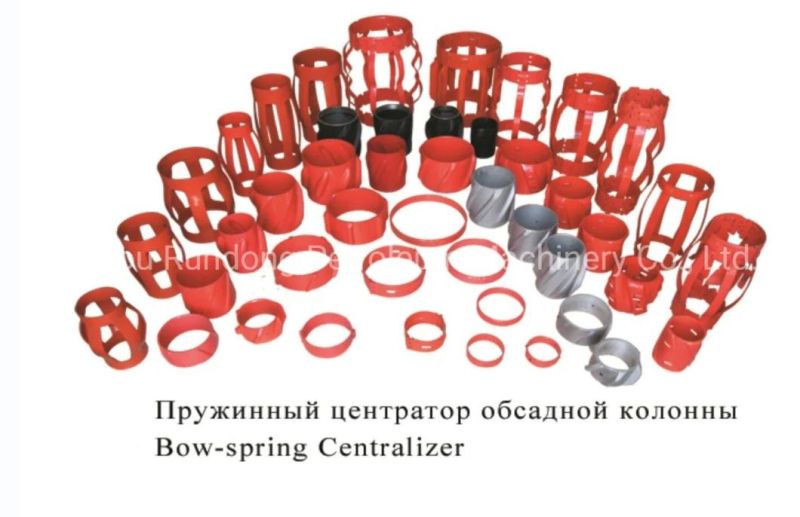

 Bow-Spring Centralizer
This type of centralizer is a bow-shaped metal strip used to centralize the casing in a borehole so as to improve the efficiency of cementing.
Bow spring centralizers are slightly larger in diameter than the well bore, so they become slightly compressed when inserted into the well bore. Bow spring centralizer are the most using type centralizers in the world. They are often used in vertical wells as there is near zero deviance in annular space about the tool. As per structure of the righting strip,the elastic centralizer can be divided into single bow centralizer and a double bow centralizer. Rigid Centralizer

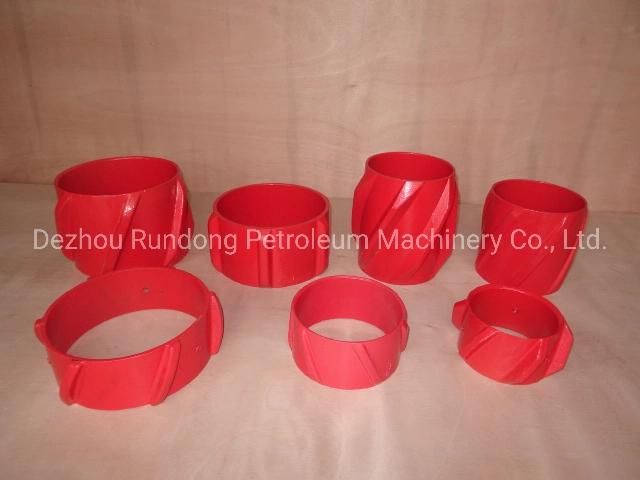

This type of centralizer is built using steel or cast iron and works well with the deviated wellbores. It is not as effective as bow-spring centralizers.
Rigid centralizers are slightly smaller than the well bore. Rigid centralizer are more commonly used in deviated or horizontal well bores where the weight of the casing string would cause a bow spring centralizer to experience eccentric compression which could jeopardize the seal. The rigid casing centralizer can be divided into ordinary rigid centralizer and roller rigid centralizer.
3. Features of our centralizer
1,Every attachment is pressed into shape by moulding instead of welding and rivet.
2,3-section structure for easy transport.
3,Starting force and restoring force conform to API standards.
4,Easy-and-convenient to use.
5,Alternative turbulence plates can effectively improve displacement efficiency.

4. More details parameters

Specification	Number of slice	Max OD (mm)	ID (mm)	Length (mm)
DS-41/2"×6"	4	160	116	450/575
DS-4 1/2"×6 1/4"	4	167	116	450/575
DS-4 1/2"×7 7/8"	4	210	116	450/575
DS-4 1/2"×8 1/2"	4	230	116	450/575
DS-5"×6"	4	160	128	450/540
DS-5"×6 3/4"	4	180	128	450/575
DS-5"×7 7/8"	4	210	128	450/575
DS-5 1/2"×7 7/8"	5	210	140	450/575
DS-5 1/2"×8 1/2"	5	216/245	140	450/575
DS-5 1/2"×8 3/4"	5	222/250	140	450/575
DS-5 1/2"×9 7/8"	5	251/264	140	450/575
DS-51/2"×91/2"	5	242/264	140	450/575
DS-7"×8 1/2"	6	216/230	179	450/575
DS-7"×8 3/4"	6	222/233	179	450/575
DS-7"×9 1/2"	6	242/264	179	450/575
DS-7"×9 7/8"	6	251/264	179	550/650
DS-9 5/8"×12 1/4"	8	346	245	550/650
DS-9 5/8"×13 3/8"	8	346/352	245	550/650
DS-9 5/8"×12 13/16"	8	378	245	550/650
DS-10 3/4"×15 1/2"	9	405	275	550/650
DS-φ273.05×φ374	9	374	275	550/650
DS-13 3/8"×17 1/2"	10	440/446	342	550/650
DS-13 5/8"×17 1/2"	11	440/466	342	550/650
DS-20"×26"	17	696	510	550/610/650

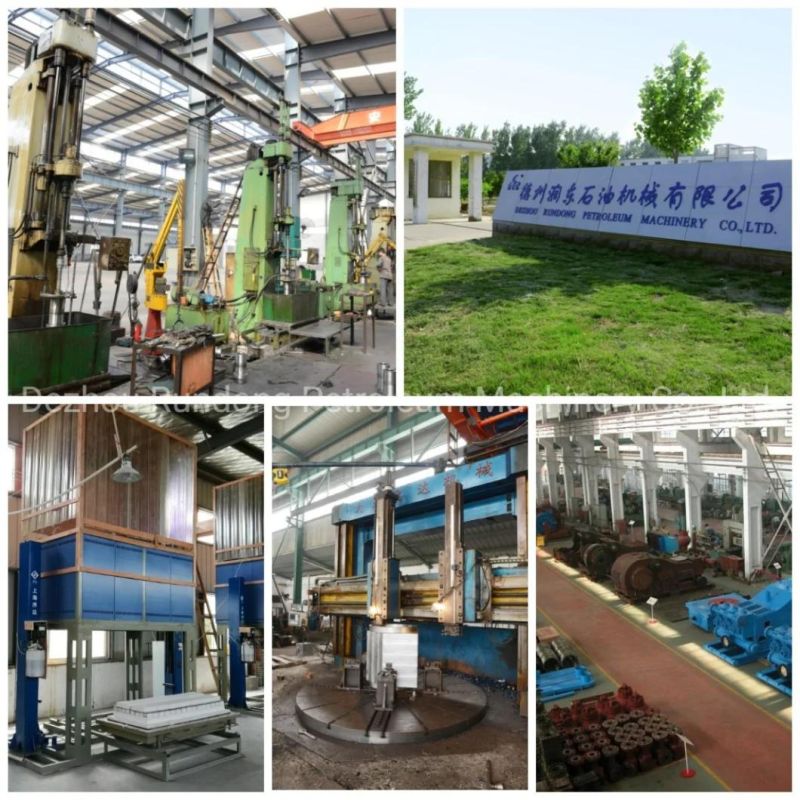

5. Overview of Company
Dezhou Rundong Petroleum Machinery Co., Ltd is a professional company with 18 years history in manufacturing of petroleum machinery products. Our company has an area of 17500 square meters, 12 technical personels, 18 quality inspection personels, 126 workers and 9 patents. Annual output value is up to USD $14 million. After comparing with foreign famous brand products during testing on offshore of COSL and various oilfields , some products enjoy the same quality level with them both in processing technic and service life. Our company has made excellent contribution in pushing Chinese petroleum machinery industry forward.

6. Pacakge of our products


7. Our certificates & patents

8. Customers' visiting shows

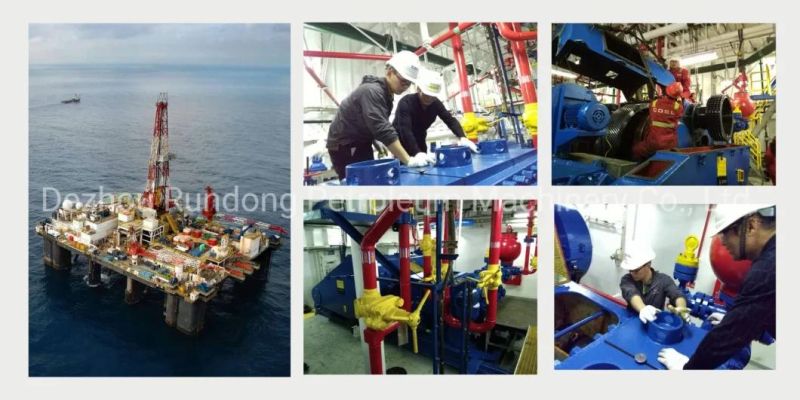

9. After-sales service(on-well service)

10. Transportation
11. FAQ
Q1: Are you manufacture?
A1: Yes, we are. We have been in drilling industry for 20 years and some of our products has enjoyed high reputation already, such as drilling tools, mud pump parts etc. Meanwhile, we trade other accessories to save customers' energy and shipping cost.

Q2: How to believe that our products have high quality?

A2: We are first-choice supplier of COSL, SINOPEC, CNPC since we established our company. Our products have been tested compared with some foreign famous brand on on-shore and off-shore drilling projects many times. Our products show their high-cost-performance always.

Q3: How can I choose the most suitable products ?

A3: Please let us know your needed products name and specifications. Our professional technical department will suggest the most suitable products to you according to your fact demands.

Q4: Could you supply samples?
A4: Yes, we could. We are glad to supply samples, but with sample fees.

Q5: Whether you can manufacture strange kind of products, even the model isn't clear ?
A5: Yes, we could. If you can provide the drawings, we can manufacture as per your drawings. If you don't have drawings, the samples are workable. After receiving your samples, we can measure and make a drawing, then manufacture as per the drawing.

Q6: What is your trade terms?
A6: EXW, FOB, CFR and CIF etc. all acceptable.

Q7: What's the Payment Terms ?
A7: 30% T/T after signing the contract and 70% balance before delivery.

Q8: What's the delivery time?
A8: For stocks in available, it could be shipped out within 3 days after receiving the prepayment. For products need to be produced, usually 35 working days.

Q9: What's the warranty time?
A9: Normally, it is 12 months after you receiving our products.
