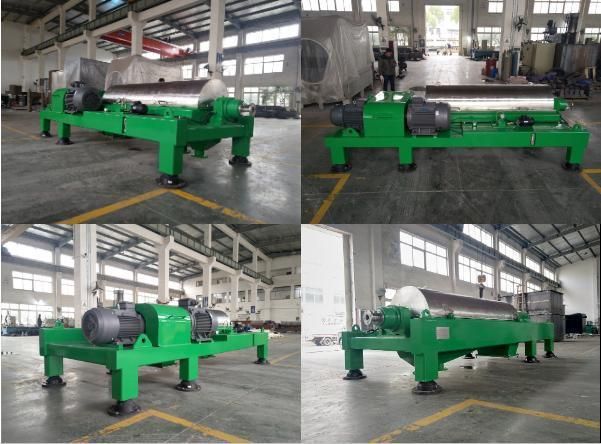

Reyes Horizontal Food Grade Palm Oil 3 Phase Decanter Centrifuge
Dalian Reyes Import & Export Co., Ltd.- After-sales Service：Video Online Support
- Warranty：1 Year
- Certification：CE
- Power Source：Electric
- Operation Pressure：Atmospheric Pressure
- Material：Stainless Steel
Base Info
- Model NO.：LW series
- Discharge Type：Self-Cleaning
- Bearing：SKF Bearing
- Bowl Material：Stainless Steel 304,316L,Duplex Steel
- Separation：3phase Separation
- Feature：High Efficiency
- Key Selling Points：Famous Brand PLC
- Transport Package：According to The Model
- Specification：According to the model
- Trademark：Reyes
- Origin：China
Description
5200*1600*1800There is a differential speed between the decanter bowl and the scroll, which is created by a gear unit on the
industrial decanter centrifuges. The differential speed determines the solid content in the outfeed.
Filling volume / Weir discs or overflow weir The clarified liquid flows to the cylindrical end of the bowl in the decanter centrifuge, from where it runs out through openings in the bowl cover. These openings contain precisely adjustable weir discs/weir plates by means of which the pond depth in the bowl can be set. The weir discs determine the filling volume of the bowl.
Advantages and limitations over competitive processes
Generally the decanter centrifuge has more advantages than disadvantages; however, there are some limitations when compared to other processes.
Decanter Centrifuges Advantages:
* Decanter centrifuges have a clean appearance and have little to no odor problems.
* Not only is the device easy to install and fast at starting up and shutting down but also only requires a small area for
operation compared to other competitive processes.
* The decanter centrifuge is versatile as different lengths of the cylindrical bowl section and the cone angle can be selected for different applications. Also, the system can be pre-programmed with various design curves to predict the sludge type, while some competitive processes, such as a belt filter press, cannot change the belt type to operate for different sludge types. Its versatility allows the machine to have various functions such as operating for thickening or dewatering.
* The machine can operate with a higher throughput capacity than smaller machines. This also reduces the number of units required.
* The device is simple to optimize and operate as it has few major variables and reliable feedback information.
* The decanter centrifuge has reduced labor costs compared to other processes, as it requires low continuous maintenance and operator attention.
* Compared to some competitive process such as the belt filter process, the decanter centrifuge has more process flexibility and higher levels of performance.
Decanter Centrifuges Limitations:
* The decanter centrifuges cannot separate biological solids with very small density differences, such as cells and viruses. A competitive process that is capable of separating these difficult-to-separate solids is the tubular-bowl centrifuge.
* The machine can be very noisy and can cause vibration.
* The device has a high-energy consumption due to high G-forces.
* The decanter centrifuge has high equipment capital costs. Hard surfacing and abrasion protection materials are required for the scroll to reduce wear and therefore reduce the maintenance of the scroll wear. How does it work
The feed product is pumped into the decanter centrifuges through the inlet. Feed goes into a horizontal bowl, which rotates. The bowl has is composed of a cylindrical part and a conical part. The separation takes place in the cylindrical part of the bowl. The fast rotation generates centrifugal forces up to 4000 x g. Under these forces, the solid particles with higher density are collected and compacted on the wall of the bowl. A scroll (also screw or screw conveyor) rotates inside the bowl at a slightly different speed. This speed difference is called the differential speed. This way the scroll is transporting the settled particles along the cylindrical part of the bowl and up to the end conical part of the bowl. At the smallest end of the conical part of the bowl, the dewatered solids leave the bowl via discharge opening. The clarified liquid leaves through a paring disc (internal centripetal pump).
3-phase separation with a decanterPacking & Delivery
1.Parking:standard wooden box
2.Spare parts :we supply some parts and accessories for free.
3.Electronic module:it is made up of electronic control cabinet.
4.Special tools:we supply a set special tools for free.Company Profile
Reyes Import & Export Co., Ltd. belongs to REYES international Group. We are the professional manufacturer of Centrifuge & Separator, Liquid Filling Machine and packing machine. With many years producing experience, our factory have become leading manufacturer with professional technical team and Independent after-sale department.
Our international trade department can supply the whole project service. With many years development, we have known which factories have strong product with competitive price and we have built long-term and stable cooperation relationship with them. Our main area are the food and pharmacy project. Our successful project are coconut oil production line, liquid filling production line, packing production line and the tablet press production line, soft gelatin production line and so on. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country: At present, our products have been exported to South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, the United States, Canada, Australia, Spain, Japan, Colombia, Romania and so on more than 30 countries
FAQ
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
