• Model NO.：YDDZ type, YC type
• Max.Capacity Kn(T)：1500(135)
• Drill O.D：98.4mm
• Top/Bottom Bore Dia：320-380mm
• Transport Package：Export Package
• Specification：145kg
• Trademark：BEYOND
• Origin：China
• Production Capacity：100sets,Month

Basic Info.

Model NO. YDDZ type, YC type Max.Capacity Kn(T) 1500(135) Drill O.D 98.4mm Top/Bottom Bore Dia 320-380mm Transport Package Export Package Specification 145kg Trademark BEYOND Origin China Production Capacity 100sets/Month

Product Description

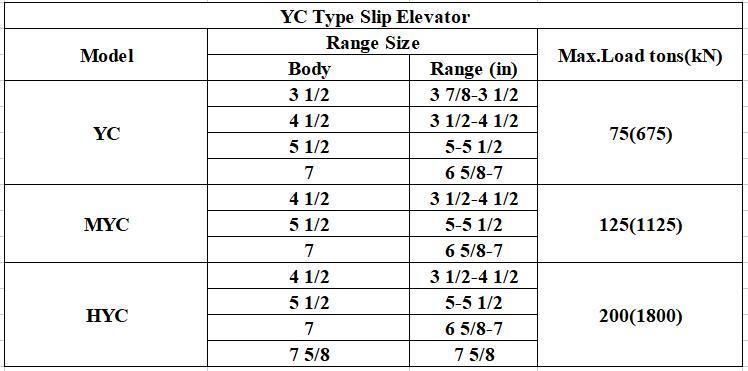

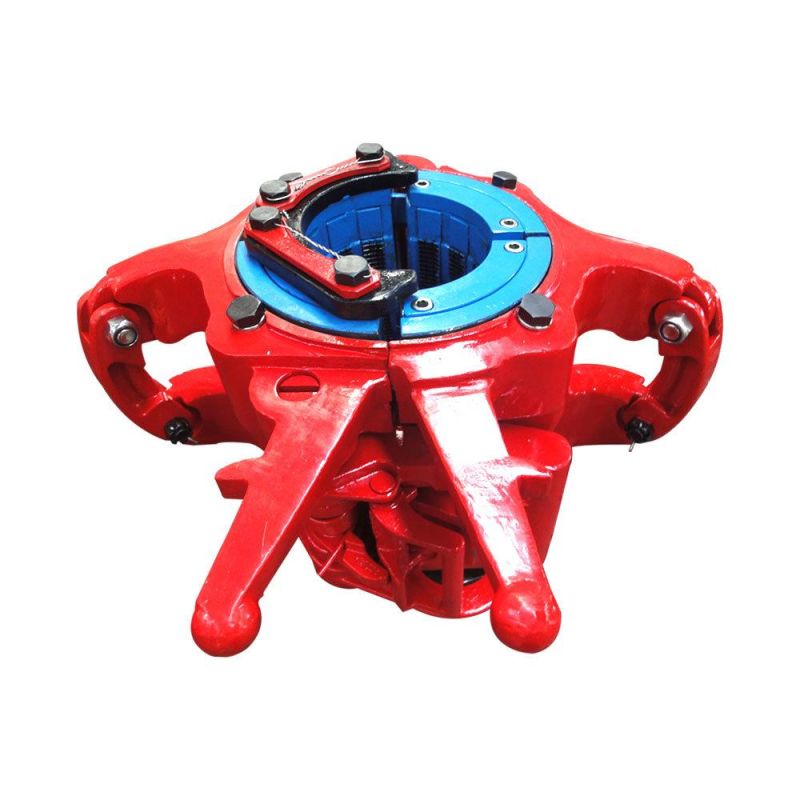

YC Slip type elevators are holding and hoisting tools for handling drill pipe, casing, tubing in oil and gas field.They are especially fit to integral joint tubing, non-coupled casing, electric submersible pump and other tubular goods. The Elevators are designed and manufactured according to API Spec 8C"Specification for Drilling and Production Hoisting Equipment"

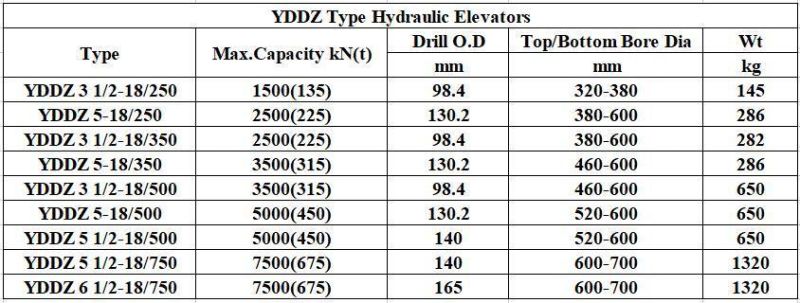

YDDZ Type Hydraulic Elevators is designed and manufactured on the basis of DDZ elevator. It only needs two pieces of power tubing in the well field.The driller only needs to press the button of "make up" or"break out" to realize the motivation of"make up" or "break out". It also equipped with the radio display mechanism of"make up" or "break out" for the driller to operate easily and visually. The development of this hydraulic elevator has greatly released the labor intensity and made another technical improvement of overall automation of top drive drill rig.
BEYOND was established in year 2016 and certified by ISO9001. Its main business is to supply drilling equipment and spares for overseas customers from different sectors, like petroleum, water well, and HDD.
BEYOND products cover but not limited to: oil drilling & workover rig, water well drilling rig, horizontal directional drilling rig, mud pump and spares, solid control system & equipment, and other different drilling materials.
By continuously optimized supply chain, strict quality control and thoughtful customer service, BEYOND focus to offer long-term cooperation value for all of our customers. We can customize the product supply as per its on-site conditions, and we can offer overseas after-sale services with our strong technical support.
Thanks to our professional services, quality products, fast delivery and competitive prices, we have built up a very good reputation among our customers. Our products are serving for customers from more than 30 countries, like USA, Venezuela, Argentina, India, Kazakhstan, Uzbekistan, Azerbaijan, Romania and Egypt etc..
With "Professional & Efficient, Customer Focus, Win-win Cooperation" as its business principle, BEYOND believes we will become your trustable and reliable partner in China. We warmly welcome you to be our customers to establish good cooperation and create a bright future with us together. To choose BEYOND, You will get beyond your expectations and we will not let you down.
