• Model NO.：IADC 537
• Condetion：New
• Application：Energy & Mining, Well Drilling
• Video Outgoing-Inspection：Provided
• Brand Name：Speedmade
• Machine Type：Drilling Tool
• Processing Type：Forging
• Size：3 7,8′′-32′′
• Bearing Type：Rubber Sealed Bearing,Metal Bearing
• Usage：Well Drilling
• Machinery Test Report：Provided
• Place of Origin：China
• API：2 3,8"~7 5,8"
• Weight(Kg)：450
• Formation：Soft, Medium Soft, Hard, Medium Hard, Very Hard
• Applicable Industries：Building Material Shops, Construction Works , Ener
• Transport Package：Original Package with Wooden Cases
• Specification：70*80*60CM
• Trademark：speedmade
• Origin：China
• HS Code：82071990
• Production Capacity：2000piece,Pieces Per Month

Basic Info.

Model NO. IADC 537 Condetion New Application Energy & Mining, Well Drilling Video Outgoing-Inspection Provided Brand Name Speedmade Machine Type Drilling Tool Processing Type Forging Size 3 7/8′′-32′′ Bearing Type Rubber Sealed Bearing/Metal Bearing Usage Well Drilling Machinery Test Report Provided Place of Origin China API 2 3/8"~7 5/8" Weight(Kg) 450 Formation Soft, Medium Soft, Hard, Medium Hard, Very Hard Applicable Industries Building Material Shops, Construction Works , Ener Transport Package Original Package with Wooden Cases Specification 70*80*60CM Trademark speedmade Origin China HS Code 82071990 Production Capacity 2000piece/Pieces Per Month

Product Description

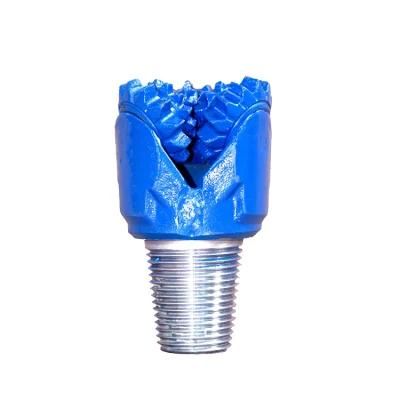

Tricone bits mian model

IADC	Rock formation	WOB  (KN/mm)	PRM(r/min)
417/427/437	Low compressive strength, high drill-ability and extremely soft formation, like shale, clay, sandstone, conglomerate etc	0.35~0.90	140~70
447	Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, plaster etc.	0.35~1.00	140~60
517	Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, etc	0.35~1.05	120~50
527	Soft formation with low compressive, like Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, anhydrite etc.	0.35~1.05	120~50
537/547	Low compressive strength, medium hard formation with hard abrasive interlayer, like Hard shale, anhydrite, soft limestone, sandstone, dolomite with mezzanine, etc.	0.50~1.05	110~40
617/627	High compressive strength, medium hard and thick hard interlayer, like hard shale, limestone, sandstone, dolomite, etc.	0.50~1.05	80~40
637/737	High compressive strength, medium hard and high abrasive formation, like limestone, dolomite, sandstone, chert, etc.	0.7~1.20	70~40

Note: Please do not select the maximum value for WOB and rotational speed at the same time
Cutting Structure

The wear-resistance of the teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for the steel tooth bit.The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit

Gauge Structure
Multiple gague protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone,tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capacity and bearing life.

Bearing Structure
High precision journal bearing with two thrust faces,Balls lock the cone.Hardfaced head bearing surface.Cone bearing inlaid with friction-reducing alloy and then silver-plated.Abrasion resistance and seizure of the bearing are improved.and suitable for high rotary speed

Seal and Lubrication
The advanced metal seal package consists of two metal seals and two elastic energizers.Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force,and achieves the bearing seal.In the drilling,metal seals are relatively dynamic,and the energizers are static.This will improve the reliability and durability of bearing seal.The pressure compensator system and advanced grease can greatly increase the lubricating reliability.

-COMPANY PROFILE-

SPEEDMADEDRILL is a leader in the manufacture and development of many kinds of  bits in China. We provide the best quality PDC coring drill, DTH drill, Tri drill bits etc to the market, all types of non-coring or coring drill traces. Our drill bits are used for well drilling, mining and construction contractors. Our drill bit has been tested and verified by time, with wear resistance and fast drilling speed. Different drill bits can be customized according to different rock formations. The engineering time is greatly shortened, and the maximum performance is exerted in the operation during drilling. Our products are durable and reliable. Our products are the preferred drill bits for drilling engineers in many countries because of our precise design and efficient drilling during use.

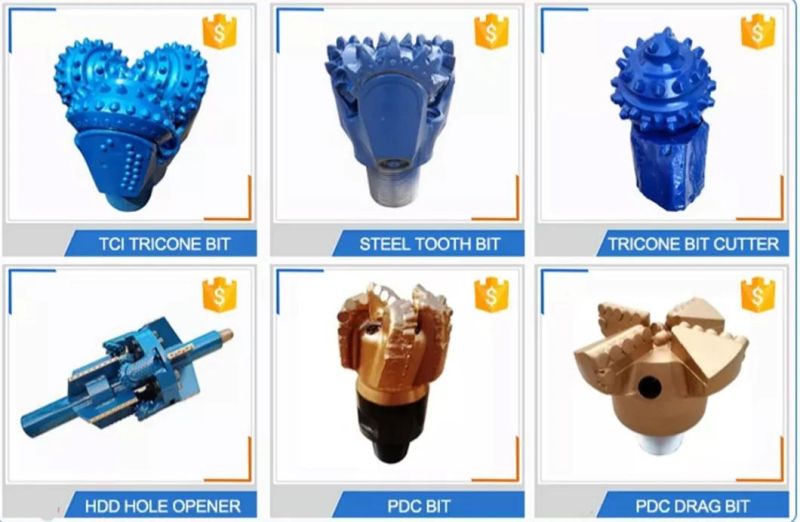

Main product

-WHY CHOSE US-

--The first-class engineers of tricone bits and PDC bits
--Advanced technology and Equipment, International standard.
--R&D center for rock drilling tools, high precision CNC machines, SGS&ISO Certified.
--10+ Years & 40+ Countries of service experience.
--Optimized solutions for the various requirements.

DIY customization: please provide your rock formation information or detailed size drawings.

Free samples: some samples can be provided free of charge.

Payment:T/T L/C,D/A,D/P,Western Union,MoneyGram.

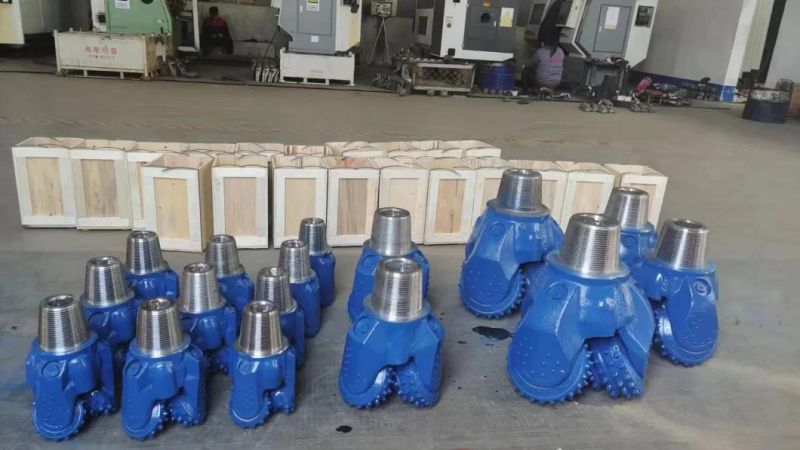

Packaging

Wood Box Fumigation Tray if necessary Other special package can be applied according to customer's need

Delivery

Prepared to deliver within 1 week, if in stock Depends on order quantity, when out of stock Transportation:By sea or air

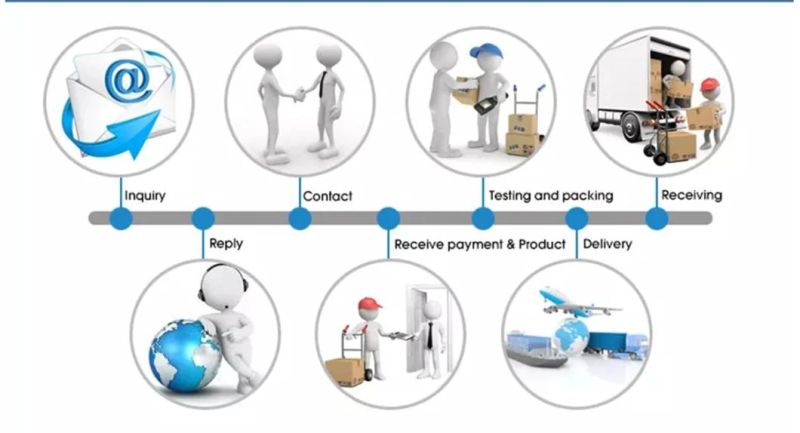

Purchase process
