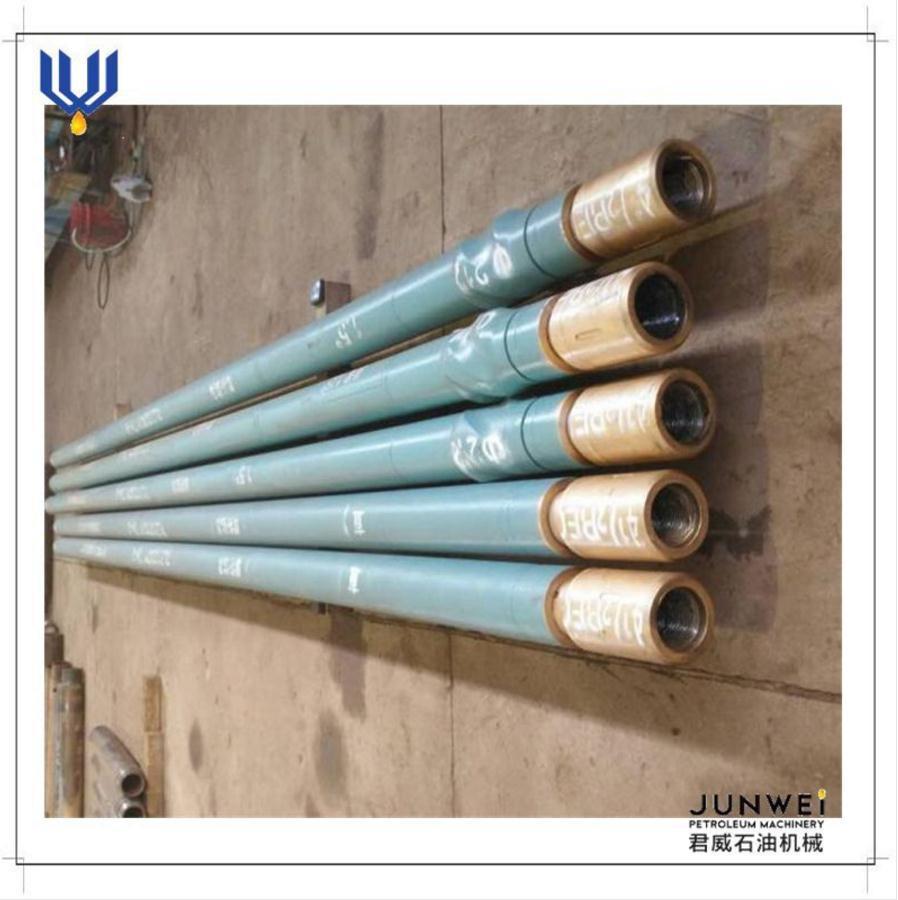

Downhole Motor for Oil Well Drilling Equipment Tool with Fast shipment
Cangzhou JW Petroleum Machinery Co., Ltd.- Manufacturing Process：Casting
- Surface Treatment：Polishing
- Operation Pressure：Atmospheric Pressure
- Material：Stainless Steel
- out Diameter：89mm O3 1,2"
- Bit Size：114-149mm
Base Info
- Model NO.：5LZ172x7.0
- Connected Thread：2 3,8reg
- Lobe：5:6
- Stage：4
- Flow Rate：255-766 Lpm
- Rotory Speed：108-325 Rpm
- Max Pressure Loss：4.52 MPa
- Max Torgue：1526 N.M
- Max Bearing Presure：35 Kn

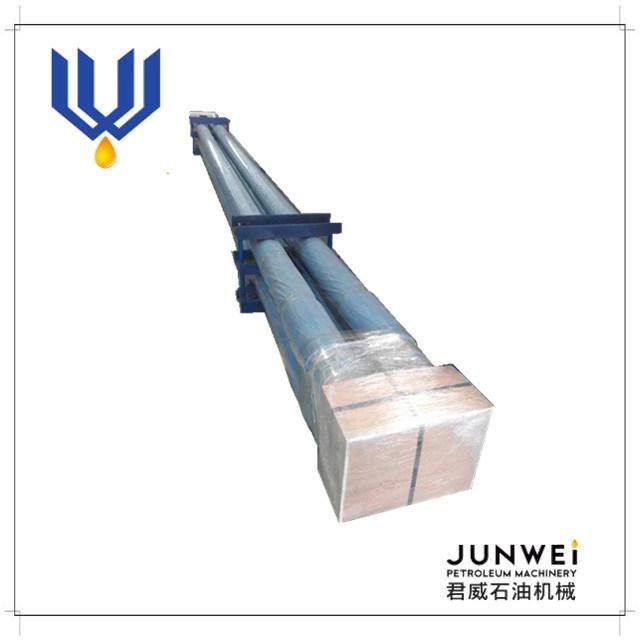

- Transport Package：Sdandard Packing for Downhole Motor
- Specification：89mm
- Trademark：JW
- Origin：China
- HS Code：8431431000
- Production Capacity：300piece,Month
Description
Hole Size
Input
Flow
Rate
Pressure
Loss
Bit
Speed
Working
Torque
Delay
Dynamic
Torque
Output
Power
Max
Drilling
Weight
Joint Thread
Length
Unit
mm
In
L/S
Mpa
r/min
N.m
N.m
KW
KN
In
In
mm
5LZ73×7.0
83-121
3 1/4-4 3/4
2-4
3.2
80-160
615
1077
5.8-11.5
25
2 3/8REG
2 3/8REG
3423
9LZ89×7.0
105-143
4 1/8-5 5/8
3-8
3.2
147-392
504
882
8.64-23
30
2 7/8REG
2 7/8REG
2911
5LZ95×7.0
114-150
4 1/8-5 7/8
5-12
3.2
140-320
710
1240
10.5-25
40
2 7/8REG
2 7/8REG
3920
5LZ120×7.0
152-200
6-7 7/8
8-16
3.2
80-180
1850
3200
23-47
106
3 1/2REG
3 1/2REG
5039
5LZ165×7.0V
245-244
8 1/8-9 5/8
18-30
3.2
111-167
4440
7770
57.6-86.4
160
4 1/2REG
4 1/2REG
7408
5LZ165.5×7.0V
215-244
8 1/8-9 5/8
18-30
4.0
120-180
5135
8987
72-108
180
4 1/2REG
4 1/2REG
7748
5LZ172×7.0V
215-244
8 1/8-9 5/8
18-30
4.0
120-180
5135
8987
72-108
180
4 1/2REG
4 1/2REG
7391
5LZ172.5×7.0V
215-244
8 1/8-9 5/8
20-35
4.0
115-180
6452
11299
86.4-151.2
200
4 1/2REG
4 1/2REG
8031
7LZ172.5×7.0V
215-244
8 1/8-9 5/8
20-35
4.0
75-180
6527
11420
59.5-108.6
160
4 1/2REG
4 1/2REG
8631
5LZ185×7.0
215-244
8 1/8-9 5/8
20-35
4.0
184
5436
8154
80-140
240
4 1/2REG
6 1/2REG
8120
5LZ185.5×7.0
215-244
8 1/8-9 5/8
20-35
4.0
173
5939
8908
80-140
240
4 1/2REG
6 1/2REG
8120
5LZ197×7.0
244-311
9 1/8-12 5/8
20-40
3.2
61-122
14118
14118
57.6-115.2
240
5 1/2REG
6 5/8REG
7998
5LZ197.5×7.0
244-311
9 5/8-12 1/4
20-40
4.0
85-160
12640
12640
72-144
260
5 1/2REG
6 5/8REG
8598
7LZ203×7.0
244-311
9 5/8-12 1/4
20-40
3.2
70-155
12289
12289
57.6-126.7
240
5 1/2REG
6 5/8REG
7798
5LZ203.5×7.0
244-311
9 5/8-12 1/4
20-40
4.0
70-155
8778
15362
72-158.4
260
5 1/2REG
6 5/8REG
8598
5LZ244×7.0
311-445
12 1/2-17 1/2
50-75
3.2
91-136
15124
26468
144-216
360
6 5/8REG
7 5/8REG
8635
7LZ244.5×7.0
311-445
12 1/2-17 1/2
50-75
4.0
91-136
18905
33085
180-270
450
6 5/8REG
7 5/8REG
9235
Our Company

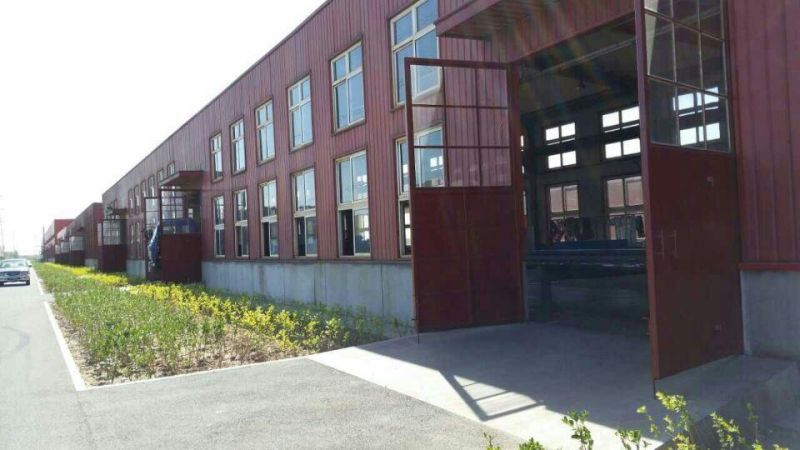

Established in 2005, Cangzhou JW Petroleum Machinery Co.,Ltd is a professional technology-oriented manufacturer specialized in the production downhole motor and some other drilling tools and fishing tools. Which located at the center of Beijing-Tianjin-Hebei-Shandong-Henan-Region which is adjacent to National Expressway No.106,166km away from Beijing, 110km away from Tianjin and 35km away from Baiyangdian, the Pearl of Huabei Area. More convenient transport, faster delivery, With over 10 years experiences, our mission at JW is to maintain at the top in product integrity and customers satisfaction worldwide. We hope you consider us for your future needs.
With professional producing technology and honest management, JW people will create brilliant future with new and old customers together.
