• Model NO.：51,2"x 8 1,2"
• Sample：Available
• ODM：Workable
• OEM：Acceptable
• Drawings：Available
• Color：Red,Black
• Delivery：Base on Quantity
• Markings：Available
• Height：200mm
• Blades：6PCS
• Package：Wood Cases
• Transport Package：Wood Cases
• Specification：5 1,2"*8 1,2"
• Trademark：ZS
• Origin：Henan
• HS Code：843143100
• Production Capacity：10000PCS,Month

Model(in)Hooping In-Dia.(mm)
Hooping
thickness
 (mm)
Hooping height(mm)Total Length(mm)Max. Out-Dia.(mm)
Spring
Pieces
5-1/2*8-1/2142-1483-590-120650±50225±557*9-5/8181-1863-590-120650±50255±567*8-1/2181-1863-590-120650±50235±568-5/8*12-1/4223-2283-590-120650±50330±589-5/8*12-1/4250-2553-590-120650±50330±5810-3/4*12-1/4274-2763-590-120650±50330±5913-3/8*17-1/2342-3473-590-120650±50450±51118-5/8*24476±13-590-120600±50610±51220*26510±13-590-120600±50660±512

Weld casing centralizer
Model(in)Hooping In-Dia.(mm)
Hooping
 thickness
mm)
Hooping height(mm)Total Length(mm)Max. Out-Dia.(mm)
Spring
Pieces
5-1/2*8-1/2142-1485-750-60650±50225±556*8-1/2154-1585-750-60650±50255±5513-3/8*17-1/2342-349850-60580450±5620*26510-518850-60650±50670±510

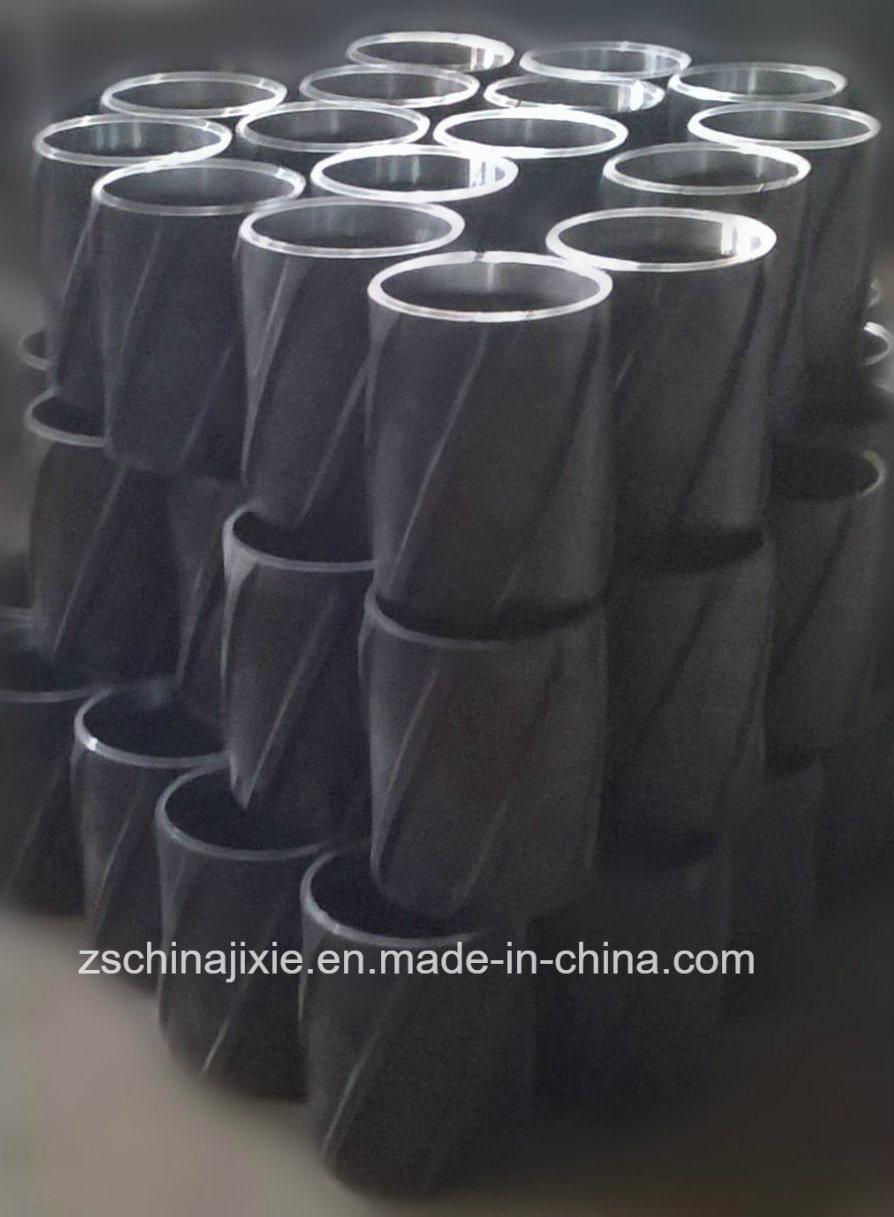

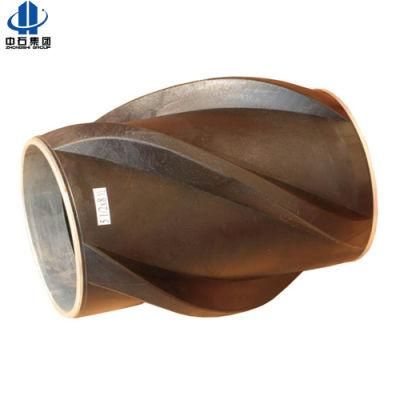

Rigid casing centralizer is used in deviated wells and horizontal wells. There are several blades on the rigid centralizer that can keep casing from contacting the wellbore wall.

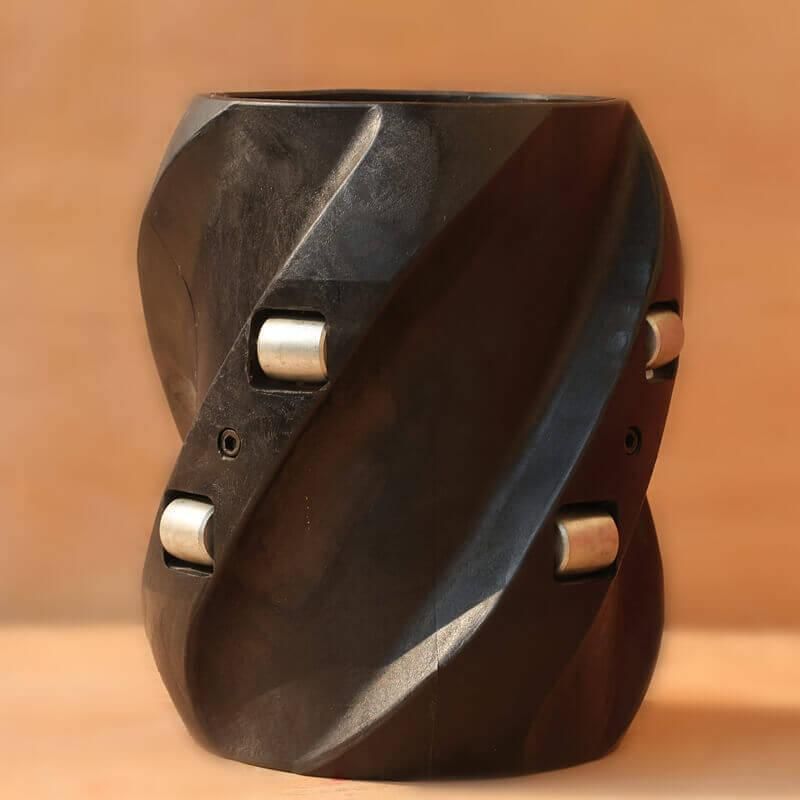

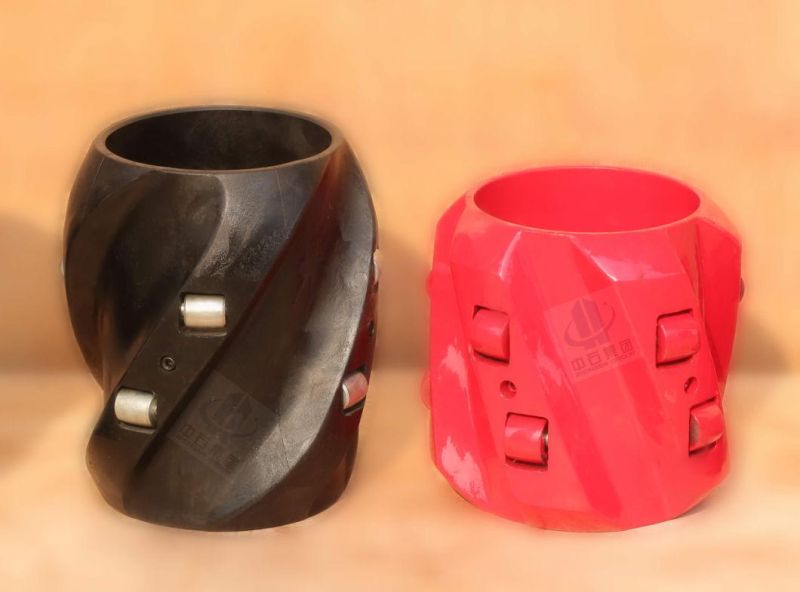

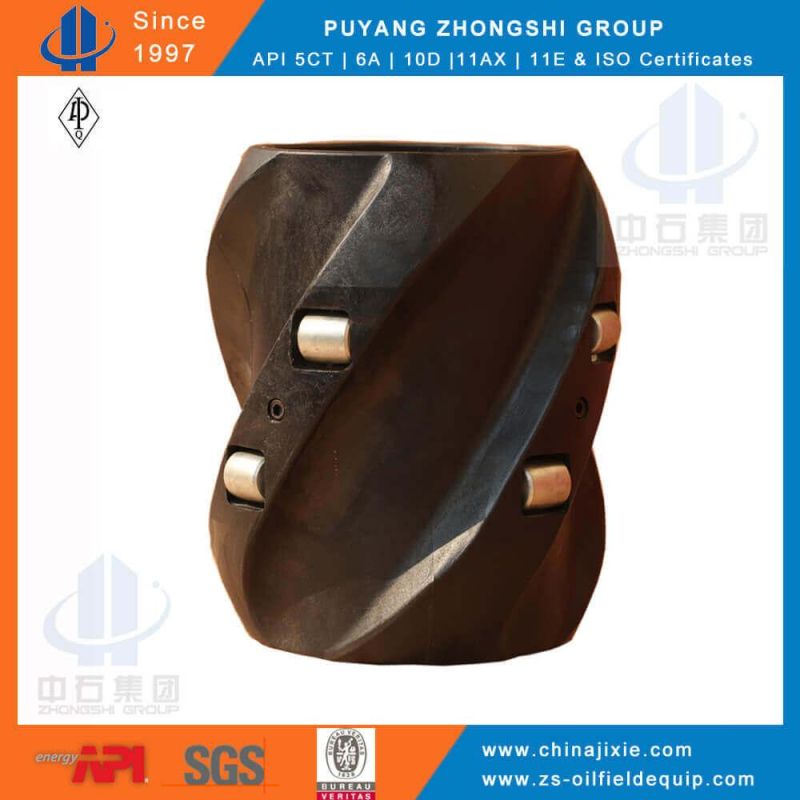

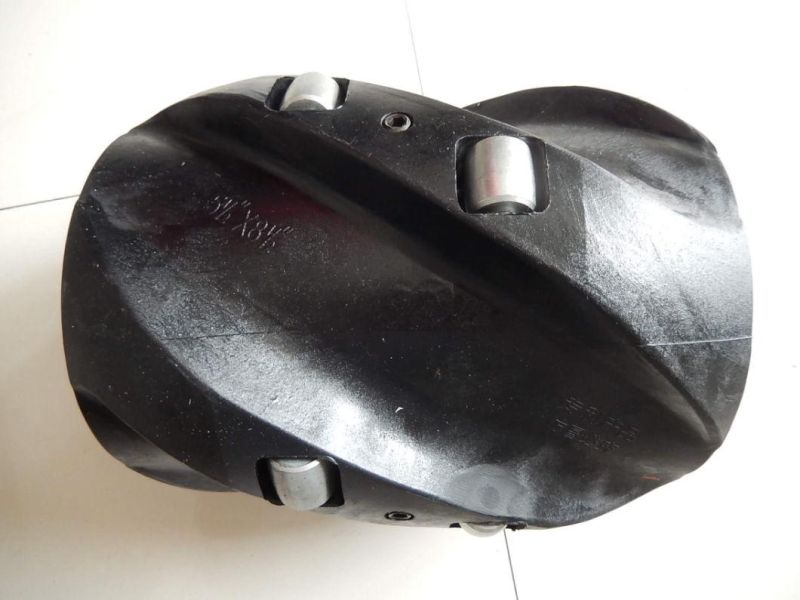

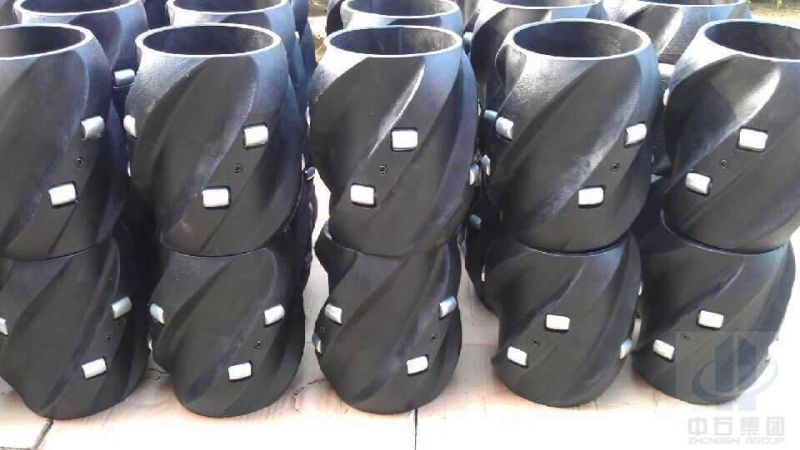

Roller rigid centralizer which is most suitable for highly deviated wells and horizontal wells has two or three rollers in each blade. It can change slipping friction to rolling friction, so it greatly reduces the friction between casing and wellbore wall and let casing go to desired position smoothly.
Features:
Available with straight blade centralizer and spiral blade centralizer
Cast steel, cast aluminum and light weight casing rigid centralizer are available
Easy to install
Can move on casing freely, also can be fixed on casing by tighten screws.
