Petroleum Equipment & Machinery

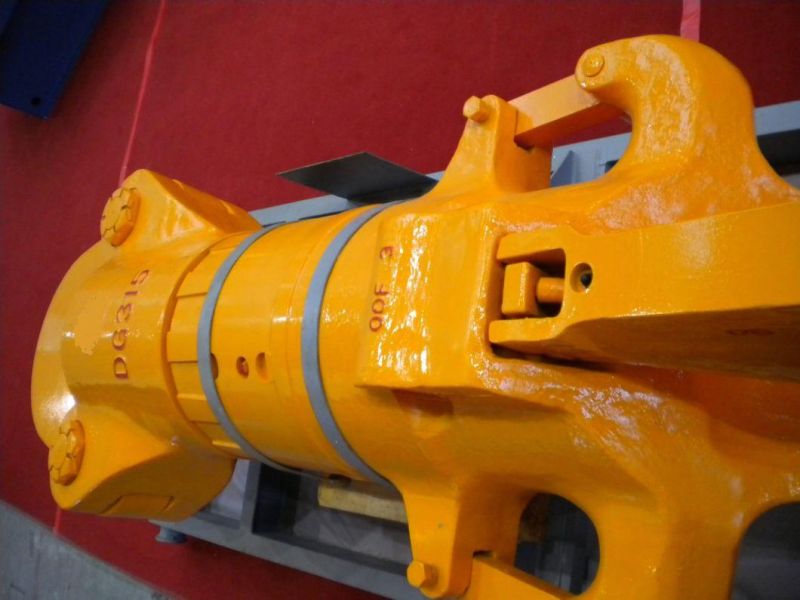

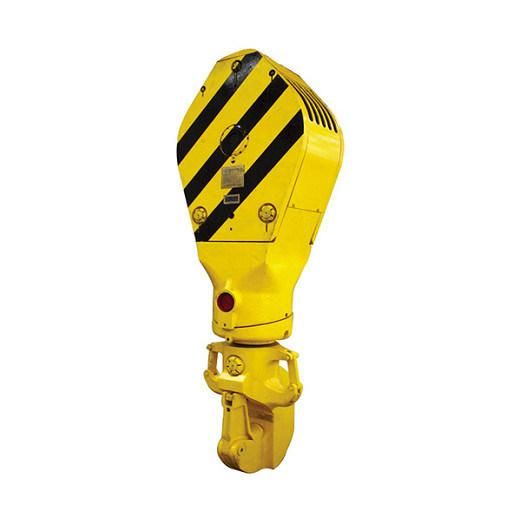

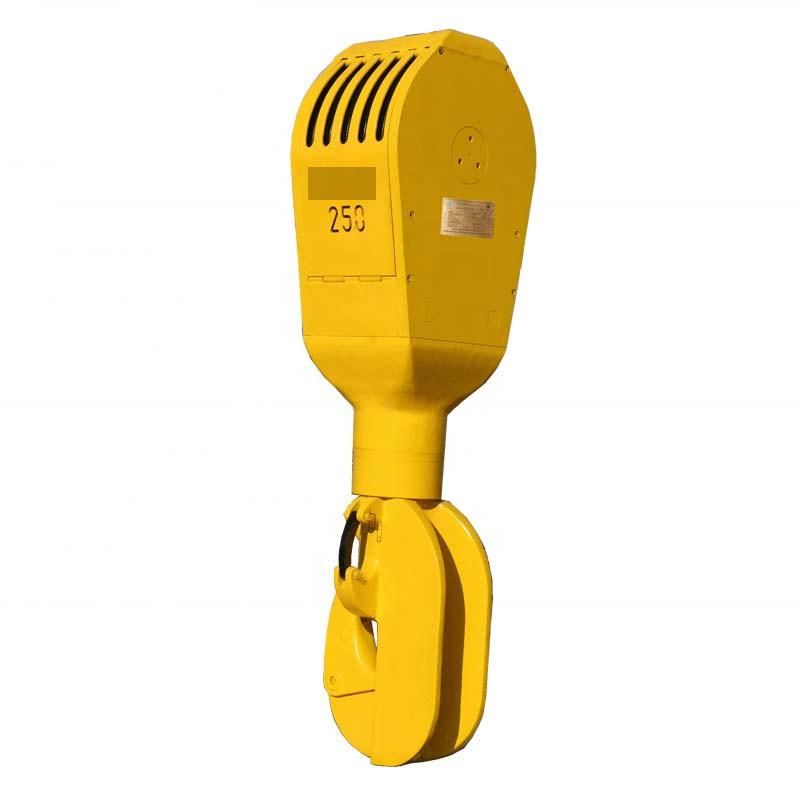

Block and Hook for Drilling Rig API 8c

Shandong Beyond Petroleum Equipment Co., Ltd.
  • After-sales Service:After Service Accepted
  • Warranty:After Service Accepted
  • Manufacturing Process:Forging
  • Surface Treatment:Spray-Paint
  • Operation Pressure:Atmospheric Pressure
  • Material:Alloy

Base Info

  • Model NO.:DG315
  • Appliction:Oilwell,Water Well
  • Transport Package:Customized
  • Specification:According to model
  • Trademark:Beyond
  • Origin:China
  • Production Capacity:50000PS,Year

Description

TypeMax. hook loadMajor-hook openingSpring travelOverall dimension(L*W*H)WeightDG1701700KN190mm
7.5 in
180mm
7 1/8 in
2498*742*678mm
98*29*27 in
2100kg
4620Ib
DG2252250KN190mm
7.5 in
180mm
7 1/8 in
2545*780*750mm
100*30.7*29.5 in
2180kg
4806Ib
DG3153150KN220mm
8.7 in
200mm
7 7/8 in
2953*890*830mm3410kg
7520Ib
DG4504500KN220mm
8.7 in
200mm
7 7/8 in
2953*890*880mm
116.3*35*34.6 in
3500kg
7720Ib
 Block and Hook for Drilling Rig API 8cBlock and Hook for Drilling Rig API 8cBlock and Hook for Drilling Rig API 8c
Block and Hook for Drilling Rig API 8c

BEYOND is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.

China has become main equipment supplier for oil production countries, but Chinese equipment has some special features different with European and American countries, also there exits big language and cultural difference between China and other countries, so it has become one big challenge for the overseas customer to get the exact equipment and parts they need in a short time.

However, BEYOND takes root in China, and has very good cooperation relationship with most of famous factories, plus strong technical support and good advantage in language. Therefore, BEYOND is quite capable to help the customer to solve this challenge.
