• Model NO.：ZT150
• Motor Power：7.5kw
• Diameter of The Suction Pipe：50mm
• Weight：560kg
• Transport Package：Wood Box
• Trademark：ZHONGTUO
• Origin：China
• HS Code：8413400000
• Production Capacity：50piecces,Month

Basic Info.

Model NO. ZT150 Motor Power 7.5kw Diameter of The Suction Pipe 50mm Weight 560kg Transport Package Wood Box Trademark ZHONGTUO Origin China HS Code 8413400000 Production Capacity 50piecces/Month

Product Description

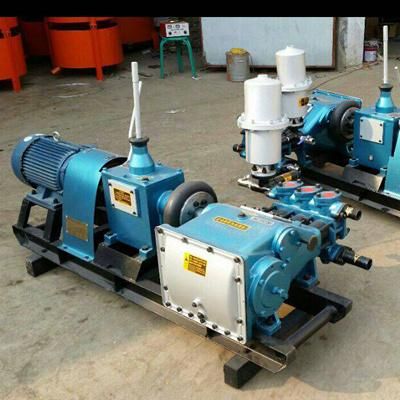

BW150 drilling Mud pump:

BW150 mud pumpis typically positive displacement pumps, otherwise known as reciprocating pumps. Positive displacement pumps are able to provide a constant flow rate of fluid regardless of the pump's outlet pressure. Duplex, triplex, and quintuplex pumps are all used as drilling mud pumps.

BW150 mud pump is driven either by an engine or motor. Depending on fuel and energy available on or near a drilling rig, electric motors or diesel engine are common. In some cases, natural gas or other fuel types may be used. Drilling mud pumps are packaged on skid type units which allow for easy removal and transportation from site to site. Other methods are available but are less common.

A mud pump system generally includes a charge pump. Due to the high viscosity fluid, additional pressure is commonly needed on the inlet to the mud pump to prevent cavitation.
BW series of BW150 mud pump well drilling is a single cylinder or double cylinder reciprocating pump, with single, double action, plunger and piston and other different structural forms. It is mainly used in geological drilling, which supplies the function of diluting clay, mud and circulation with the cooling drilling tools of the rinse fluid (mud or water). It is also used to supply the rinse fluid in the hole drilling rig. Chill the cuttings of drilling tools. The mud can also be injected into the coal seam fire extinguishing and sealing grouting. In ground engineering, it can also be used for construction reinforcement, plugging water grouting and the lubrication grouting between pipe surface and soil layer during pipe jacking construction.

parameters

Maximum flow rate	150L/min
The maximum pressure	70kg/cm2
Drive power	7.5kw
The diameter of the suction pipe	50mm
Drain pipe diameter	32mm
Weight	560kg

FAQ:

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2:  No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equipment.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.

Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

Our Company Information:

We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience at mining equipment, main products include:

Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine

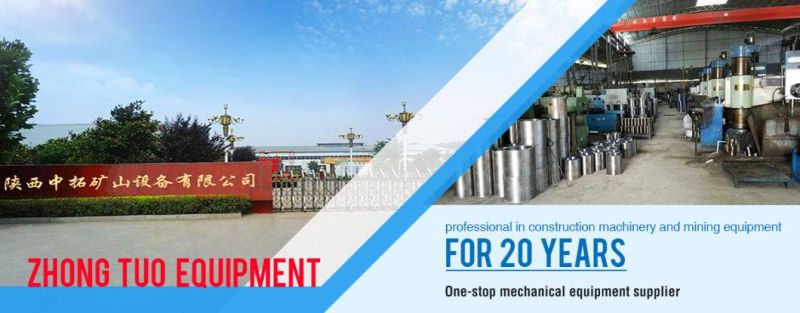

About Our Factory:


About the products:

Packing and Shipping:

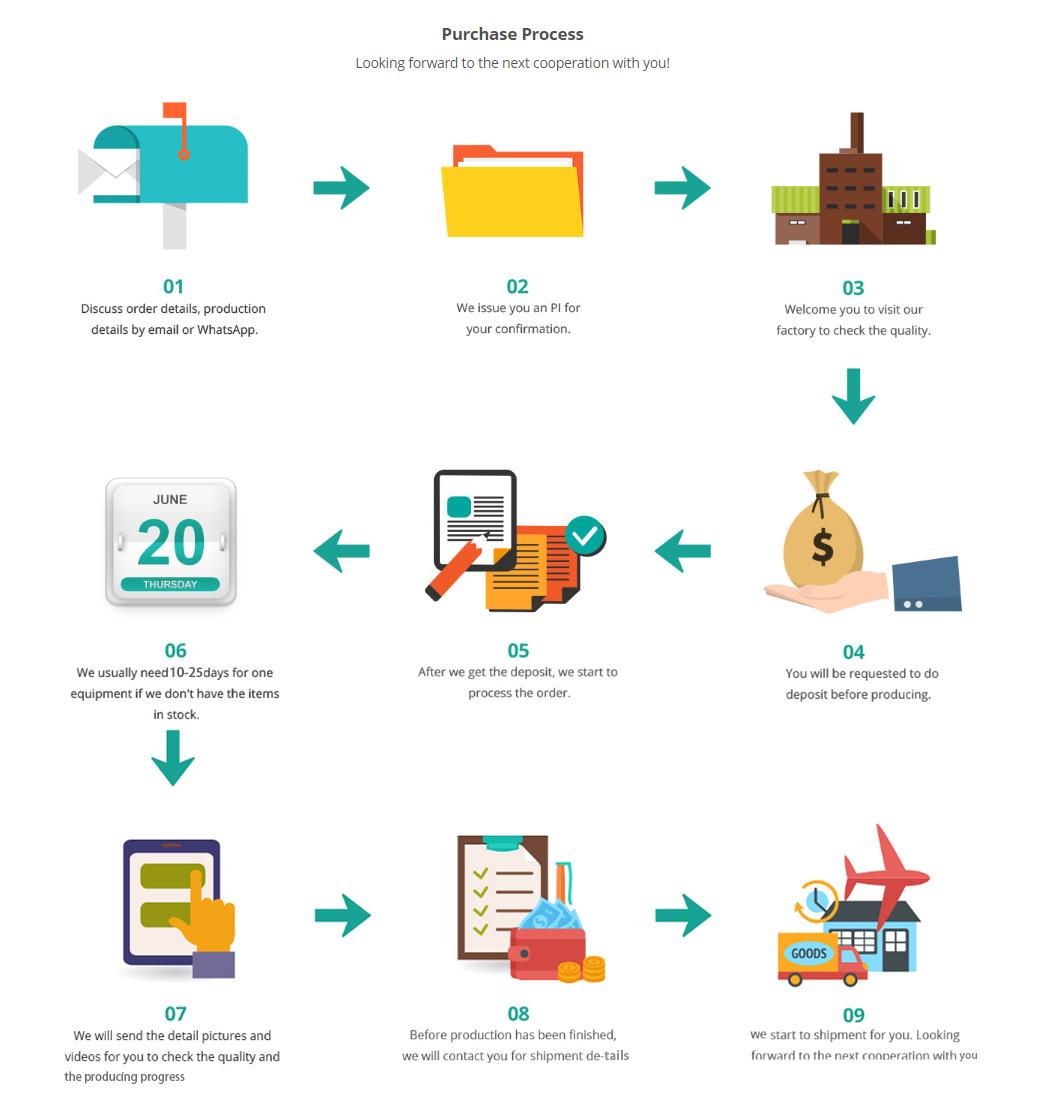

Purchase Process:

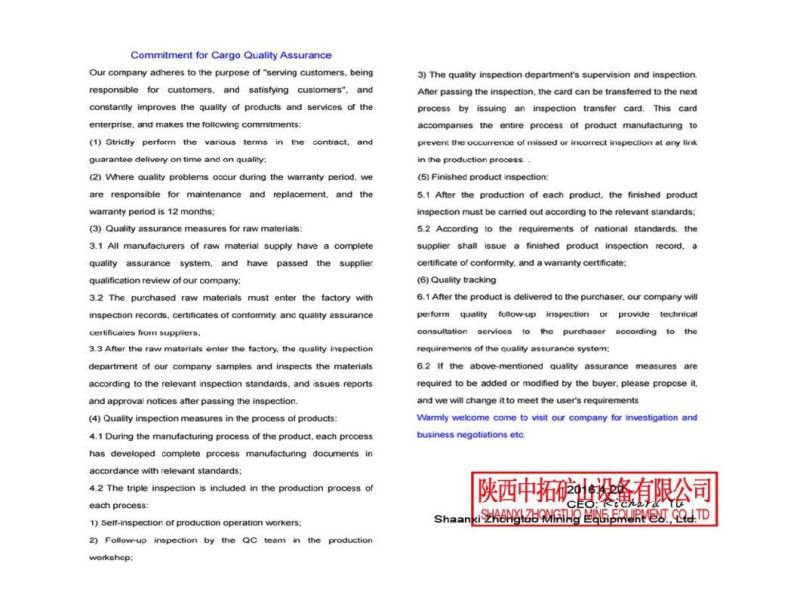

About the Quality:

Others:


Why you choose us:

1. We are a real factory offering products and provide free technical advice.
2. Company in business for many years and served Over 50 countries customers.
3. All machine with CE, ISO,SGS certificate. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
