• Model NO.：H801A-500
• Certification：PEI, CE, ISO
• Transport Package：Carton Packing
• Specification：API, CE, SGS, PEI, ISO
• Trademark：JIALONG
• Origin：Wenzhou, Zhejiang, China
• HS Code：8481100090
• Production Capacity：5000set,Month

Basic Info.

Model NO. H801A-500 Certification PEI, CE, ISO Transport Package Carton Packing Specification API, CE, SGS, PEI, ISO Trademark JIALONG Origin Wenzhou, Zhejiang, China HS Code 8481100090 Production Capacity 5000set/Month

Product Description

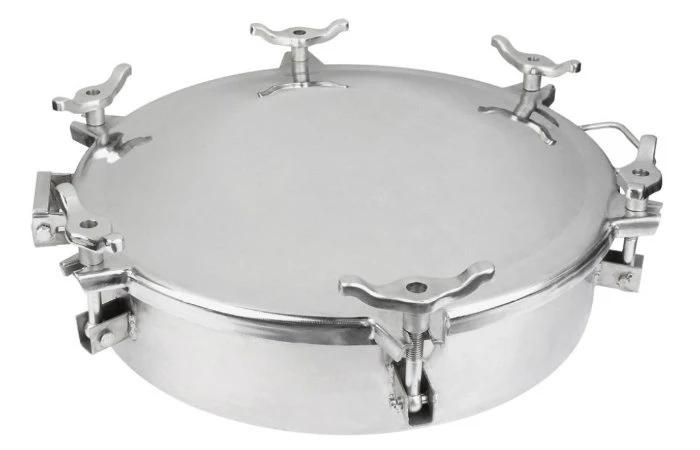

Welding type stainless steel 304/316 manhole coverManhole Cover is installed on the top of the tanker, with the designed of fully tight sealing and rotated handles to make sure its tightness. The main plate is stamped of Stainless Steel. H801A is single plate, H801B is double plates which can keep the inside warm. This kind of manhole with the under collar can be directly welded into the tanker.
Specifications
1. Installment mode: Welding
2. Nominal diameter: 20"
3. Working pressure: 0.3Mpa
4. Material: Carton steel/ Stainless steel

Benefit & Feature
* Grinding and Polishing
Stainless steel' surface is grinded and polished to make it more pleasing and longer performing.

* Various Sealing Gaskets
To satisfy different demands of users.

* Teflon Resin Coated Sealing Gasket
Temperature Range: - 50 ~ 200° C

* Fluoro Rubber
Temperture Range: -20 ~120° C

* Height of the Collar
Can be made by user's design.

Customize
* The main material can be Carton Steel, 304 Stainless Steel, 316 Stainless Steel, or up to users' demand.
* The standard quantity of Handles is 6, but it can be made into 8 according to different demands. The working pressure is 0.4Mpa.
* The Sealing Gasket is chosen according to different usages, Teflon Resin Coated one, Fluoro Rubber one or Buna-N one.
